NI (National Instruments) PXIe-4136 PXIe, ±200 V, ±1 A DC, 20 W DC, 1 pA System PXI Source Measure Unit

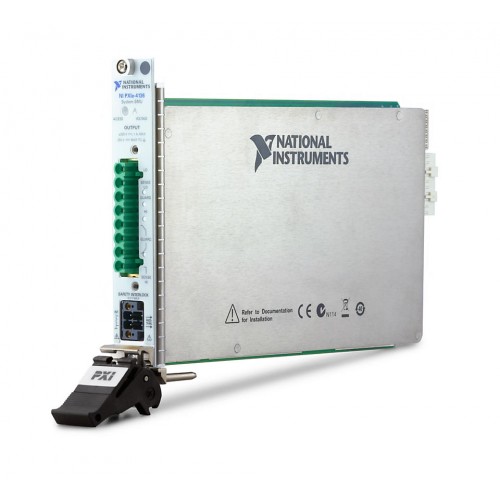

1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-4136

The NI PXIe-4136 is a single-channel PXI Express source measure unit with ±200 V and ±1 A DC ranges and 1 pA current sensitivity. It provides up to 20 W DC source power and 12 W DC sink power.

ManufacturerNI (National Instruments)
ModelPXIe-4136
Part Number783760-01
Product TypePXIe, ±200 V, ±1 A DC, 20 W DC, 1 pA System PXI Source Measure Unit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4136

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Sensitivity1 pA
Number of SMU Channels1
Voltage Range-200 V to 200 V
Max DC Sink Power12 W
Max DC Source Power20 W
SourceAdaptNo
