NI (National Instruments) PXIe-4135 PXIe, ±200 V, ±1 A DC, ±3 A Pulsed, Up to 40 W DC, 10 fA Precision System PXI Source Measure Unit
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-4135

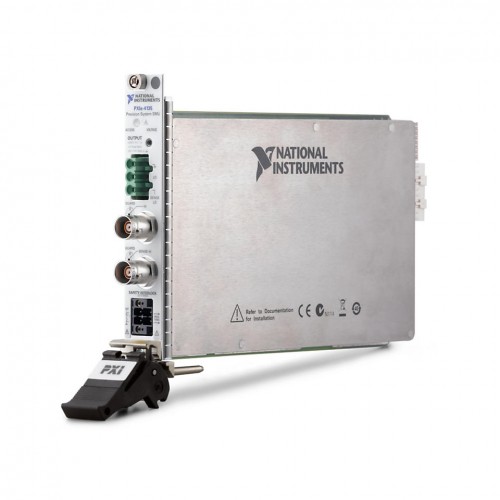

The NI PXIe-4135 is a single-channel precision source measure unit for PXI Express systems. It provides ±200 V, ±1 A DC and ±3 A pulsed ranges, up to 40 W DC, and 10 fA current sensitivity.

ManufacturerNI (National Instruments)
ModelPXIe-4135
Part Number783762-01 · 783762-02
Product TypePXIe, ±200 V, ±1 A DC, ±3 A Pulsed, Up to 40 W DC, 10 fA Precision System PXI Source Measure Unit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4135

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Sensitivity10 fA
Number of SMU Channels1
Voltage Range-200 V to 200 V
SourceAdaptYes
DC Current Range-1 A to 1 A
Pulsed Current Range-3 A to 3 A
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4135 combines precision sourcing and measurement in a single SMU channel with PXI Express bus connectivity. NI lists the model under part numbers 783762-01 and 783762-02.

Its analog-to-digital converter technology and native triaxial connectors support current resolution of 10 fA and high-speed acquisitions up to 1.8 MS/s. SourceAdapt allows transient response to be tuned to the load characteristics.

  • Single-channel precision source measure unit with PXI Express connectivity.
  • Voltage range from -200 V to 200 V.
  • Separate DC and pulsed current ranges: ±1 A DC and ±3 A pulsed.
  • 10 fA current sensitivity for low-current measurements.
  • SourceAdapt technology for tuning transient response to load characteristics.
Verified specifications

Technical data

Verified product specifications.

Current Sensitivity10 fA
Number of SMU Channels1
Voltage Range-200 V to 200 V
SourceAdaptYes
DC Current Range-1 A to 1 A
Pulsed Current Range-3 A to 3 A
Bus ConnectorPXI Express
Supported Hardware PlatformPXI
Bus ConnectionPXI Express
NI part numbers783762-01, 783762-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-4135

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
