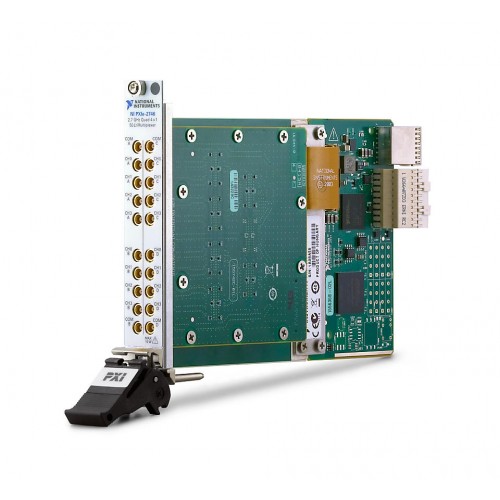

NI (National Instruments) PXIe-2746 PXIe, 2.7 GHz, Quad 4x1 PXI RF Multiplexer Switch Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-2746

The NI PXIe-2746 is a quad 4x1 RF multiplexer switch module with a PXI Express interface. It provides 2.7 GHz switch bandwidth and 50 ohm characteristic impedance using electromechanical relays.

ManufacturerNI (National Instruments)
ModelPXIe-2746
Part Number780587-46
Product TypePXIe, 2.7 GHz, Quad 4x1 PXI RF Multiplexer Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2746

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth2.7 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss2.5 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-2746 provides four banks of 4x1 RF multiplexing within the NI PXI platform, using a PXI Express bus connection. Its electromechanical switching paths provide a 2.7 GHz bandwidth with 50 ohm characteristic impedance.

The module has a listed maximum insertion loss of 2.5 dB and maximum switching voltage of 30 V AC or DC. Consult the model-specific specifications and user manual for operating limits and connection details before integration.

  • Quad 4x1 RF multiplexer configuration with four banks.
  • 2.7 GHz switch bandwidth with 50 ohm characteristic impedance.
  • PXI Express bus connection and electromechanical relays.
  • Maximum insertion loss of 2.5 dB.
  • Maximum switching voltage of 30 V AC and 30 V DC.
  • 1-wire mode with row access and no termination.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth2.7 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss2.5 dB
Number of Channels4
Number of Banks4
TerminationNo
Supported Hardware PlatformPXI
Maximum Carry Current AC0.5 A
Maximum Switching Current DC0.5 A
Maximum Switching Voltage DC30 V
Mode (n-wire)1-wire
Number of Columns1
Number of Rows4
Row AccessYes
Scan Rate100 cycles/s
NI part numbers780587-46
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2746

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
User Manual (NI)User Manual · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI PXIe-2746 switching configuration?

The PXIe-2746 is a quad 4x1 RF multiplexer with four banks.

What interface does the PXIe-2746 use?

It uses a PXI Express bus connection within the PXI hardware platform.

What are its bandwidth and impedance?

The listed switch bandwidth is 2.7 GHz, with a characteristic impedance of 50 ohm.

Does the PXIe-2746 include termination?

The existing verified specifications list no termination.

What part number is listed for the PXIe-2746?

The listed NI part number is 780587-46.
