NI (National Instruments) · PXI

PXIe-2738

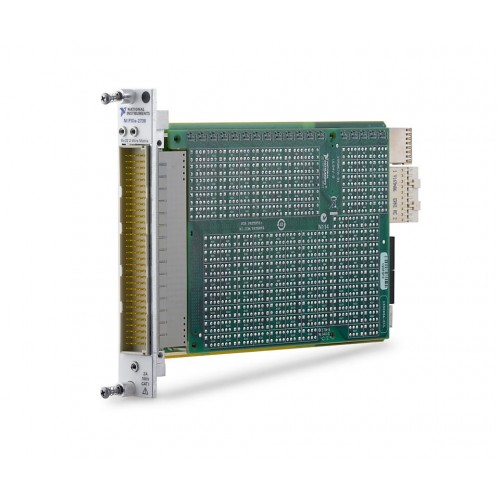

The NI PXIe-2738 is a 2-wire matrix switch module with a PXI Express interface. It provides 256 crosspoints in an 8-row by 32-column arrangement using electromechanical relays.

ManufacturerNI (National Instruments)

ModelPXIe-2738

Part Number782835-38

Product Type256-Crosspoint, 2-Wire PXI Matrix Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2738

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Number of Columns32

Crosspoints256

Scan Rate1000 cycles/s

Bus ConnectorPXI Express

Maximum Switching Current DC2 A

Maximum Switching Voltage DC100 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2738 provides a single-bank, 8 × 32 matrix for signal routing in automated test systems. Its 256 crosspoints use electromechanical relays in a 2-wire configuration.

The module connects through PXI Express within the PXI platform. Published specifications include a 10 MHz switch bandwidth, a scan rate of 1000 cycles/s, row access and termination.

256 crosspoints arranged as an 8-row by 32-column matrix.
2-wire switching configuration in a single bank.
Electromechanical relays with a specified switch bandwidth of 10 MHz.
Maximum DC switching voltage of 100 V and maximum DC switching current of 2 A.
Scan rate of 1000 cycles/s.
Row access and termination supported.

Verified specifications

Technical data

Verified product specifications.

Number of Columns	32
Crosspoints	256
Scan Rate	1000 cycles/s
Bus Connector	PXI Express
Maximum Switching Current DC	2 A
Maximum Switching Voltage DC	100 V
Number of Rows	8
Relay Type	Electromechanical
Switch Bandwidth	10 MHz
Mode (n-wire)	2-wire
Number of Banks	1
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Maximum Carry Current AC	2 A
Maximum Switching Voltage AC	100 V
Number of Channels	256
Number of Relays	256
Row Access	Yes
Termination	Yes
