NI (National Instruments) · PXI

PXIe-2725

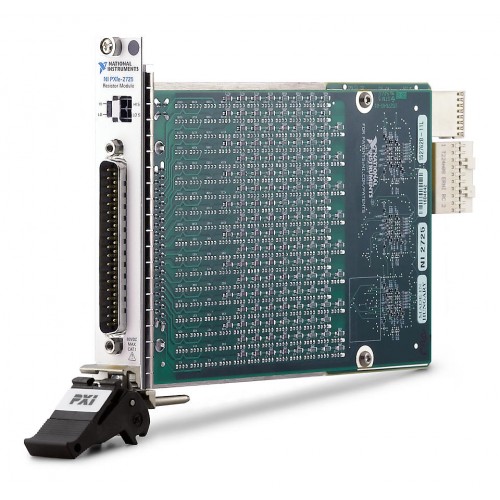

The NI PXIe-2725 is an 8-bit, 18-channel PXI Express programmable resistor module. It provides a maximum resistance of 255 ohms with 1-ohm resolution.

ManufacturerNI (National Instruments)

ModelPXIe-2725

Part Number781986-25

Product Type8-Bit, 18-Channel PXI Programmable Resistor Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2725

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Number of Resistor Channels18

Bus ConnectionPXI Express

Maximum Resistance255 Ohm

Resistance Resolution1 Ohm

Supported Hardware PlatformPXI

Maximum Carry Current AC0.3 A

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2725 replicates resistance-based inputs and outputs such as potentiometers, resistance temperature detectors, voltage dividers and bridge elements. It fits into the NI PXI platform through a PXI Express bus connection.

The module programmatically controls relays to vary resistance across each channel of its I/O connector. Its software interface accepts temperature or resistance inputs and configures channel resistance for tasks such as simulating environmental conditions during hardware-in-the-loop validation.

18 resistor channels with 8-bit control.
Maximum resistance of 255 ohms with 1-ohm resolution.
PXI Express bus interface for the PXI platform.
Reed relays with row access.
Maximum switching voltage of 30 V AC or 60 V DC.

Verified specifications

Technical data

Verified product specifications.

Number of Resistor Channels	18
Bus Connection	PXI Express
Maximum Resistance	255 Ohm
Resistance Resolution	1 Ohm
Supported Hardware Platform	PXI
Maximum Carry Current AC	0.3 A
Maximum Switching Current DC	0.3 A
Maximum Switching Voltage AC	30 V
Maximum Switching Voltage DC	60 V
Number of Channels	18
Relay Type	Reed
Row Access	Yes
NI part numbers	781986-25

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility
