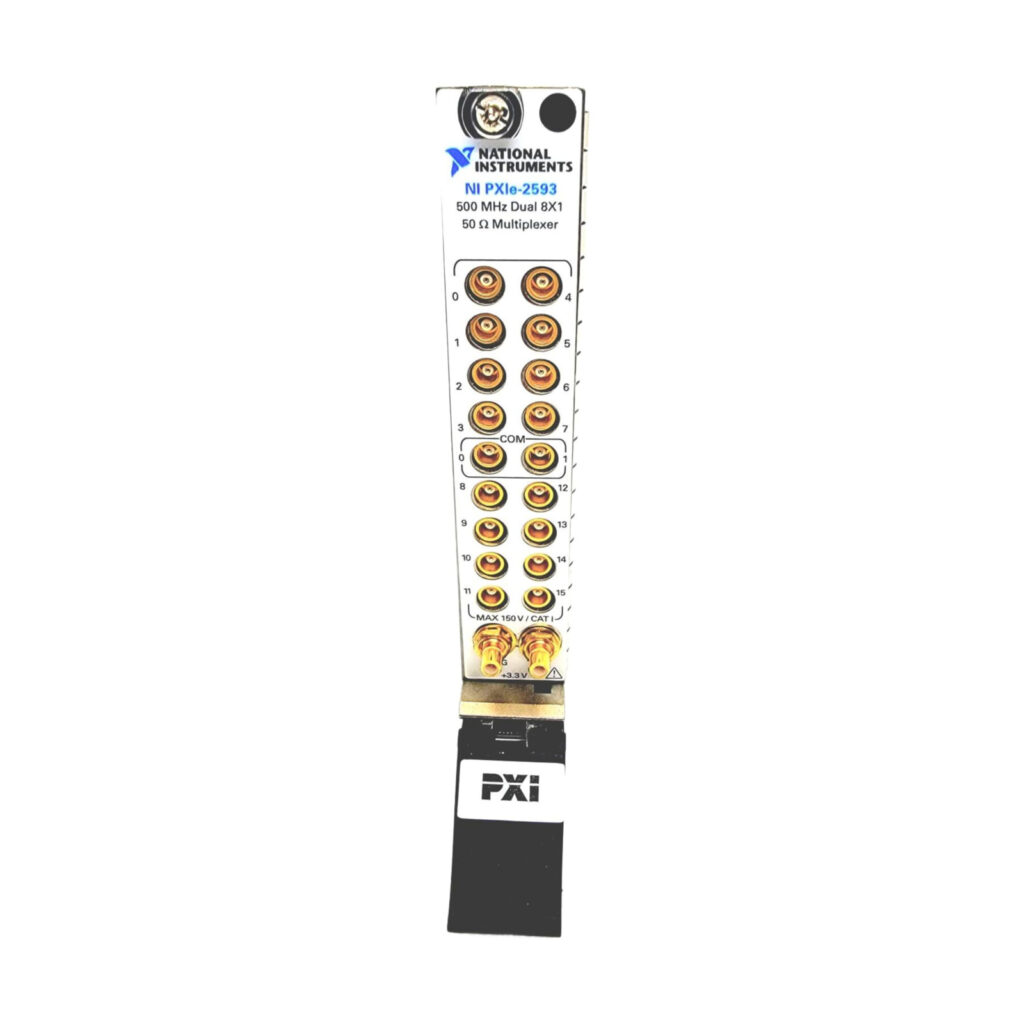

National Instruments PXIE-2593 product image 1

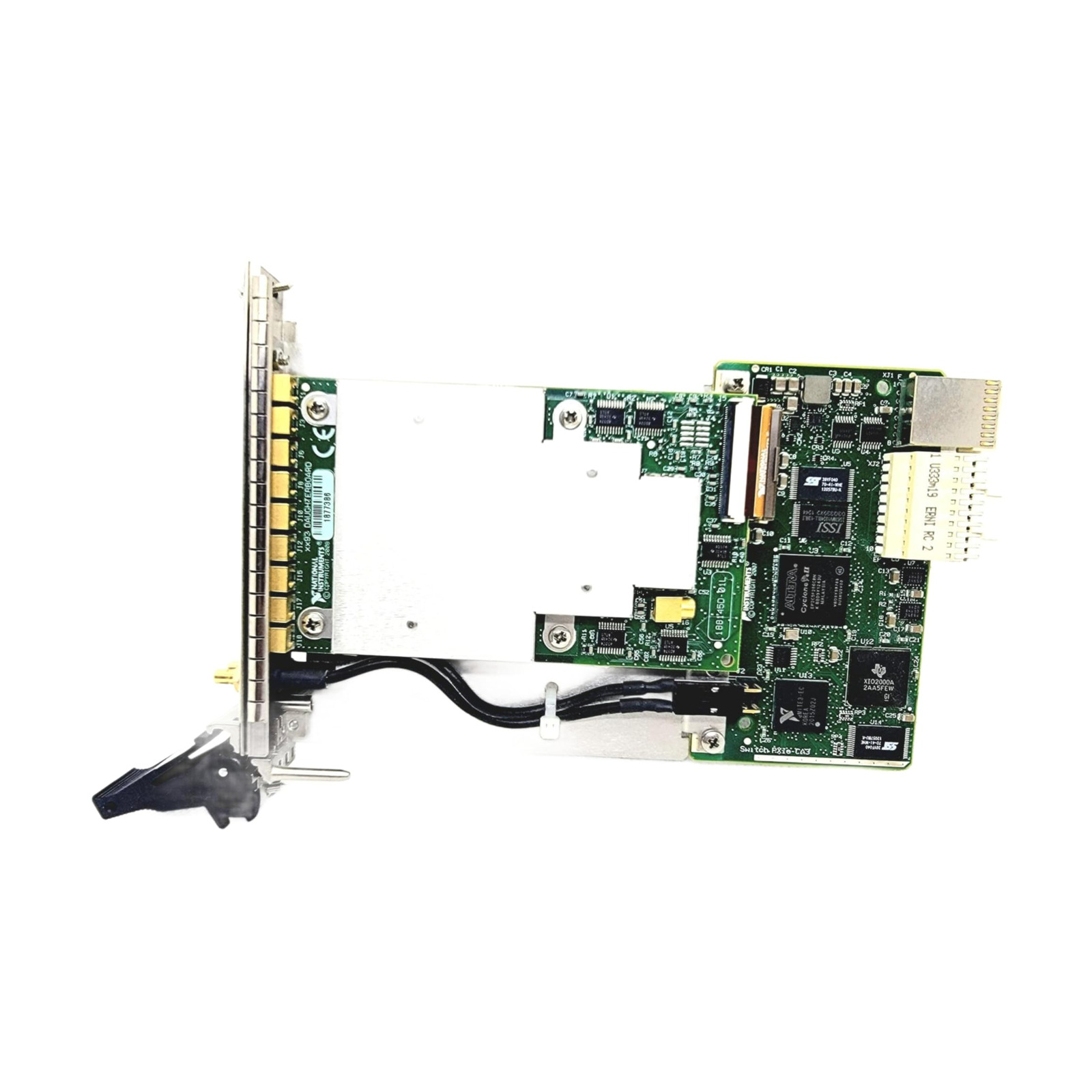

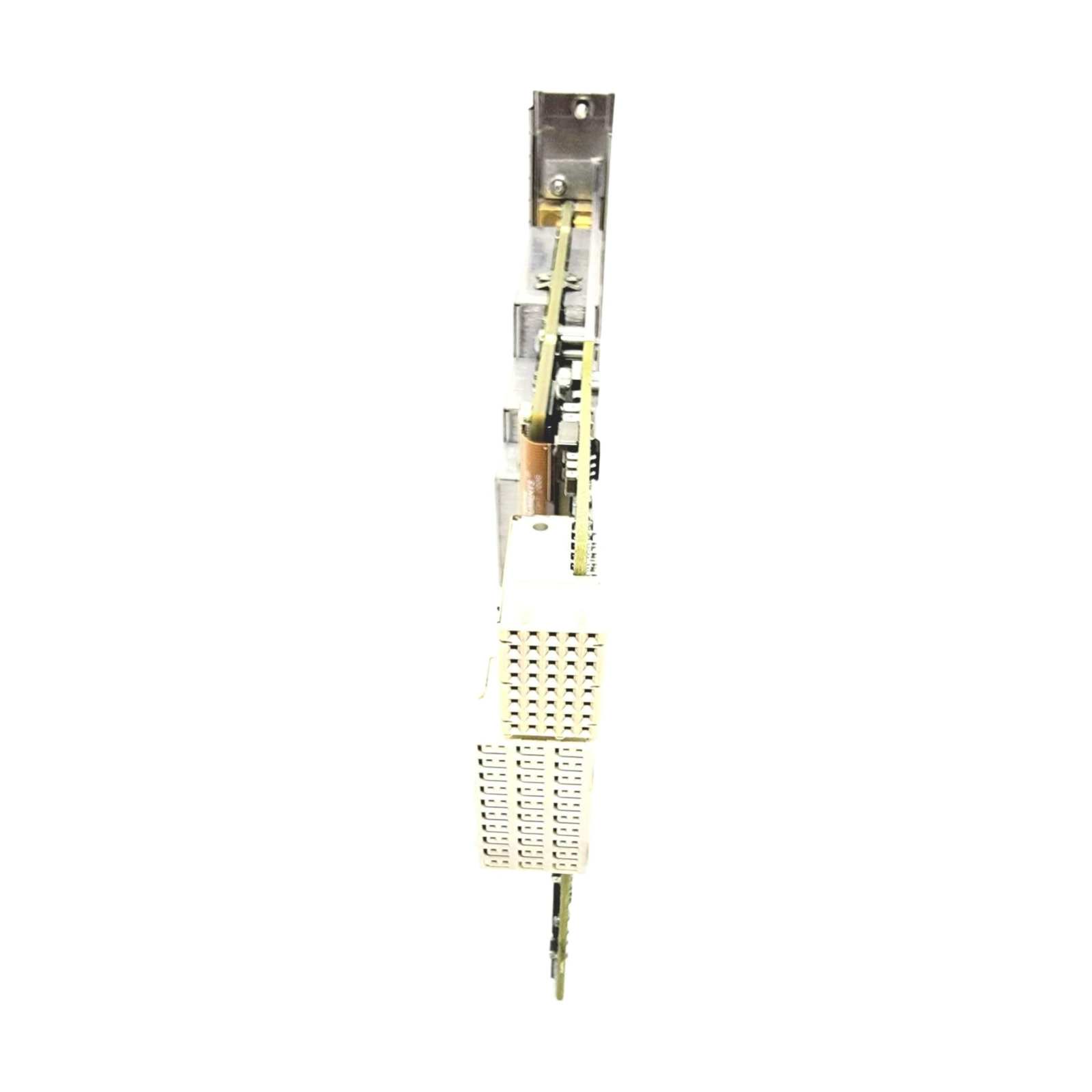

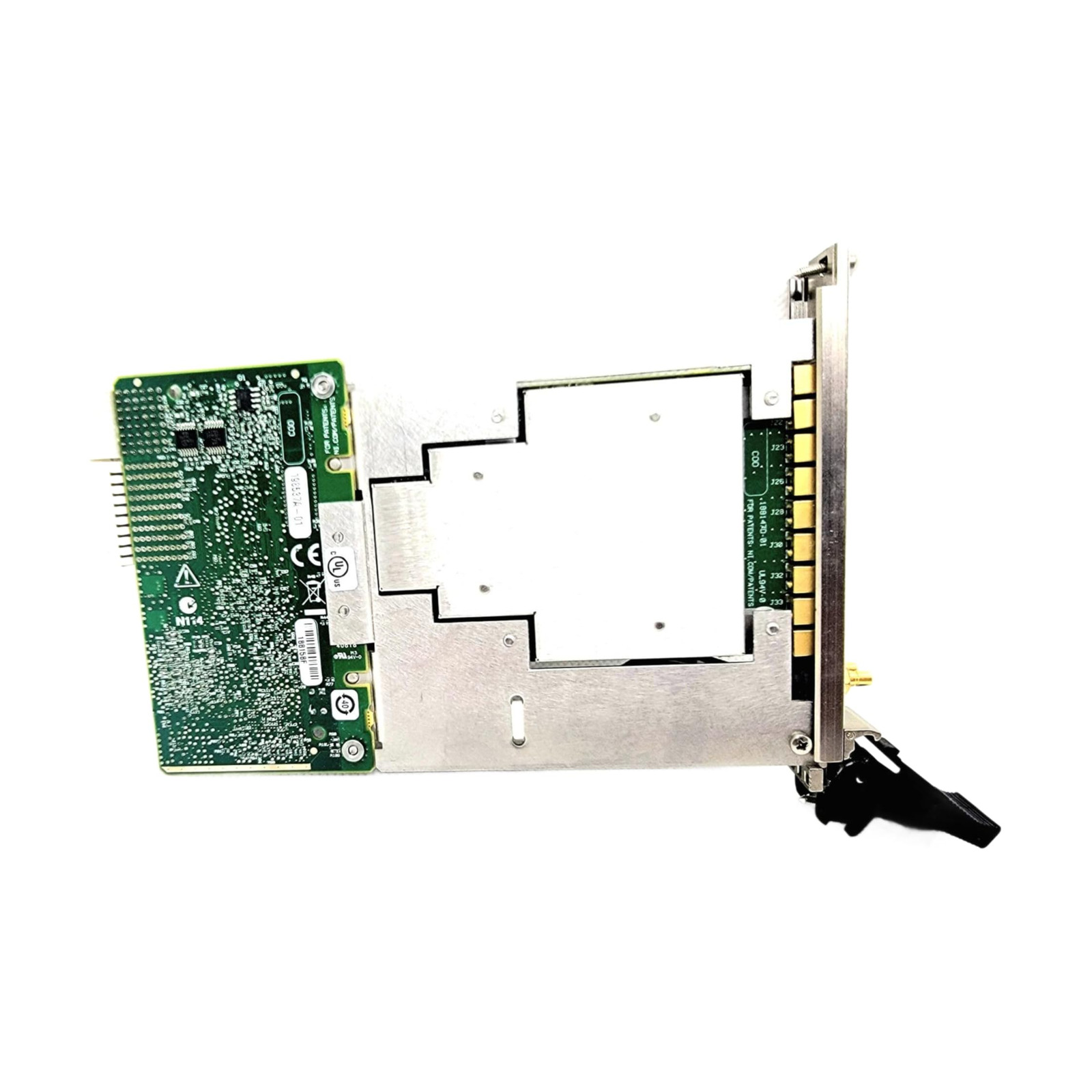

National Instruments PXIE-2593 product image 1 additional viewNational Instruments PXIE-2593 product image 1 additional viewNational Instruments PXIE-2593 product image 1 additional view
4 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXIe-2593

The NI PXIe-2593, part number 780587-93, is a 16-channel, 500 MHz, 50 Ω RF multiplexer switch module with a PXI Express interface and electromechanical relays.

ManufacturerNI (National Instruments)
ModelPXIe-2593
Part Number780587-93
Product TypePXIe, 500 MHz, 50 Ω PXI RF Multiplexer Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2593

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Maximum Switching Voltage AC150 V
Relay TypeElectromechanical
Switch Bandwidth500 MHz
Characteristic Impedence50 Ohm
Max Insertion Loss-1.9 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-2593 belongs to NI's RF and Microwave Switch family. It connects through PXI Express and provides 16 channels in one bank, with a listed arrangement of 16 rows and one column and support for row access.

The module can be programmatically configured as an unterminated multiplexer, an externally terminated multiplexer, or a dimensionally flexible sparse matrix. Its specified switch bandwidth is 500 MHz at a characteristic impedance of 50 Ω.

  • 500 MHz switch bandwidth with 50 Ω characteristic impedance.
  • 16 channels in a single bank with 1-wire operation.
  • Electromechanical relay switching.
  • Configurable as an unterminated multiplexer, externally terminated multiplexer, or dimensionally flexible sparse matrix.
  • 16 rows and one column, with row access.
  • Scan rate of 100 cycles/s.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Maximum Switching Voltage AC150 V
Relay TypeElectromechanical
Switch Bandwidth500 MHz
Characteristic Impedence50 Ohm
Max Insertion Loss-1.9 dB
Number of Channels16
Number of Banks1
TerminationNo
Supported Hardware PlatformPXI
Maximum Carry Current AC1 A
Maximum Switching Current DC0.5 A
Maximum Switching Voltage DC150 V
Mode (n-wire)1-wire
Number of Columns1
Number of Rows16
Row AccessYes
Scan Rate100 cycles/s
NI part numbers780587-93
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2593

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-2593?

The listed NI part number is 780587-93.

What interface does the PXIe-2593 use?

It uses a PXI Express bus connection within the PXI platform. Check the intended chassis and slot support before integration.

What are its channel count, bandwidth and impedance?

The module has 16 channels, a switch bandwidth of 500 MHz and a characteristic impedance of 50 Ω.

What switching configurations are supported?

It can be programmatically configured as an unterminated multiplexer, an externally terminated multiplexer, or a dimensionally flexible sparse matrix.

What relay type and scan rate are specified?

The PXIe-2593 uses electromechanical relays and has a specified scan rate of 100 cycles/s.
