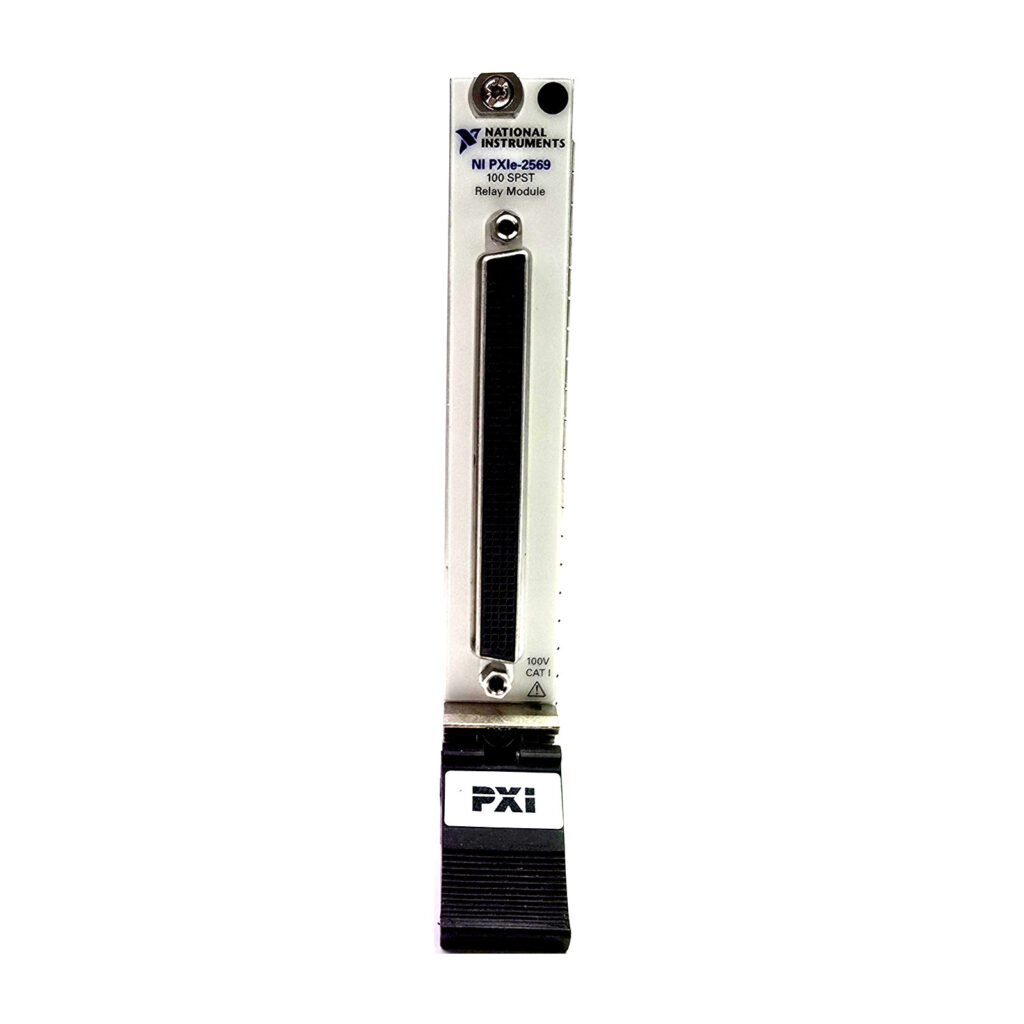

National Instruments PXIE-2569 product image 1
National Instruments PXIE-2569 product image 1 additional viewNational Instruments PXIE-2569 product image 1 additional viewNational Instruments PXIE-2569 product image 1 additional viewNational Instruments PXIE-2569 product image 1 additional viewNational Instruments PXIE-2569 product image 1 additional view
10 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXIe-2569

The NI PXIe-2569 is a PXI Express relay module with 100 independent SPST open electromechanical relays. It supports a maximum DC switching current of 1 A and maximum switching voltages of 100 V AC and DC.

ManufacturerNI (National Instruments)
ModelPXIe-2569
Part Number780587-69
Product TypePXIe, 100-Channel, 1 A, SPST PXI Relay Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2569

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Scan Rate145 cycles/s
Bus ConnectionPXI Express
Maximum Switching Current DC1 A
Maximum Switching Voltage DC100 V
Relay ConfigurationSPST (open)
Switch Bandwidth20 MHz
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-2569 provides 100 independent SPST Form A electromechanical relays in the PXI ecosystem, using a PXI Express bus connection. Its normally open relay configuration provides individual switched paths rather than a fixed multiplexer arrangement.

Software-programmable operation includes a 32,000-step scan list for deterministic scanning. The module has a scan rate of 145 cycles/s and a switch bandwidth of 20 MHz. Consult the NI specifications for the operating conditions and load limits associated with these ratings.

  • 100 channels implemented with 100 independent relays.
  • SPST open (Form A) electromechanical relay configuration.
  • PXI Express bus interface.
  • Maximum switching voltage of 100 V AC and 100 V DC, with maximum DC switching current of 1 A.
  • 20 MHz switch bandwidth and 145 cycles/s scan rate.
  • Software-programmable operation with a 32,000-step scan list.
Verified specifications

Technical data

Verified product specifications.

Scan Rate145 cycles/s
Bus ConnectionPXI Express
Maximum Switching Current DC1 A
Maximum Switching Voltage DC100 V
Relay ConfigurationSPST (open)
Switch Bandwidth20 MHz
Number of Relays100
Supported Hardware PlatformPXI
Maximum Carry Current AC1 A
Maximum Switching Voltage AC100 V
Number of Channels100
Relay TypeElectromechanical
Row AccessYes
NI part numbers780587-69
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2569

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
User Manual (NI)User Manual · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What relay configuration does the PXIe-2569 use?

It uses 100 independent SPST open electromechanical relays, also described as SPST Form A.

Does the PXIe-2569 use PXI or PXI Express?

It belongs to the PXI hardware platform and uses a PXI Express bus interface. Confirm the intended chassis slot supports this module.

What are its maximum voltage and current ratings?

The listed maximum switching voltage is 100 V AC or DC. Maximum DC switching current is 1 A, and maximum AC carry current is 1 A. These are separate ratings; consult the NI specifications for applicable load and operating limits.

What scanning capabilities does the PXIe-2569 provide?

The module supports software-programmable operation with a 32,000-step scan list and a listed scan rate of 145 cycles/s.
