Home / Shop / PXIe-2543

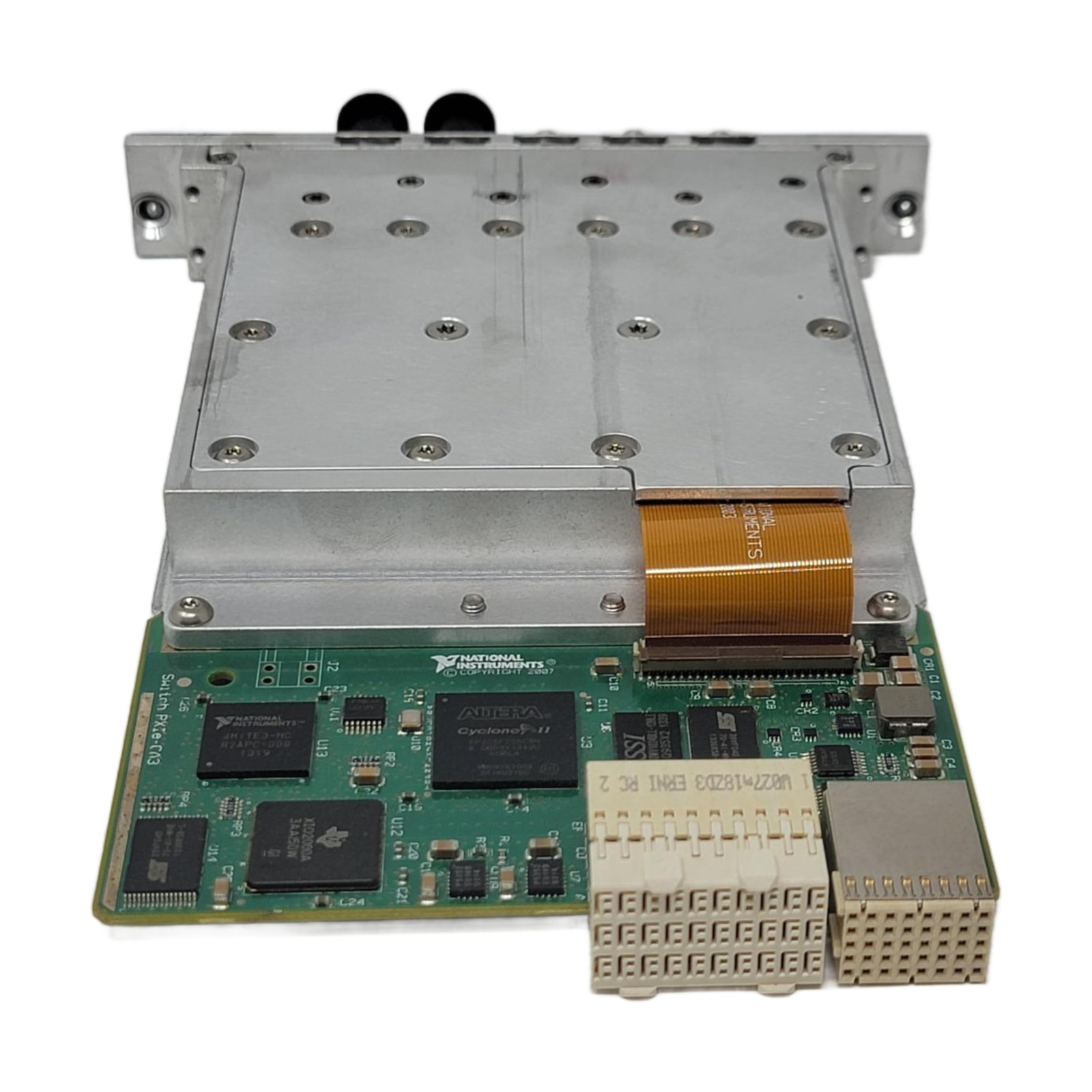

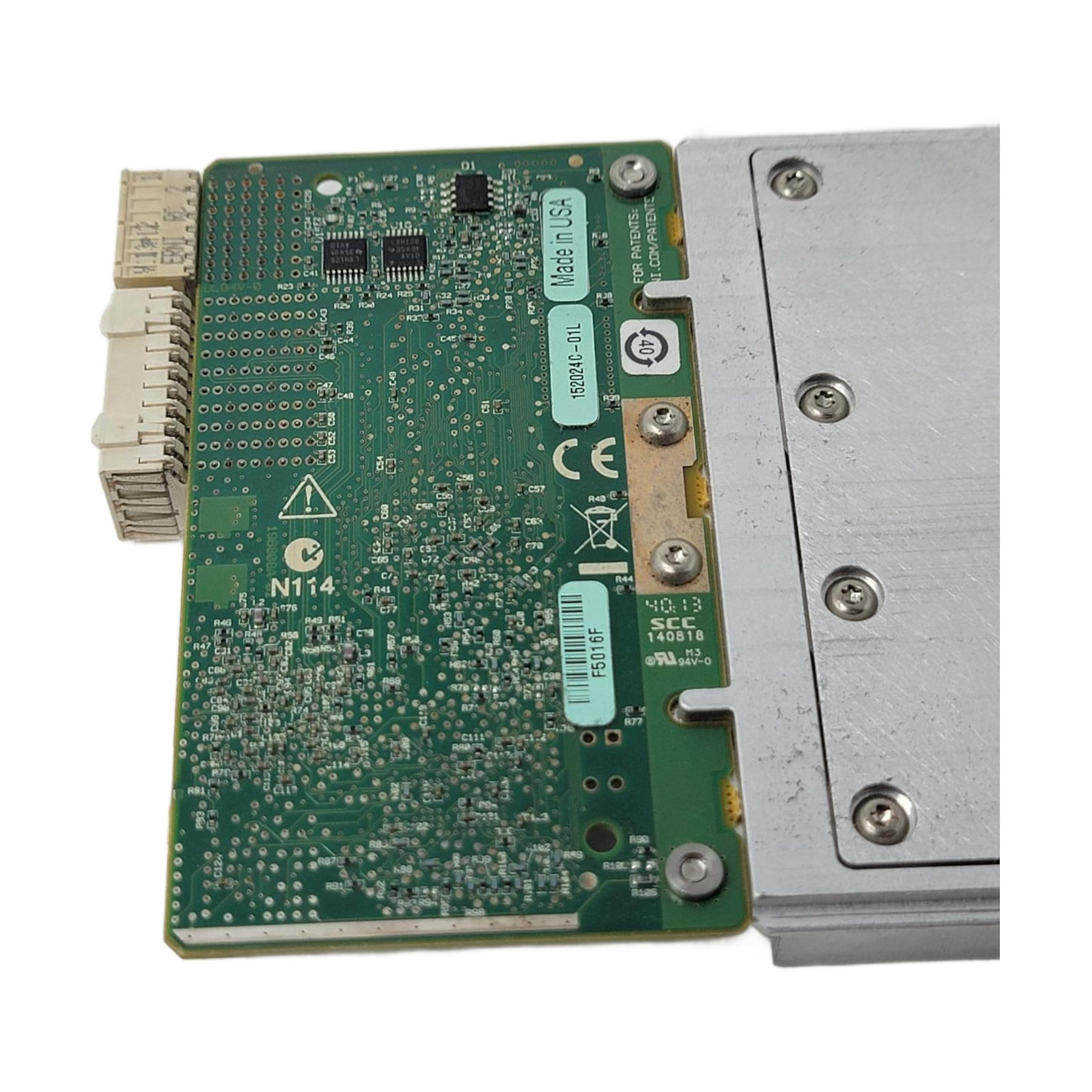

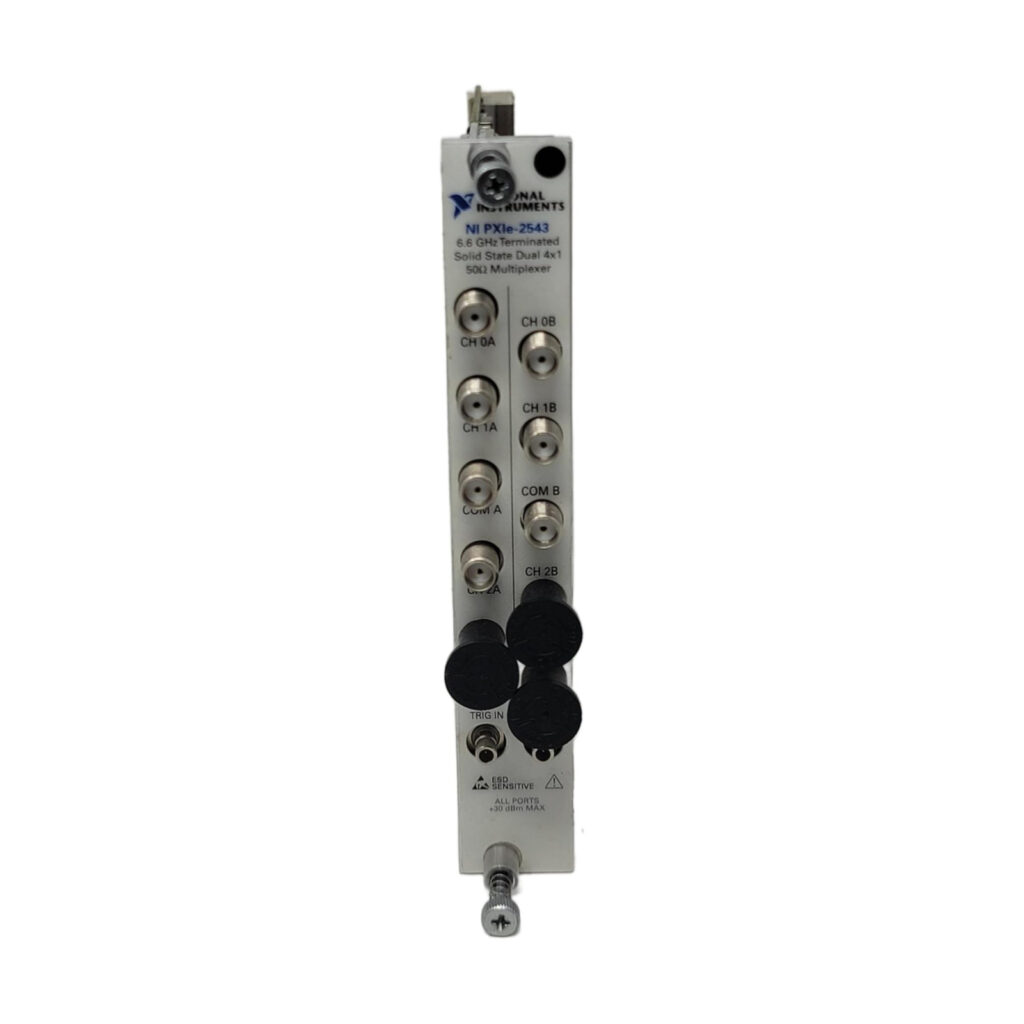

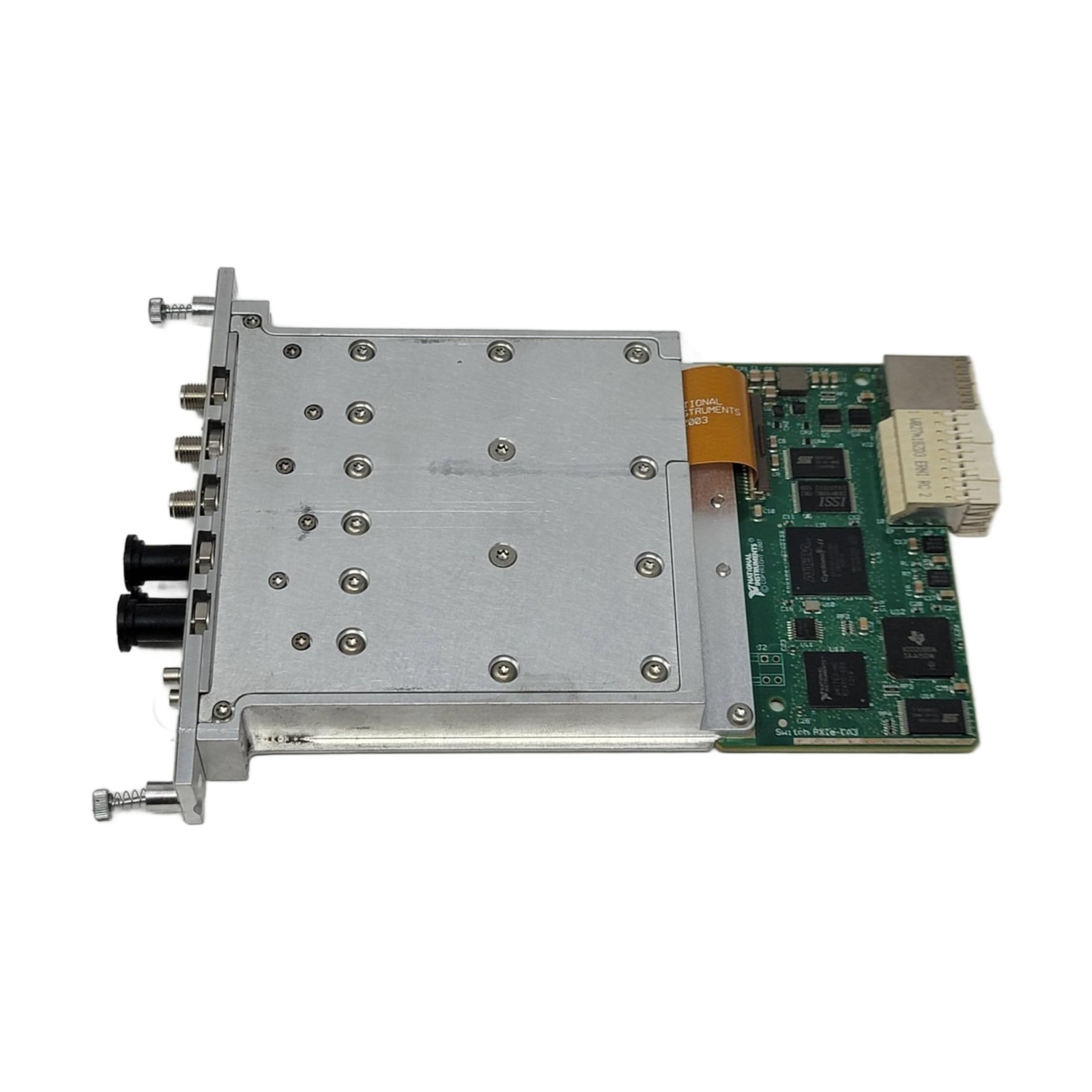

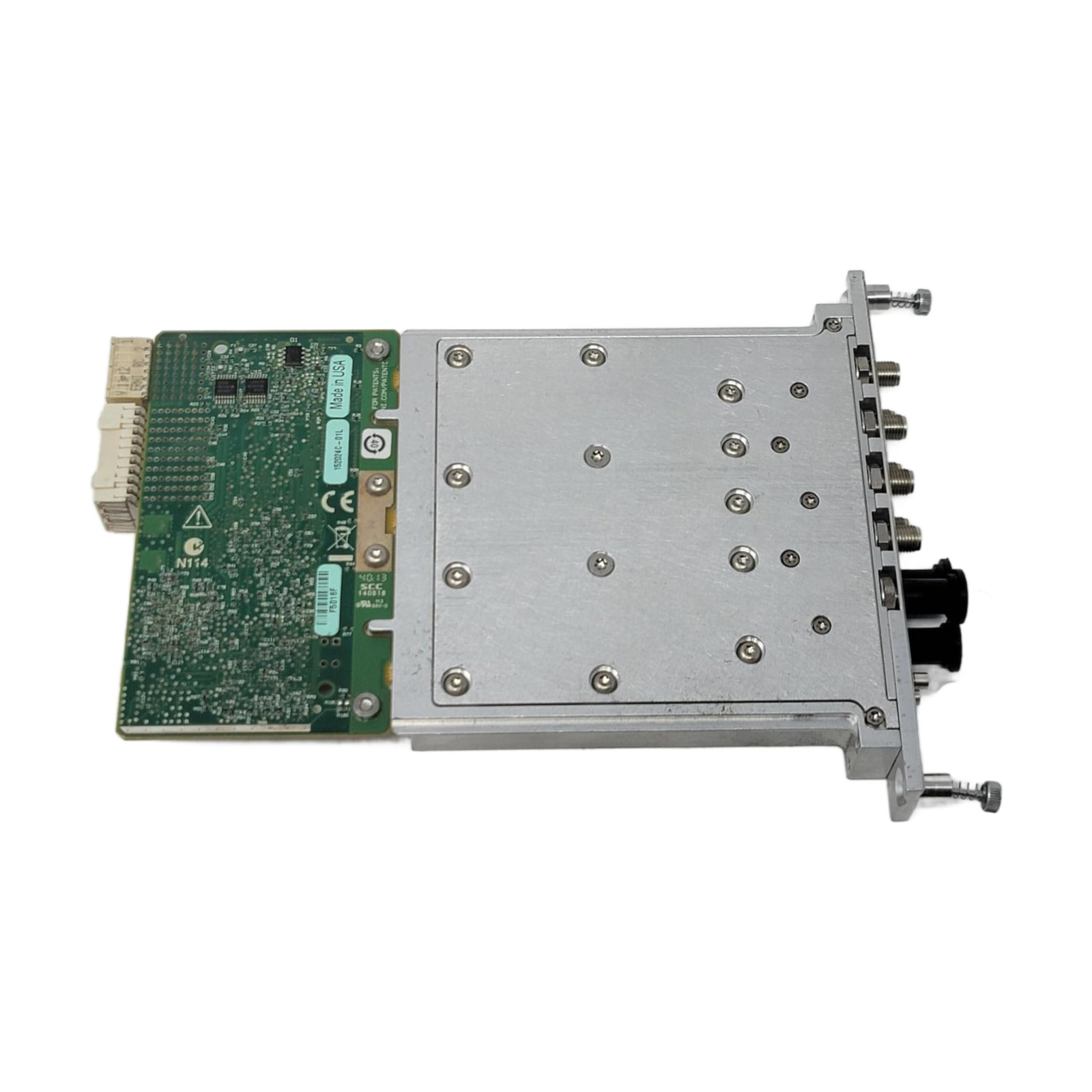

National Instruments PXIE-2543 product image 1
National Instruments PXIE-2543 product image 1 additional viewNational Instruments PXIE-2543 product image 1 additional viewNational Instruments PXIE-2543 product image 1 additional viewNational Instruments PXIE-2543 product image 1 additional view
5 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXIe-2543

The NI PXIe-2543, part number 780587-43, is a PXI Express solid-state RF multiplexer switch module with dual 4x1 switching, 6.6 GHz bandwidth and 50 ohm characteristic impedance.

ManufacturerNI (National Instruments)
ModelPXIe-2543
Part Number780587-43
Product TypePXIe, 6.6 GHz, 50 Ω, Solid-State, Dual 4x1 PXI RF Multiplexer Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2543

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Maximum Switching Voltage AC8 V
Relay TypeFET
Switch Bandwidth6.6 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss-6.1 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-2543 provides two banks of 4x1 RF multiplexing using solid-state FET relays. It belongs to NI's RF and Microwave Switch family and uses the PXI Express interface.

Front-mounted SMA connectors provide signal access. Every COM line and channel has termination, with a specified termination impedance of 50 ohm. The retained specifications list maximum switching voltages of 8 V AC and 8 V DC and a maximum AC carry current of 0.5 A.

  • Dual 4x1 multiplexer architecture with two switching banks.
  • 6.6 GHz switch bandwidth.
  • Solid-state switching based on FET relays.
  • 50 ohm characteristic impedance and 50 ohm termination impedance.
  • Front-mounted SMA connectors with termination on every COM line and channel.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Maximum Switching Voltage AC8 V
Relay TypeFET
Switch Bandwidth6.6 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss-6.1 dB
Number of Channels4
Number of Banks2
TerminationYes
Supported Hardware PlatformPXI
Maximum Carry Current AC0.5 A
Maximum Switching Voltage DC8 V
Mode (n-wire)1-wire
Number of Columns1
Number of Rows4
Row AccessYes
Termination Impedance50 Ohm
NI part numbers780587-43
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2543

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What switching topology does the PXIe-2543 provide?

It provides dual 4x1 multiplexing using solid-state FET relays.

What are the bandwidth and impedance specifications?

The switch bandwidth is 6.6 GHz. Characteristic impedance and termination impedance are both 50 ohm.

What connectors and termination does the module provide?

The module has front-mounted SMA connectors and termination on every COM line and channel.

What switching voltage and carry current are listed?

The retained specifications list maximum switching voltages of 8 V AC and 8 V DC, with a maximum AC carry current of 0.5 A. Consult the NI specifications for operating conditions before applying signals.
