NI (National Instruments) · PXI

PXIe-2540

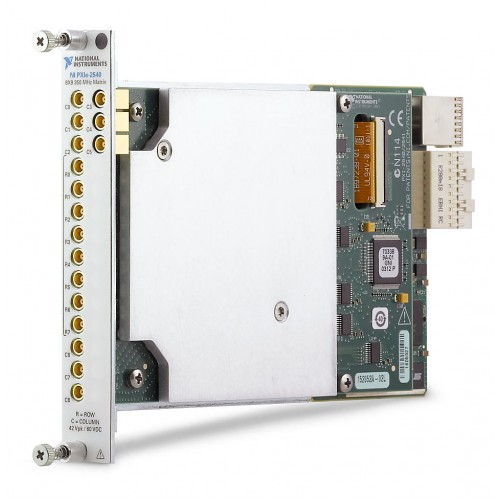

The NI PXIe-2540, part number 780587-40, is a PXI Express RF matrix switch module with 350 MHz bandwidth and an 8×9 matrix containing 72 crosspoints.

ManufacturerNI (National Instruments)

ModelPXIe-2540

Part Number780587-40

Product TypePXIe, 350 MHz, 8x9 PXI RF Matrix Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2540

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Switch Bandwidth350 MHz

Crosspoints72

Scan Rate100 cycles/s

Bus ConnectorPXI Express

Maximum Carry Current AC0.5 A

Maximum Switching Voltage AC42.4 Vpk

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2540 provides an 8×9 RF switching matrix on the PXI Express interface. Its 72 crosspoints, 350 MHz bandwidth and 50 Ω characteristic impedance define its signal-routing architecture.

The module uses reed relays and isolation relays that disconnect unused portions of the matrix. It is intended for routing signals between digitizers, function generators, and other RF generators and analyzers.

8×9 matrix architecture with 72 crosspoints and 72 reed relays.
350 MHz switch bandwidth and 50 Ω characteristic impedance.
PXI Express bus connection within the PXI platform.
Single-bank, 1-wire operation with row access.
Scan rate of 100 cycles/s.

Verified specifications

Technical data

Verified product specifications.

Switch Bandwidth	350 MHz
Crosspoints	72
Scan Rate	100 cycles/s
Bus Connector	PXI Express
Maximum Carry Current AC	0.5 A
Maximum Switching Voltage AC	42.4 Vpk
Relay Type	Reed
Characteristic Impedence	50 Ohm
Number of Rows	8
Number of Columns	9
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Max Insertion Loss	-2.3 dB
Maximum Switching Current DC	0.5 A
Maximum Switching Voltage DC	60 V
Mode (n-wire)	1-wire
Number of Banks	1
Number of Channels	72
Number of Relays	72
Row Access	Yes
NI part numbers	780587-40

Condition & included items
