NI (National Instruments) · PXI

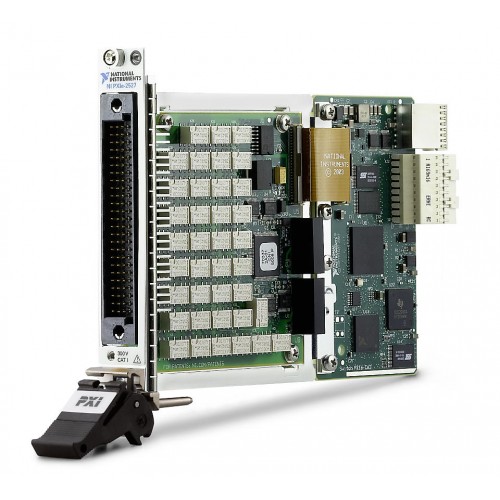

PXIe-2527

The NI PXIe-2527, part number 780587-27, is a high-voltage multiplexer switch module with a PXI Express interface. It uses electromechanical relays and supports 1-wire, 2-wire, and 4-wire operation.

ManufacturerNI (National Instruments)

ModelPXIe-2527

Part Number780587-27

Product Type32‐Channel, 300 V, 2‐Wire PXI Multiplexer Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2527

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Scan Rate140 cycles/s

Mode (n-wire)1-wire, 2-wire, 4-wire

Bus ConnectorPXI Express

Maximum Switching Current DC2 A

Maximum Switching Voltage DC300 V

Relay TypeElectromechanical

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2527 is a multiplexer switch module for medium- to high-density automated test systems. Its PXI Express interface places it within the NI PXI ecosystem, while electromechanical relays provide the signal-switching paths.

Supported configurations include 64 × 1 in 1-wire mode, 32 × 1 in 2-wire mode, and 16 × 1 in 4-wire mode. Onboard relay counting and hardware-triggered operation support coordinated switching in automated test sequences.

Supports 1-wire, 2-wire, and 4-wire multiplexer configurations.
Provides 64 crosspoints with 16, 32, or 64 channels and one or two banks, depending on configuration.
Rated for maximum switching voltages of 300 V DC and 300 V AC, with a maximum DC switching current of 2 A.
Uses electromechanical relays and supports a scan rate of 140 cycles/s.
Provides onboard relay counting and hardware-triggered operation.

Verified specifications

Technical data

Verified product specifications.

Scan Rate	140 cycles/s
Mode (n-wire)	1-wire, 2-wire, 4-wire
Bus Connector	PXI Express
Maximum Switching Current DC	2 A
Maximum Switching Voltage DC	300 V
Relay Type	Electromechanical
Switch Bandwidth	30 MHz
Number of Channels	16, 32, 64
Number of Banks	1, 2
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Crosspoints	64
Maximum Carry Current AC	2 A
Maximum Switching Voltage AC	300 V
Number of Columns	1
Number of Rows	64
Row Access	Yes
Termination	Yes
NI part numbers	780587-27

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2527

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

User Manual (NI)User Manual · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

PXIe-2527 SpecificationsTechnical resource

Open →

PXIe-2527 User ManualTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of module is the PXIe-2527?

It is a multiplexer switch module with a PXI Express interface and electromechanical relays. Its nominal 2-wire configuration provides 32 channels.

Which wiring modes and channel configurations does it support?

It supports 1-wire, 2-wire, and 4-wire operation, including 64 × 1 1-wire, 32 × 1 2-wire, and 16 × 1 4-wire configurations.

What are its voltage and current ratings?

The retained specifications list maximum switching voltages of 300 V DC and 300 V AC, a maximum DC switching current of 2 A, and a maximum AC carry current of 2 A. Consult the NI specifications for operating conditions and limits; these maxima should not be assumed to apply simultaneously.

Does the PXIe-2527 use PXI or PXI Express?

The module belongs to the PXI hardware platform and uses a PXI Express bus connection. Confirm the intended chassis slot supports this interface before installation.
