NI (National Instruments) · PXI

PXIe-2526

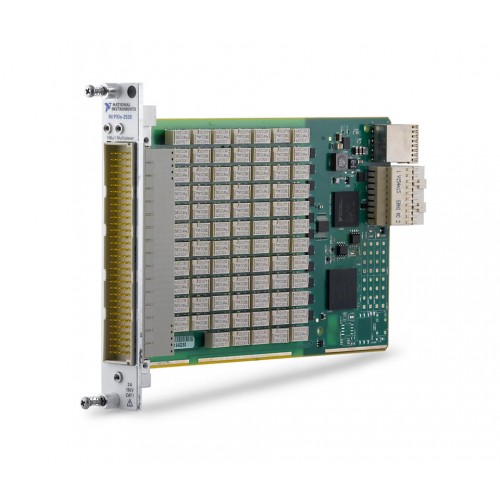

The NI PXIe-2526, part number 780587-26, is a 158-channel, 2 A multiplexer switch module with electromechanical relays and a PXI Express interface. It supports 158x1 1-wire and 79x1 2-wire multiplexer topologies.

ManufacturerNI (National Instruments)

ModelPXIe-2526

Part Number780587-26

Product Type158‐Channel, 2 A PXI Multiplexer Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2526

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Scan Rate1000 cycles/s

Mode (n-wire)1-wire, 2-wire

Bus ConnectorPXI Express

Maximum Switching Current DC2 A

Maximum Switching Voltage DC150 V

Relay TypeElectromechanical

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2526 is a high-density multiplexer switch module for routing signals within automated test systems. It provides 158 crosspoints in a single bank and uses a PXI Express bus connection.

The module supports 158x1 1-wire or 79x1 2-wire operation using electromechanical relays. Onboard relay counting supports relay monitoring.

Supports 158x1 1-wire and 79x1 2-wire multiplexer topologies.
Provides 158 crosspoints in one bank.
Uses electromechanical relays with onboard relay counting.
Rated for maximum switching voltages of 150 V DC and 150 V AC.
Supports a maximum DC switching current of 2 A and maximum AC carry current of 2 A.
Offers 10 MHz switch bandwidth and a scan rate of 1000 cycles/s.

Verified specifications

Technical data

Verified product specifications.

Scan Rate	1000 cycles/s
Mode (n-wire)	1-wire, 2-wire
Bus Connector	PXI Express
Maximum Switching Current DC	2 A
Maximum Switching Voltage DC	150 V
Relay Type	Electromechanical
Switch Bandwidth	10 MHz
Number of Channels	79, 158
Number of Banks	1
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Crosspoints	158
Maximum Carry Current AC	2 A
Maximum Switching Voltage AC	150 V
Number of Columns	1
Number of Rows	158
Row Access	Yes
Termination	Yes
NI part numbers	780587-26
