NI (National Instruments) · PXI

PXIe-2515

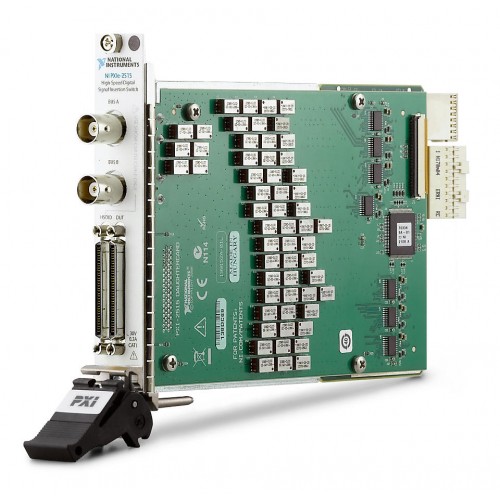

The NI PXIe-2515 is a PXI Express signal insertion switch module that routes high-speed digital I/O signals between a device under test and an NI high-speed DIO or parametric measurement device.

ManufacturerNI (National Instruments)

ModelPXIe-2515

Part Number780587-15

Product TypePXIe, 35-Channel, 0.25 A PXI Signal Insertion Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2515

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPXI Express

Maximum Switching Current DC0.25 A

Maximum Switching Voltage DC30 V

Relay TypeReed

Number of Channels32

Switch Bandwidth50 MHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2515 provides signal insertion switching for digital test systems. It routes signals between a device under test, high-speed digital I/O equipment, and parametric measurement equipment.

The module supports parametric testing of digital pins, allowing PXI source measure units and PXI digital multimeters to be used alongside high-speed digital devices. Its reed-relay switching has a listed bandwidth of 50 MHz.

PXI Express bus connection within the NI PXI platform.
Signal routing between a DUT and high-speed digital I/O or parametric measurement devices.
Reed-relay switching with a listed switch bandwidth of 50 MHz.
Maximum DC switching ratings of 30 V and 0.25 A.
Listed 1-column, 35-row configuration with row access.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	PXI Express
Maximum Switching Current DC	0.25 A
Maximum Switching Voltage DC	30 V
Relay Type	Reed
Number of Channels	32
Switch Bandwidth	50 MHz
Supported Hardware Platform	PXI
Maximum Carry Current AC	0.3 A
Maximum Switching Voltage AC	30 V
Number of Columns	1
Number of Rows	35
Row Access	Yes
NI part numbers	780587-15

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2515

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-2515?

The listed NI part number is 780587-15.

What signals does the PXIe-2515 route?

It routes high-speed digital I/O signals between a device under test and an NI high-speed DIO device or a parametric measurement device.

Can the PXIe-2515 support parametric testing of digital pins?

Yes. It supports parametric testing of digital pins, with PXI source measure units and PXI digital multimeters used alongside high-speed digital devices. Specific instrument and connection requirements should be checked in NI documentation.

What are the listed DC switching limits?

The maximum DC switching voltage is 30 V and the maximum DC switching current is 0.25 A. Consult the specifications for operating conditions and other switching limits.
