NI (National Instruments) · PXI

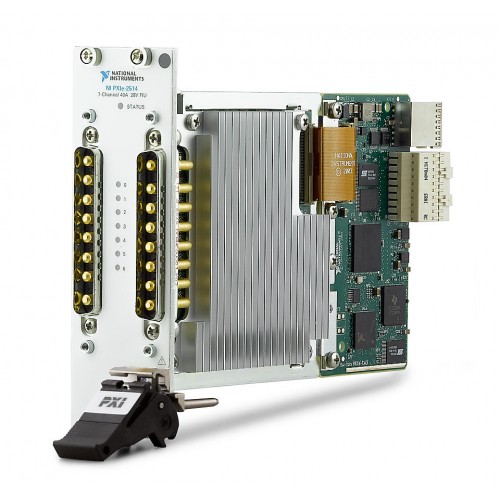

PXIe-2514

The NI PXIe-2514 is a 7-channel PXI Express fault insertion switch module with a maximum DC switching current of 40 A. It supports fault simulation for hardware-in-the-loop applications and electronic reliability tests.

ManufacturerNI (National Instruments)

ModelPXIe-2514

Part Number780587-14

Product TypePXIe, 7-Channel, 40 A PXI Signal Insertion Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2514

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPXI Express

Maximum Switching Current DC40 A

Maximum Switching Voltage DC28 V

Relay TypeFET

Number of Channels7

Switch Bandwidth800 kHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2514 provides feedthrough channels that can be opened or shorted to one or more fault buses. This enables per-channel simulation of open or interrupted connections, shorts between pins, shorts to battery voltages, and shorts to ground.

The module uses FET relays and provides 800 kHz switch bandwidth. Its listed configuration has one column, seven rows, and row access, with a PXI Express bus connection for integration into a suitable PXI system.

Seven feedthrough channels for per-channel fault insertion.
Simulates interrupted connections, pin-to-pin shorts, shorts to battery voltages, and shorts to ground.
Maximum DC switching ratings of 40 A and 28 V.
FET relay switching with 800 kHz bandwidth.
PXI Express interface within the PXI hardware platform.
Designed for hardware-in-the-loop applications and electronic reliability tests.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	PXI Express
Maximum Switching Current DC	40 A
Maximum Switching Voltage DC	28 V
Relay Type	FET
Number of Channels	7
Switch Bandwidth	800 kHz
Supported Hardware Platform	PXI
Maximum Carry Current AC	40 A
Maximum Switching Voltage AC	19.8 V
Number of Columns	1
Number of Rows	7
Row Access	Yes
NI part numbers	780587-14

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2514

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-2514?

The listed NI part number is 780587-14.

What fault conditions can the PXIe-2514 simulate?

It can simulate open or interrupted connections, shorts between pins, shorts to battery voltages, and shorts to ground on a per-channel basis.

What are the DC switching ratings?

The listed maximum switching current is 40 A DC, and the maximum switching voltage is 28 V DC. Consult the NI specifications for operating conditions and applicable limits.

What systems can the PXIe-2514 help validate?

When controlled with the LabVIEW Real-Time Module, it can help validate the integrity of control systems, including engine control units and full authority digital engine controls.
