NI (National Instruments) · PXI

PXIe-2512

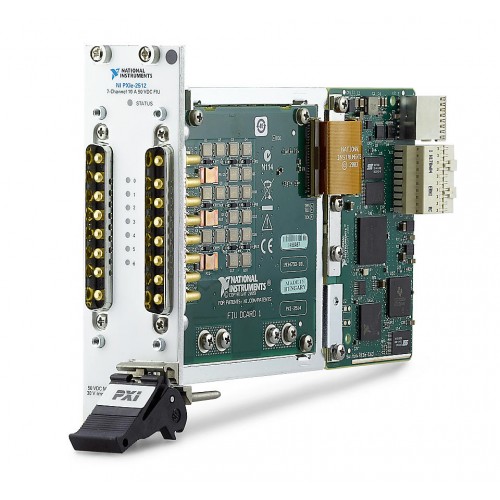

The NI PXIe-2512 is a PXI Express, 7-channel, 10 A fault insertion switch module for hardware-in-the-loop applications and electronic reliability tests.

ManufacturerNI (National Instruments)

ModelPXIe-2512

Part Number780587-12

Product TypePXIe, 7-Channel, 10 A PXI Signal Insertion Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2512

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPXI Express

Maximum Switching Current DC10 A

Maximum Switching Voltage DC50 V

Relay TypeFET

Number of Channels7

Switch Bandwidth800 kHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2512 uses feedthrough channels that can be opened or shorted to one or more fault buses. This supports simulation of open or interrupted connections, shorts between pins, shorts to battery voltages, and shorts to ground on a per-channel basis.

The module uses FET relays and provides an 800 kHz switch bandwidth. Its listed configuration has one column and seven rows with row access, using a PXI Express bus connection within the PXI platform.

Seven channels with a maximum DC switching current of 10 A and maximum AC carry current of 10 A.
Maximum switching voltage of 50 V DC and 30 V AC.
FET switching with an 800 kHz switch bandwidth.
Feedthrough channels support per-channel open-circuit and short-circuit fault simulation.
Intended for hardware-in-the-loop applications and electronic reliability testing, including control-system integrity validation when controlled with the LabVIEW Real-Time Module.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	PXI Express
Maximum Switching Current DC	10 A
Maximum Switching Voltage DC	50 V
Relay Type	FET
Number of Channels	7
Switch Bandwidth	800 kHz
Supported Hardware Platform	PXI
Maximum Carry Current AC	10 A
Maximum Switching Voltage AC	30 V
Number of Columns	1
Number of Rows	7
Row Access	Yes
NI part numbers	780587-12
