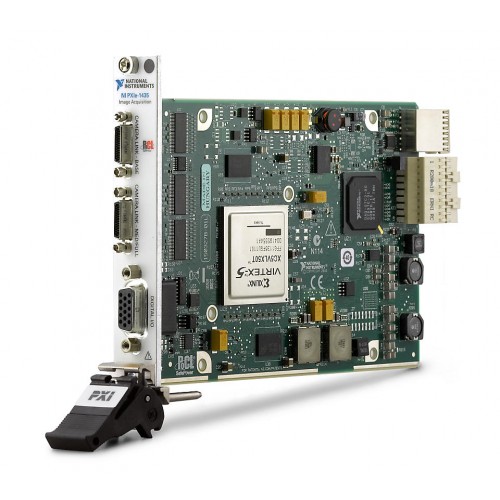

NI (National Instruments) PXIe-1435 Base-, Medium-, Full-Configuration Camera Link PXI Frame Grabber Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-1435

The NI PXIe-1435 is a PXI Express Camera Link frame grabber for machine vision and scientific imaging applications. It supports one camera using Base, Medium or Full Camera Link configurations.

ManufacturerNI (National Instruments)
ModelPXIe-1435
Part Number781699-01
Product TypeBase-, Medium-, Full-Configuration Camera Link PXI Frame Grabber Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-1435

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Camera Interface TypeCamera Link
Number of Camera Input Ports1
Number of TTL Inputs4
Quadrature Encoder Inputs1
Isolated Digital Inputs2
ReconfigurableNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-1435 is a Camera Link image acquisition module in the NI PXI ecosystem, using a PXI Express bus connection. It supports Base, Medium and Full Camera Link configurations for a single camera.

Power over Camera Link supports camera power through PoCL-enabled cables. The module also provides four TTL inputs, two isolated digital inputs and one quadrature encoder input.

  • Supports Base, Medium and Full Camera Link camera configurations.
  • Acquires images from one Camera Link camera over a PXI Express bus connection.
  • Supports Power over Camera Link for camera power through PoCL-enabled cables.
  • Includes four TTL inputs, two isolated digital inputs and one quadrature encoder input.
  • Non-reconfigurable module.
Verified specifications

Technical data

Verified product specifications.

Camera Interface TypeCamera Link
Number of Camera Input Ports1
ReconfigurableNo
Number of TTL Inputs4
Number of Quadrature Encoder Inputs1
Number of Isolated Digital Inputs2
Supported Hardware PlatformPXI
Bus ConnectionPXI Express
Number of Cameras Supported1
Camera Powered Over InterfaceYes
NI part numbers781699-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-1435

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI PXIe-1435?

It is a PXI Express Camera Link frame grabber supporting Base, Medium and Full camera configurations.

How many cameras does the PXIe-1435 support?

The previously verified structured specifications list support for one camera and one camera input port.

What digital inputs are included?

The PXIe-1435 includes four TTL inputs, two isolated digital inputs and one quadrature encoder input.

Does the PXIe-1435 support Power over Camera Link?

Yes. It supports camera power through Power over Camera Link using PoCL-enabled cables.
