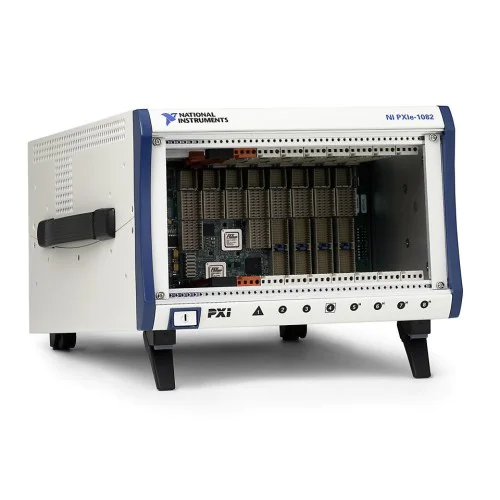

National Instruments PXIe-1082 8-slot 3U PXI Express chassis
1 image: Click to enlarge
National Instruments · PXI Express

PXIe-1082

The NI PXIe-1082 is an AC-powered, eight-slot PXI Express chassis with up to 8 GB/s system bandwidth. Its backplane provides four hybrid peripheral slots and a dedicated system timing slot.

ManufacturerNational Instruments
ModelPXIe-1082
Part Number780321-01
Product Type8-slot 3U PXI Express chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-1082

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Slot layout1 controller, 2 PXIe peripheral, 1 PXIe timing, 4 hybrid
Maximum system bandwidth8 GB/s
Power supplyAC
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for modular test and measurement systems, the PXIe-1082 combines PXI Express peripheral slots with hybrid slots for supported PXI modules.

Slot 1 serves the system controller; slots 2 and 3 are PXI Express peripheral slots, slot 4 provides system timing, and slots 5–8 are hybrid peripheral slots.

  • Four hybrid slots support hybrid-compatible PXI peripheral modules.
  • Dedicated PXI Express system timing slot.
  • External reference-clock input/output support.
Verified specifications

Technical data

Verified product specifications.

Total slots8 slots
Hybrid peripheral slots4 slots
Dedicated PXI Express peripheral slots2 slots
PXI Express system timing slots1 slot
Maximum system bandwidth8 GB/s
Power supply typeAC
Slot cooling capacity38 W
Operating temperature0 to 55 °C
Redundant hardwareNo
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Modular instrumentation platform

PXIe-1082

Chassis and backplane

Compatibility

Slots 2 and 3 accept PXI Express peripheral modules with x4 or x1 links.

Check module slot requirements and system power and cooling budgets before configuring the chassis.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-1082 Product PageProduct Page · ni.com
Open →
NI PXIe-1082 User Manual, March 2016User Manual · docs-be.ni.com
Open →
PXIe-1082 Dimensional DrawingsDimensional Drawings · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the eight-slot count include the controller slot?

Yes. The chassis has one controller slot and seven peripheral positions, including the system timing slot.

Can the PXIe-1082 accept PXI modules?

Hybrid-compatible PXI peripheral modules can use slots 5–8. This does not establish compatibility with every PXI module.
