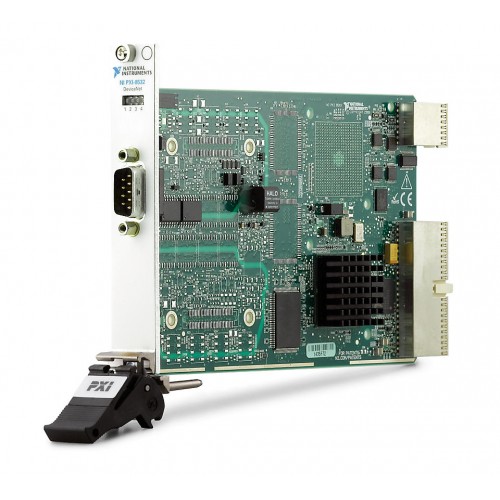

National Instruments PXI-8532 DeviceNet interface module
1 image: Click to enlarge
National Instruments · PXI

PXI-8532

The NI PXI-8532 is a single-port DeviceNet interface module for PXI systems. It provides programmable master/scanner or slave capabilities using NI-Industrial Communications for DeviceNet.

ManufacturerNational Instruments
ModelPXI-8532
Part Number781063-01
Product TypeDeviceNet interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8532

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Network ports1 DeviceNet port
Supported DeviceNet rates125, 250, and 500 kb/s
I/O connector9-pin male D-Sub
Operating temperature0 to 55 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-8532 adds DeviceNet communication to a PXI system, with software-configurable master/scanner and slave operation. Its manufacturer part number is 781063-01.

Distinguish the CAN physical-layer capability from usable DeviceNet rates: although the hardware supports up to 1 Mb/s, NI-Industrial Communications for DeviceNet supports only 125, 250, and 500 kb/s.

  • Single-port DeviceNet connectivity with a PXI Hybrid bus connection.
  • Programmable master/scanner or slave network roles.
  • Supports importing Electronic Data Sheet (EDS) files for DeviceNet integration.
Verified specifications

Technical data

Verified product specifications.

DeviceNet ports1 port
Bus connectionPXI Hybrid
Driver-supported DeviceNet baud rates125, 250, 500 kb/s
CAN physical-layer maximum baud rate1 Mb/s
I/O connector9-pin male D-Sub
PXI board dimensions10.00 × 16.00 cm
Operating temperature0 to 55 °C
Storage temperature-20 to 70 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular system platform

PXI-8532

DeviceNet network interface

Software driver

NI-Industrial Communications for DeviceNet

The 1 Mb/s hardware capability is not a supported DeviceNet driver rate; use 125, 250, or 500 kb/s.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-8532 Product PageOfficial Product Page · ni.com
Open →
PCI/PXI-8532 SpecificationsSpecifications · ni.com
Open →
NI-Industrial Communications for DeviceNet and LabVIEW Version CompatibilitySoftware Compatibility Reference · ni.com
Open →
DeviceNet Cards that Support Importing EDS FilesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which driver does the PXI-8532 use?

It uses NI-Industrial Communications for DeviceNet. Check NI's version compatibility reference before selecting LabVIEW and controller software.

Can the PXI-8532 communicate over DeviceNet at 1 Mb/s?

No. The CAN hardware has a maximum baud rate of 1 Mb/s, but NI-Industrial Communications for DeviceNet supports only 125, 250, and 500 kb/s.

Does the PXI-8532 support EDS file imports?

Yes. NI explicitly identifies the PXI-8532 as supporting Electronic Data Sheet (EDS) file imports.
