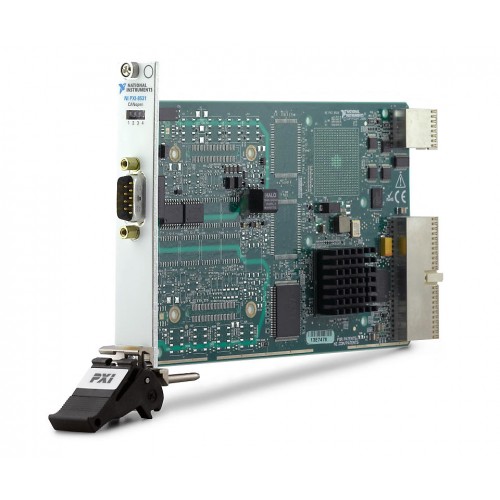

The NI PXI-8531 is a single-port, high-speed CANopen interface module for PXI systems. It uses the NI-Industrial Communications for CANopen driver.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-8531 provides a CANopen communication interface for controlling networked devices from a PXI or CompactPCI chassis. NI identifies it as compliant with the PXI and CompactPCI specifications.
This is a CANopen-specific interface, not a general-purpose NI-XNET CAN interface. NI states that it cannot be used for basic CAN communication with a DBC database file.
Verified product specifications.
| CANopen channels | 1 |
|---|---|
| Maximum baud rate | 1 Mbit/s |
| Bus connection | PXI Hybrid |
| Operating temperature | 0 to 55 °C |
| CAN transceiver | NXP PCA82C251 High-Speed CAN |
| Galvanic isolation withstand | 500 Vrms for 5 seconds maximum; not a continuous working-voltage rating |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host chassis platform
CANopen network interface
NI-Industrial Communications for CANopen, not NI-XNET.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It uses NI-Industrial Communications for CANopen. NI explicitly states that basic CAN communication using a DBC database file is not supported.
No. NI states that the PXI-8531 cannot be used in a slave configuration. Support for configuring slave nodes through LSS does not mean the interface itself can act as a slave.
Use NI's supported hardware and software reference, then verify the requirements for the intended driver release. The reference lists an NI Real-Time PXI controller configuration and includes a Phar Lap support-removal notice.
