National Instruments · PXI

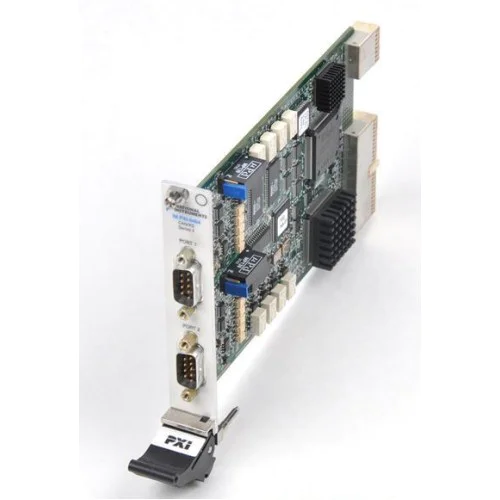

PXI-8464/2

The National Instruments PXI-8464/2 is a two-port Series 2 CAN interface for PXI systems. It supports software-selectable high-speed, low-speed and single-wire CAN modes.

ManufacturerNational Instruments

ModelPXI-8464/2

Part Number778783-02

Product TypeTwo-port software-selectable CAN interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8464/2

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

CAN ports2

Physical-layer modesSoftware-selectable HS/LS/SW CAN

Connector format9-pin D-sub

Driver supportListed in NI-CAN 18.0 supported hardware

External bus power8–18 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-8464/2 provides two CAN ports in the PXI-8464 Series 2 family. Its software-selectable physical-layer modes cover high-speed, low-speed and single-wire CAN rather than limiting the interface to one fixed transceiver type.

For system integration, NI lists the PXI-8464 family in the NI-CAN 18.0 supported-hardware documentation and specifies an external 8–18 V bus supply. Check the selected driver release against the intended operating system and development environment before configuring the host.

Two-port CAN interface in the PXI-8464 Series 2 family.
Software-selectable high-speed, low-speed and single-wire CAN modes.
9-pin D-sub CAN connector format.
Series 2 hardware uses the Philips SJA1000 CAN controller with hardware receive filtering.

Verified specifications

Technical data

Verified product specifications.

CAN port count	2 ports
Manufacturer part number	778783-02
Hardware generation	Series 2
CAN physical-layer selection	Software-selectable high-speed, low-speed and single-wire
Connector format	9-pin D-sub
CAN controller	Philips SJA1000
External bus supply voltage	8–18 V

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

PXI-8464/2

Two-port software-selectable CAN interface

Software ecosystem

NI-CAN; PXI-8464 is explicitly listed in the NI-CAN 18.0 supported-hardware section.

Account for external bus power and verify the selected NI-CAN release against the host software environment.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-CAN 18.0 ReadmeDriver Readme And Supported-hardware Reference · ni.com

Open →

NI-CAN 2.3.3 ReadmeLegacy Driver Documentation And Series 2 Filtering Reference · download.ni.com

Open →

NI CAN/LIN/FlexRay/Automotive Ethernet Device Power Supply RequirementsPower Requirements Support Article · knowledge.ni.com

Open →

PXI-8464 external bus-power requirementsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many CAN ports does the PXI-8464/2 provide?

This model is the two-port configuration of the PXI-8464 Series 2 CAN interface.

Which CAN physical-layer modes does it support?

The PXI-8464 family supports software-selectable high-speed, low-speed and single-wire CAN modes.

Does the PXI-8464 require external bus power?

Yes. NI's device power requirements table specifies an external 8–18 V supply for PXI-8464.

Is PXI-8464 supported by NI-CAN 18.0?

Yes. The NI-CAN 18.0 readme explicitly lists one-port and two-port PXI-8464 Series 2 hardware. This is release-specific support, not a statement of compatibility with every operating system or LabVIEW version.
