PXI-8461/2

The National Instruments PXI-8461/2 is a Series 2 PXI interface with two high-speed CAN ports. It belongs to the PXI-8461 hardware family supported by NI-CAN.

ManufacturerNational Instruments

ModelPXI-8461/2

Part Number777707-02

Product TypeDual-port high-speed CAN interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8461/2

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI

CAN ports2 high-speed CAN ports

Hardware generationSeries 2

Manufacturer part number777707-02

Driver familyNI-CAN

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

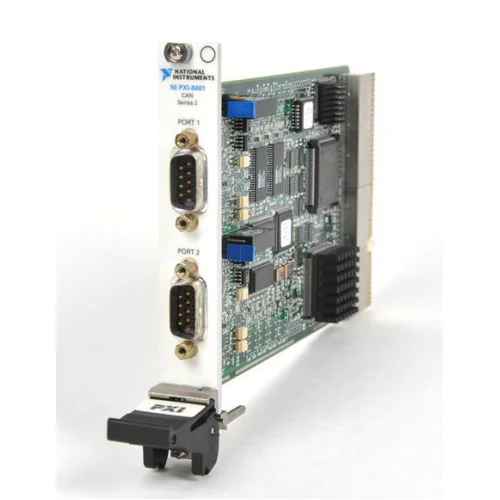

The PXI-8461/2 provides two high-speed CAN interfaces within a PXI system. NI identifies this exact model as a Series 2 interface, distinguishing it from the single-port PXI-8461 configuration.

An NI-published avionics test example uses two PXI-8461/2 interfaces in a PXI mainframe to monitor four CAN buses and transmit control data to control panels under test.

Two high-speed CAN ports in one PXI interface.
Series 2 CAN hardware architecture.
PXI-8461 one-port and two-port hardware is listed in the NI-CAN 18.5 supported hardware documentation.
