Home / Shop / PXI-8433/4

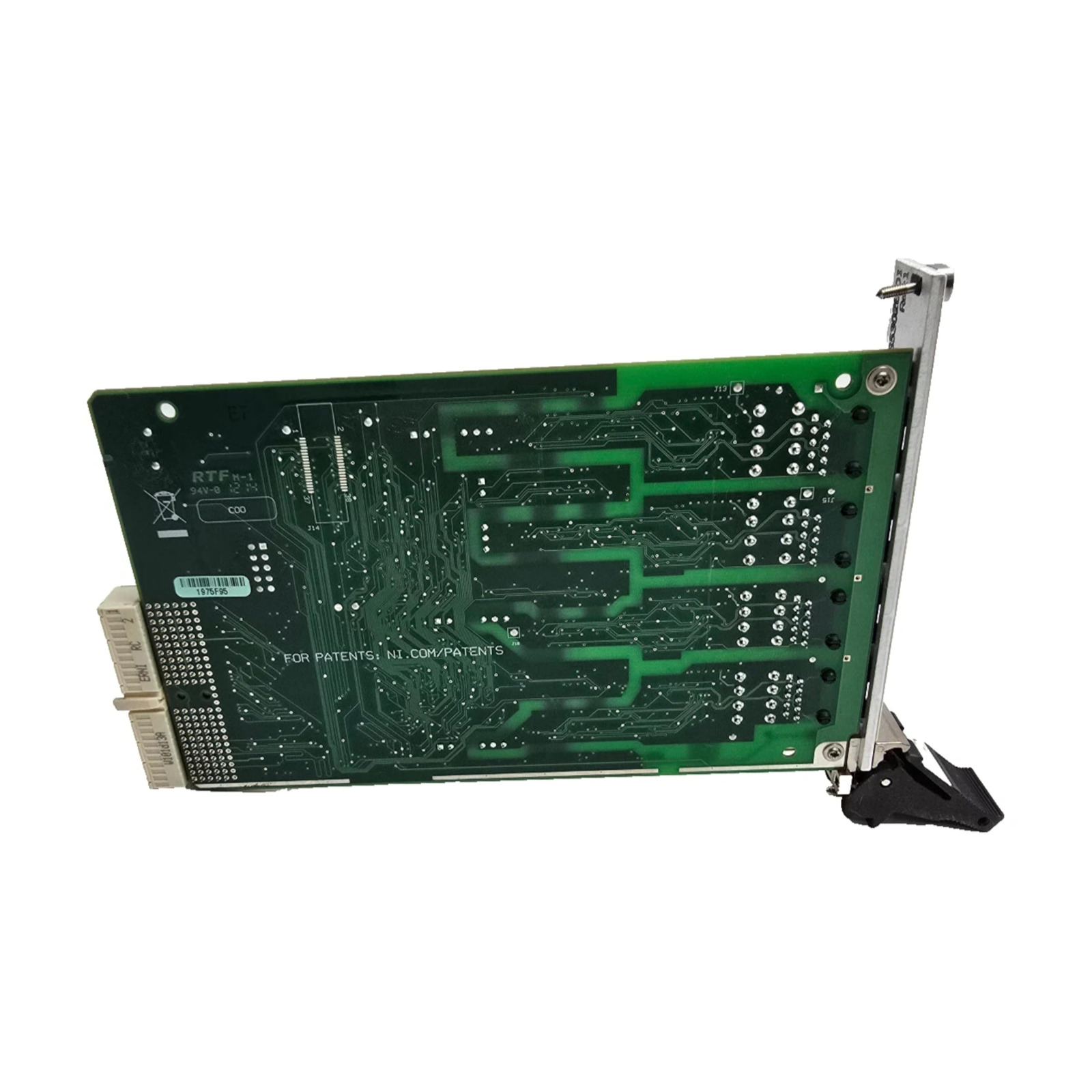

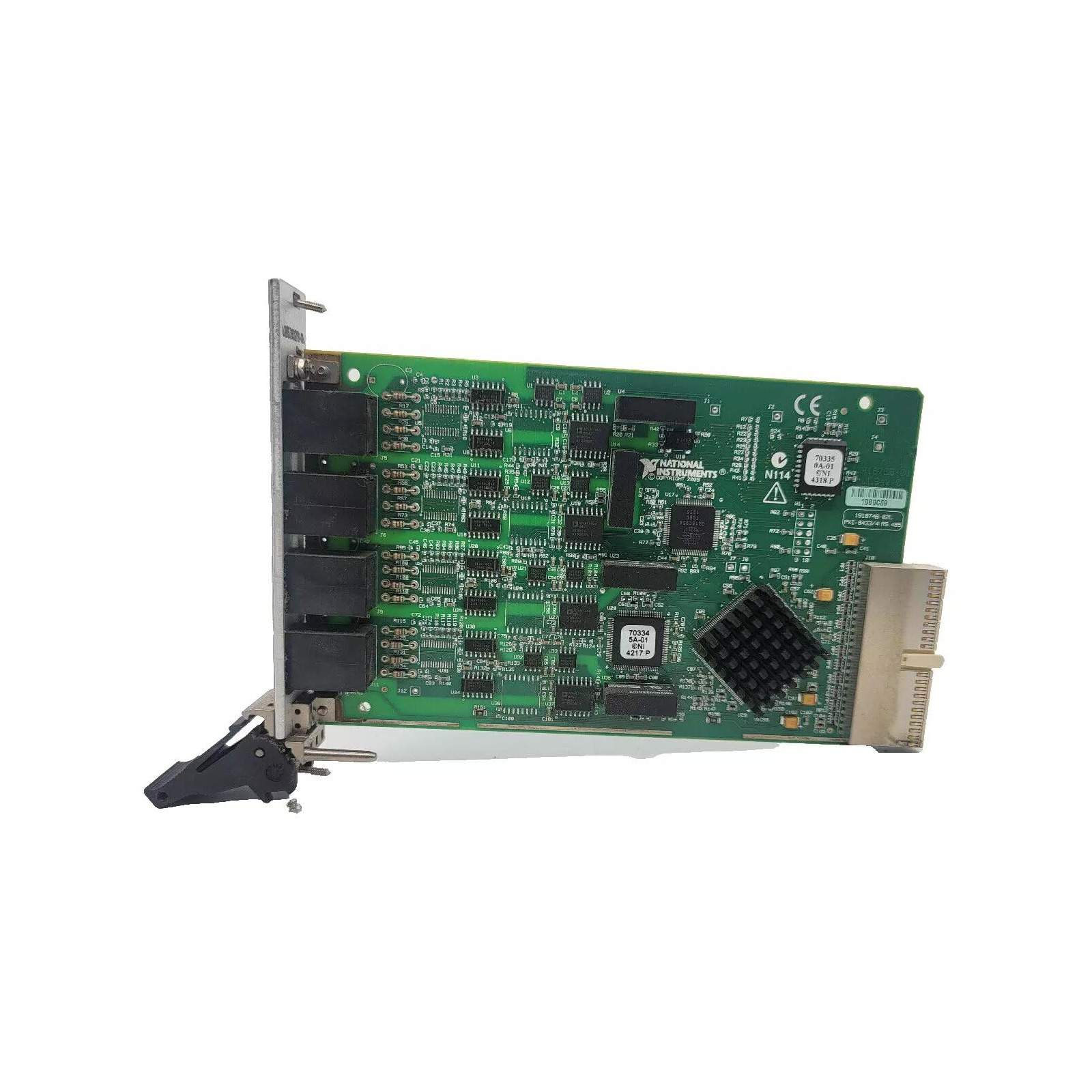

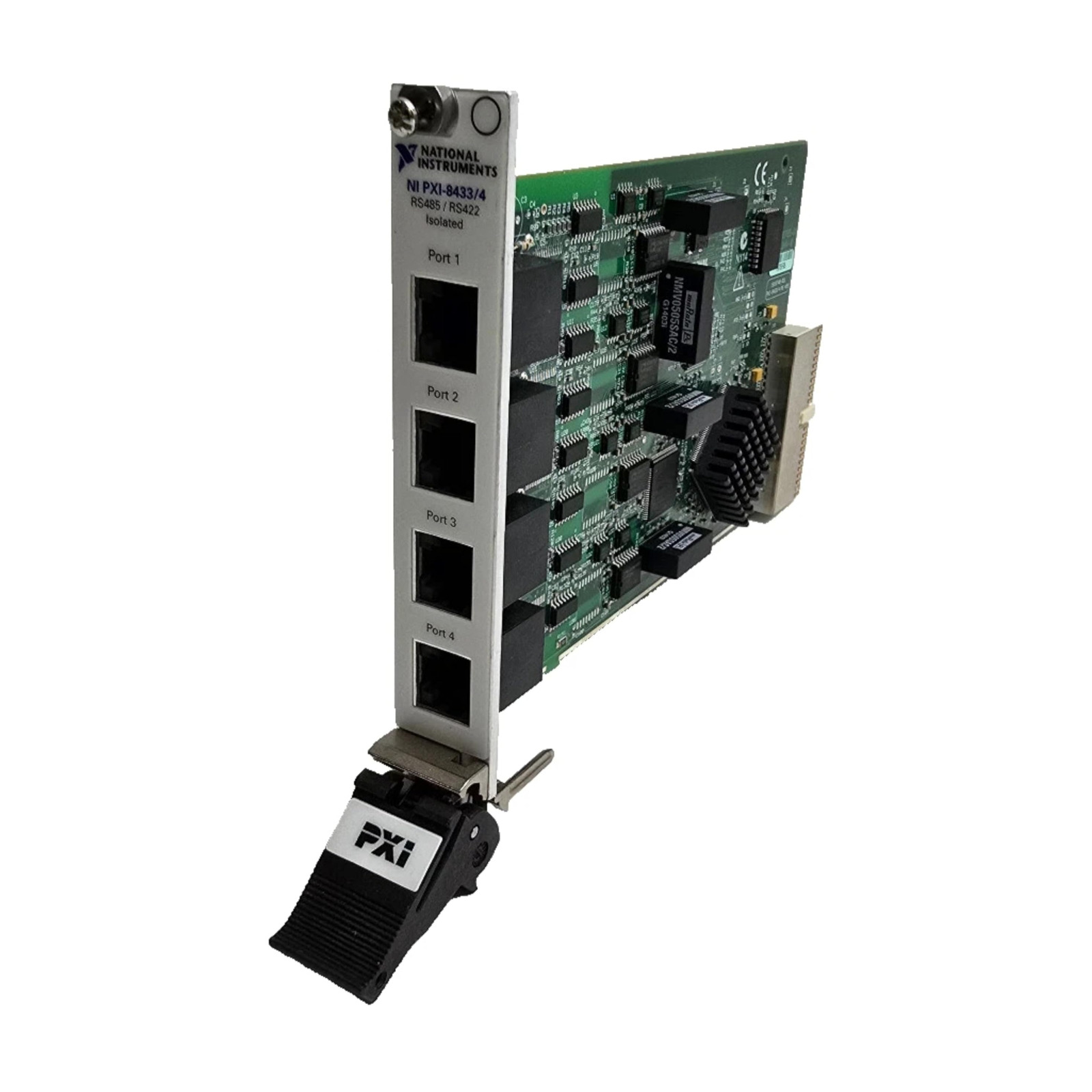

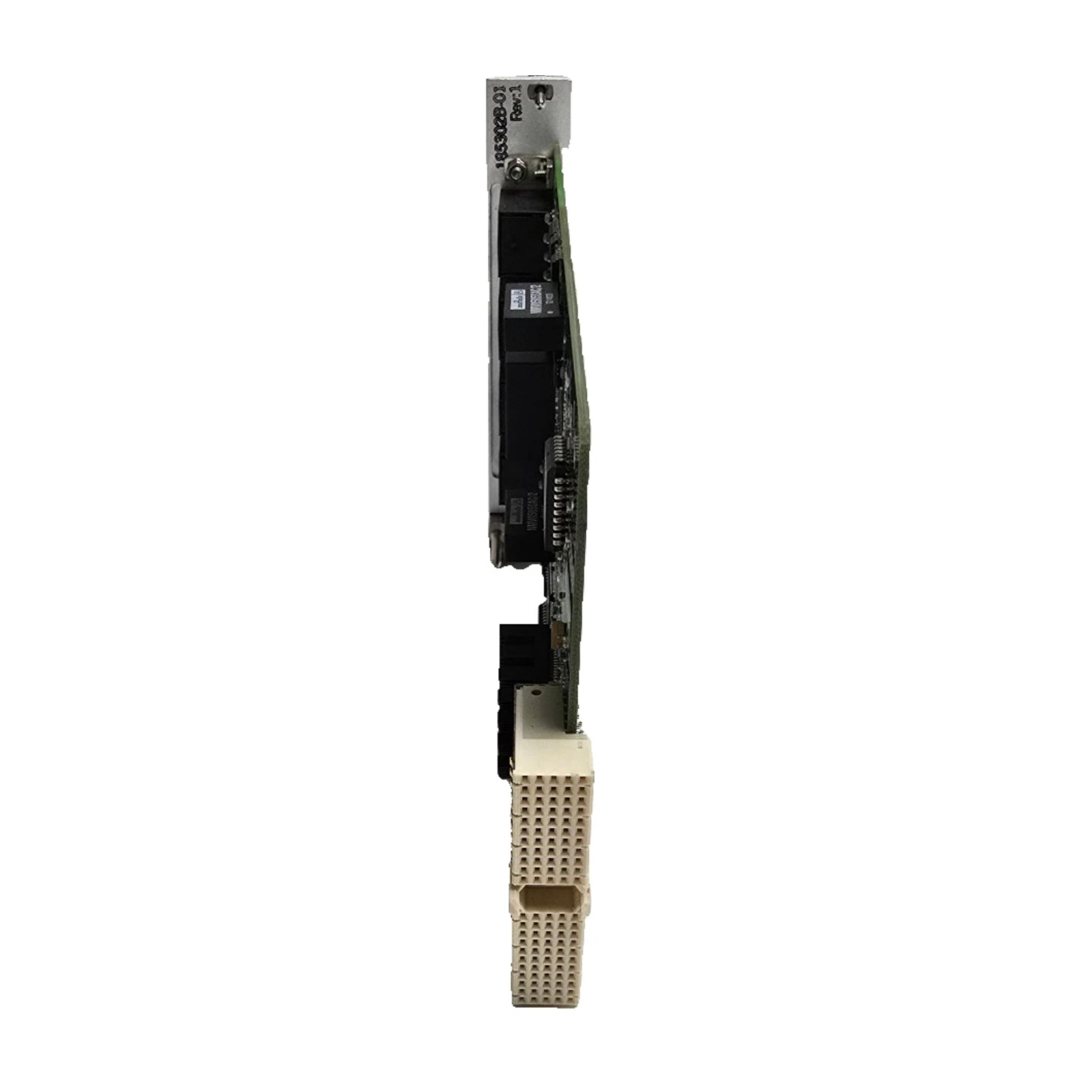

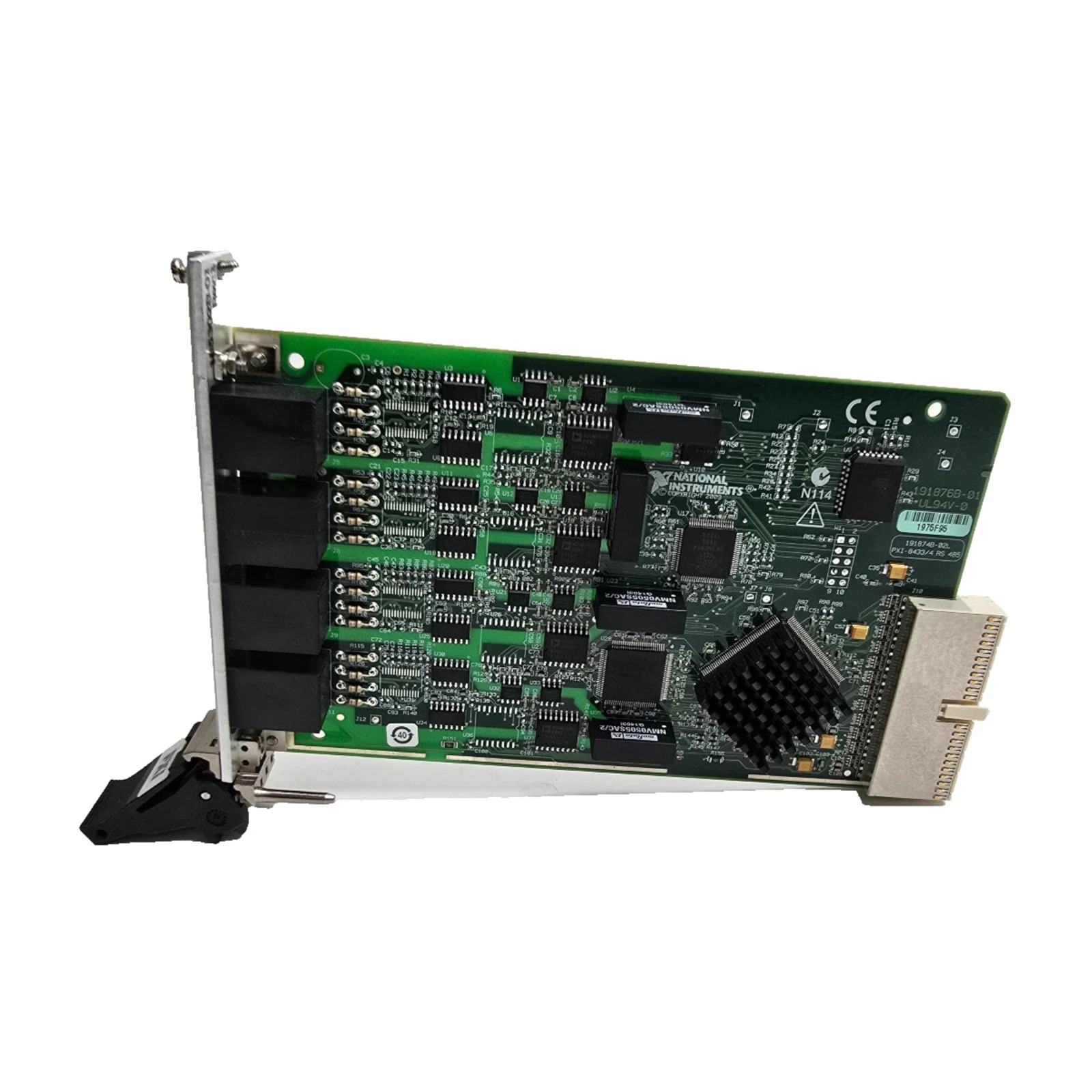

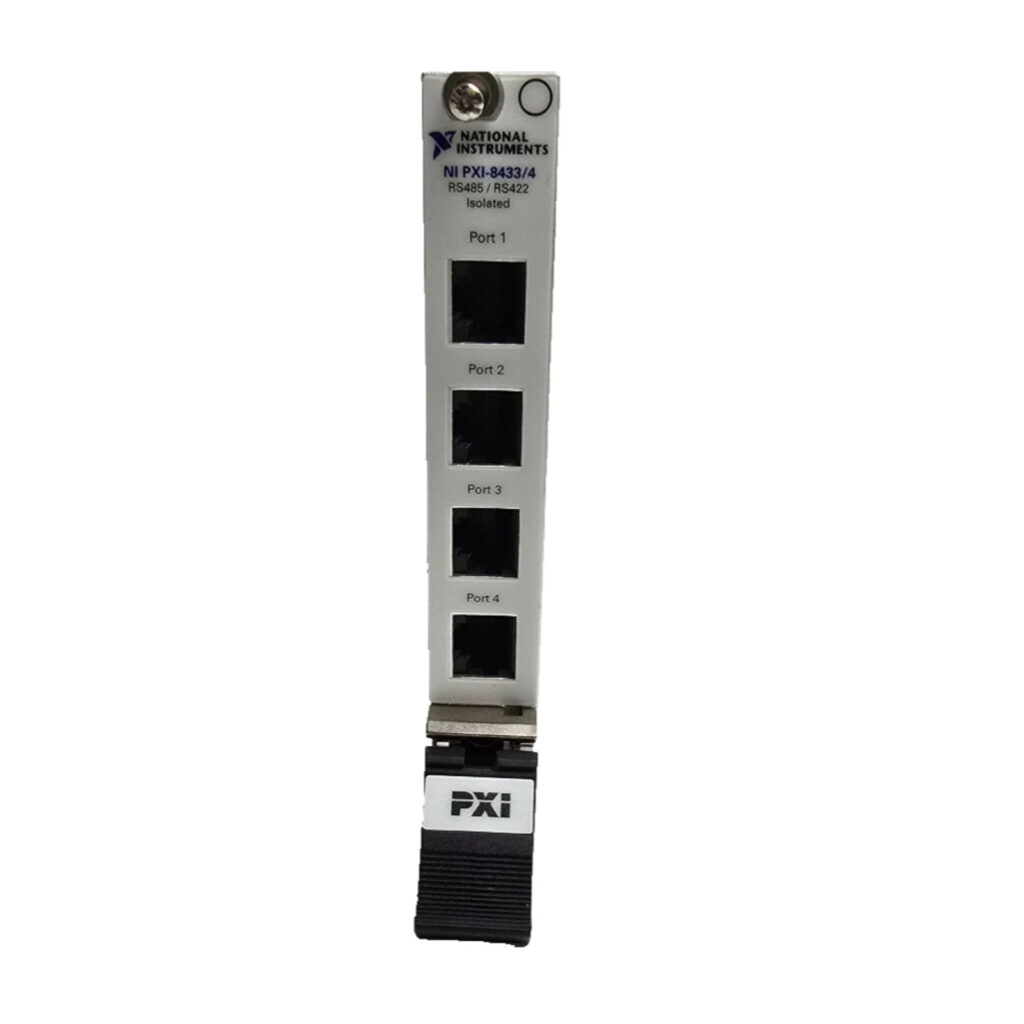

National Instruments PXI-8433-4 product image 1
National Instruments PXI-8433-4 product image 1 additional viewNational Instruments PXI-8433-4 product image 1 additional viewNational Instruments PXI-8433-4 product image 1 additional viewNational Instruments PXI-8433-4 product image 1 additional viewNational Instruments PXI-8433-4 product image 1 additional view
7 images: additional views below.Click to enlarge
National Instruments · PXI

PXI-8433/4

The National Instruments PXI-8433/4 is a four-port isolated RS-485/RS-422 serial interface module for PXI systems. It provides isolation between ports and between the ports and host PC.

ManufacturerNational Instruments
ModelPXI-8433/4
Product TypeIsolated RS-485/RS-422 serial interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8433/4

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformPXI
Serial ports4
ProtocolsRS-485 and RS-422
IsolationPort-to-port and port-to-PC
Maximum baud rate3 Mbaud; 2 Mbaud in RS-485 two-wire auto-control mode
Serial connector type10P10C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-8433/4 adds four isolated differential serial ports to a PXI system for communication with RS-485 and RS-422 equipment. NI lists this model among the interfaces supported by NI-Serial 21.3.

The module uses 10P10C serial connectors and has a listed FIFO size of 128 bytes. Check the NI connector pinout and transceiver-mode requirements before selecting cables or configuring the serial bus.

  • Four serial ports supporting RS-485 and RS-422.
  • Port-to-port and port-to-host isolation.
  • Baud rates up to 3 Mbaud, with a 2 Mbaud limit for RS-485 two-wire auto-control mode.
  • 10P10C serial connections and a listed 128-byte FIFO.
Verified specifications

Technical data

Verified product specifications.

Bus interfacePXI
Number of serial ports4 ports
Supported serial protocolsRS-485; RS-422
Isolation typePort-to-port; port-to-PC
Maximum baud rate3 Mbaud
Maximum baud rate in RS-485 two-wire auto-control mode2 Mbaud
Serial connector type10P10C
FIFO size128 bytes
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

System platform

PXI-8433/4

Four-port isolated RS-485/RS-422 interface

Driver reference

Listed in NI-Serial 21.3 supported hardware.

Verify chassis slot suitability, driver and operating-system support, and cable pinout for the intended system.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI Serial Hardware Specifications and Features GuideHardware Specifications And Features Guide · docs-be.ni.com
Open →
NI-Serial 21.3 ReadmeDriver Readme And Supported Hardware · ni.com
Open →
PXI-8433/4 Product CertificationsProduct Certification Resources · ni.com
Open →
Archived NI Support: Overvoltage Protection in NI PXI-8433Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-8433/4 support RS-232?

NI specifies RS-485 and RS-422 for this model, not RS-232.

What is the maximum baud rate?

The listed maximum is 3 Mbaud. RS-485 two-wire auto-control mode is limited to 2 Mbaud.

What connectors does the PXI-8433/4 use?

NI lists 10P10C connectors for this model. Consult the hardware guide's 10-position modular jack pin descriptions when selecting or wiring cables.

Are the serial ports isolated from each other?

Yes. NI identifies both port-to-port and port-to-host isolation for the PXI-8433/4.
