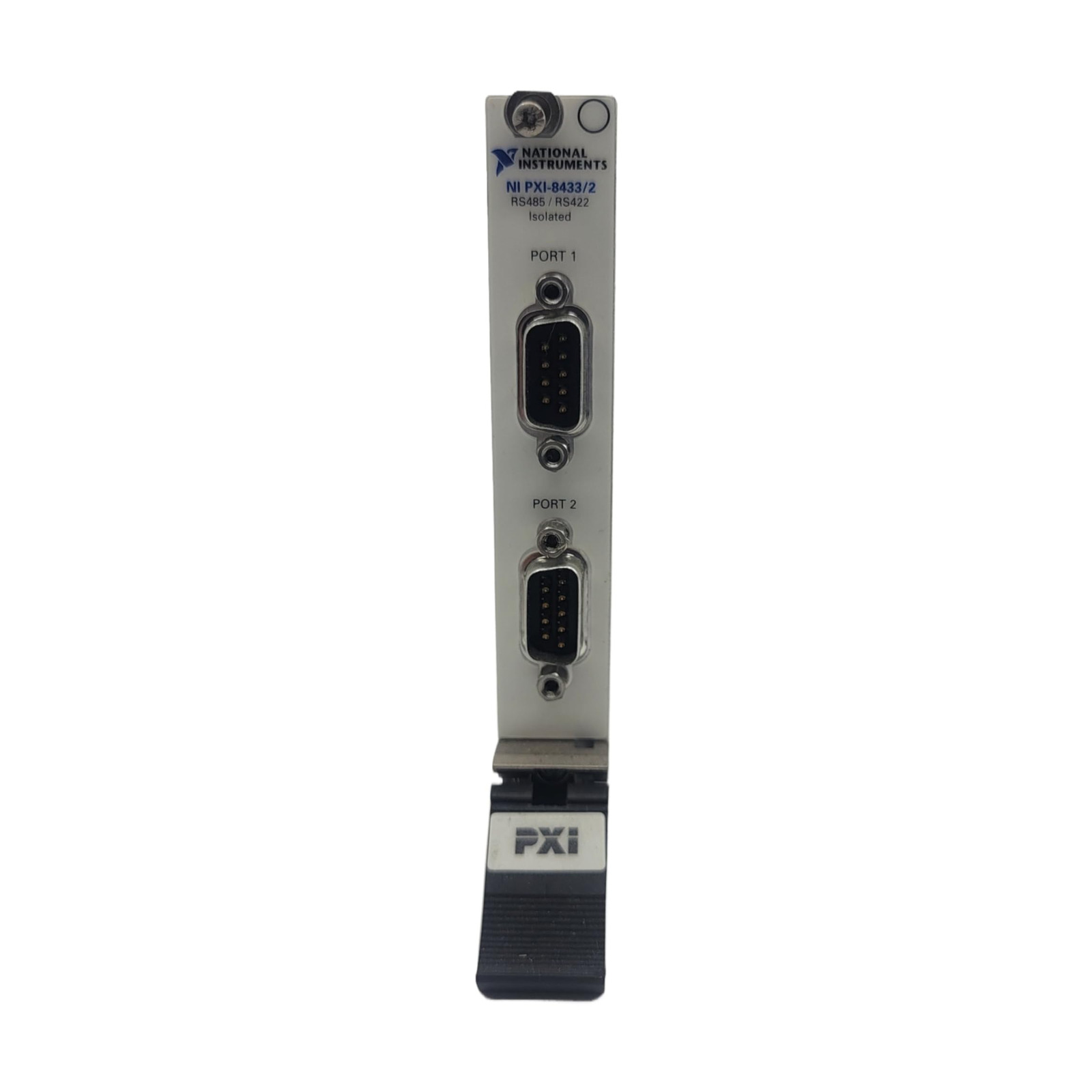

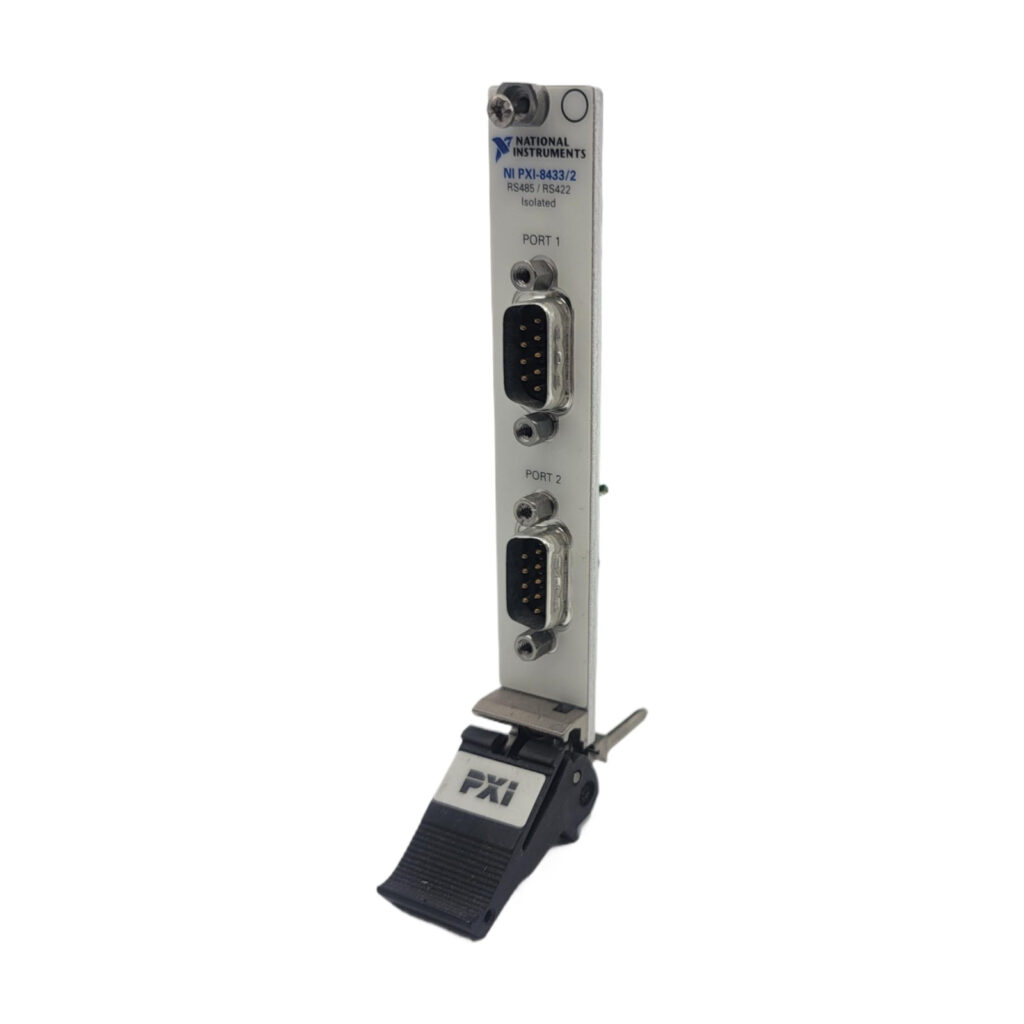

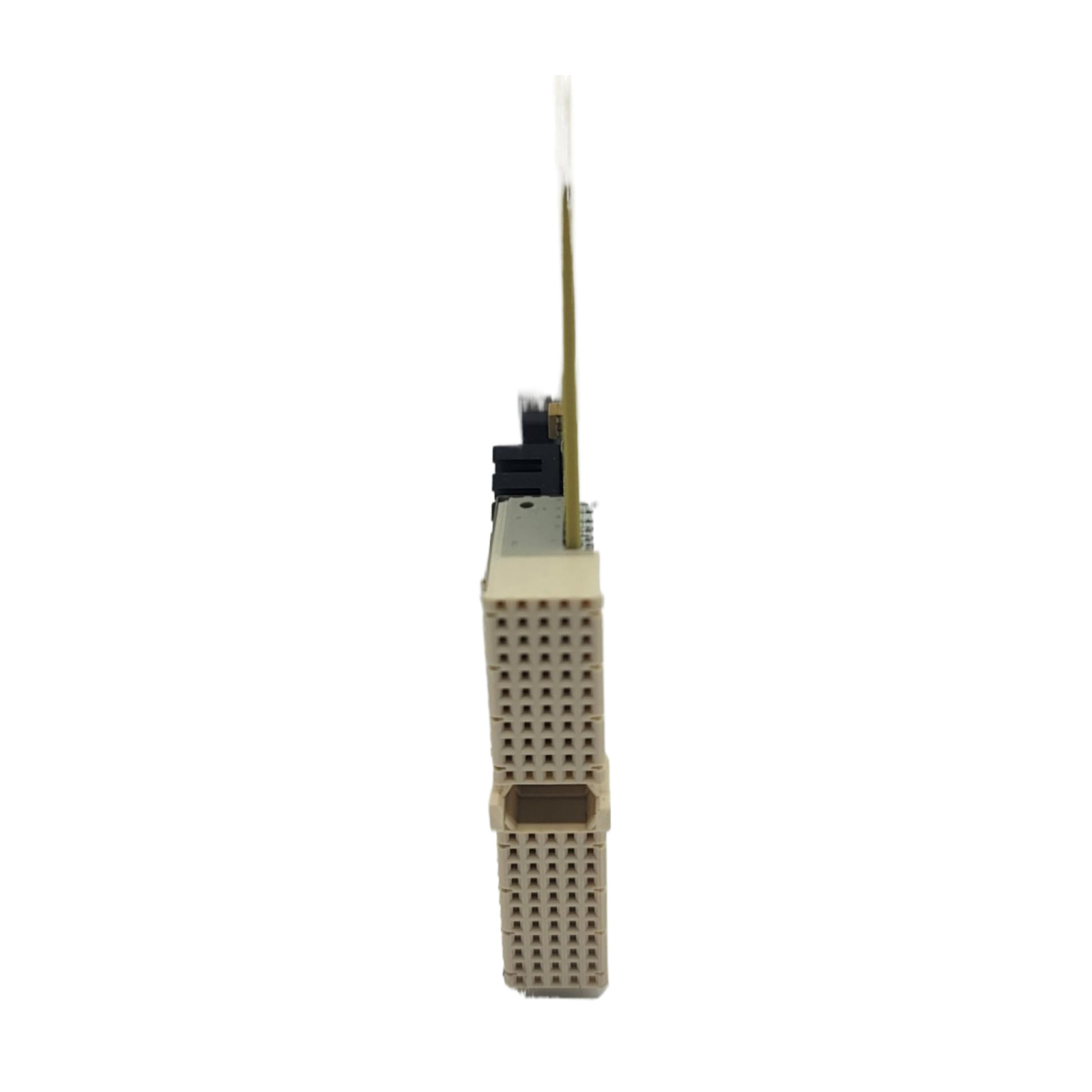

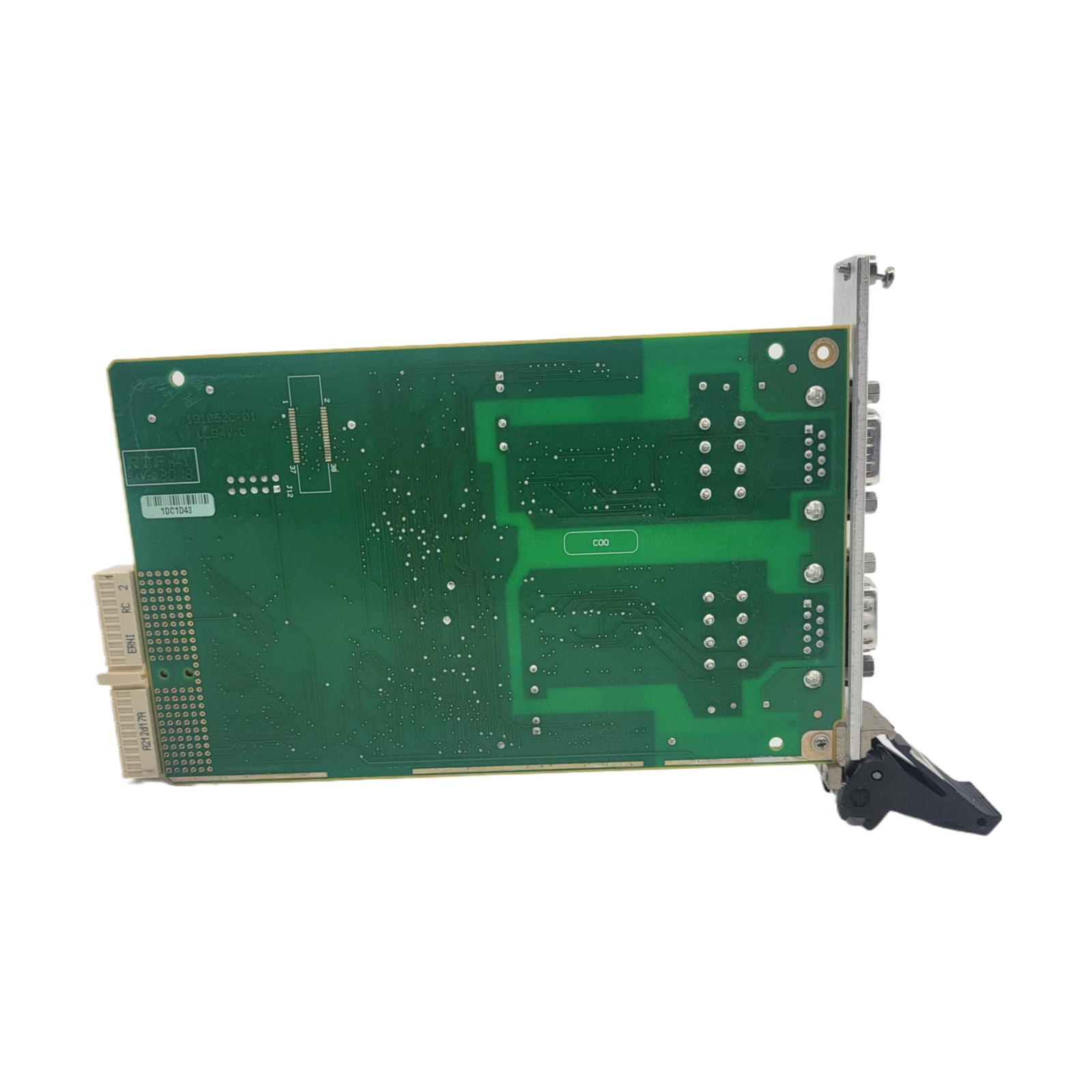

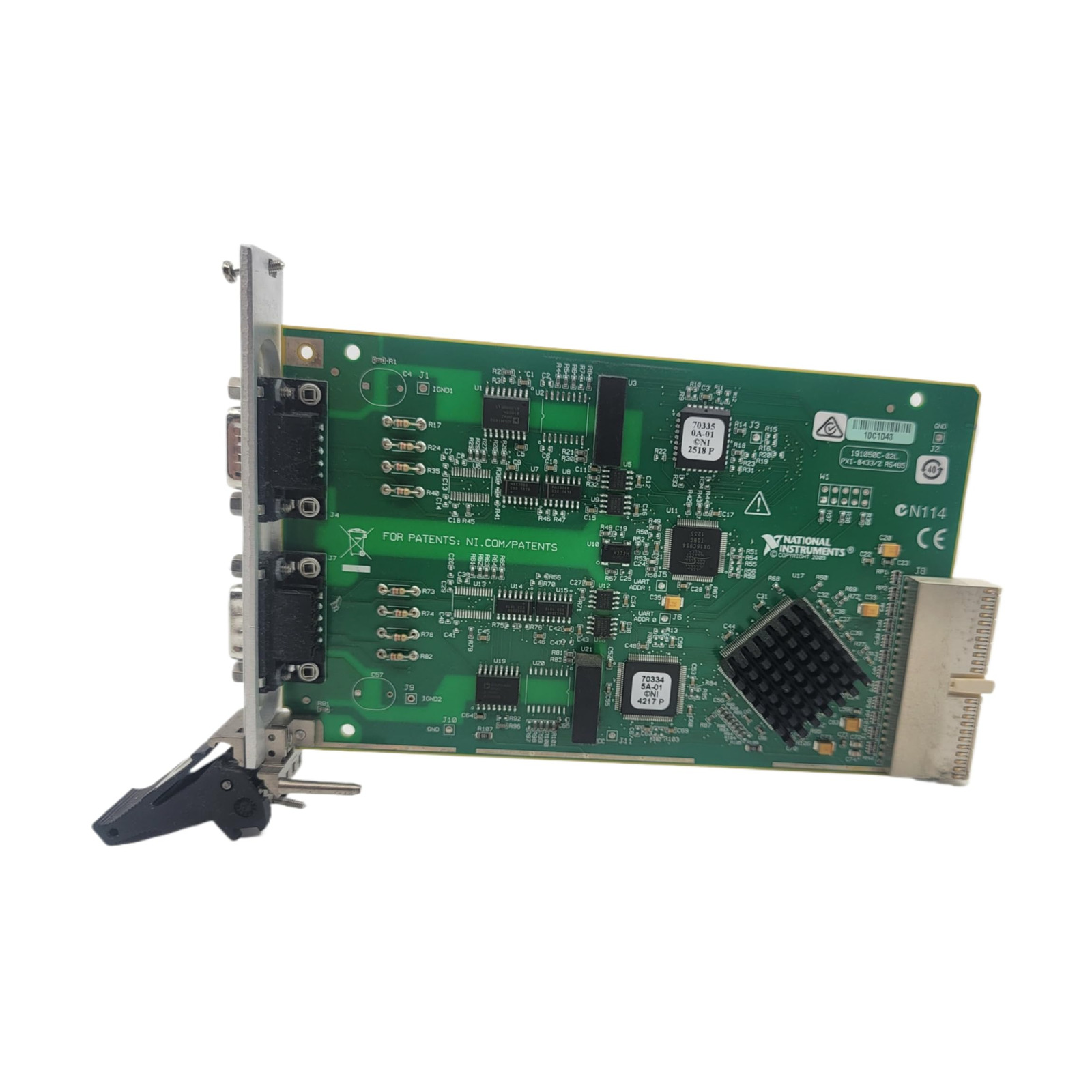

National Instruments PXI-8433-2 product image 1
National Instruments PXI-8433-2 product image 1 additional viewNational Instruments PXI-8433-2 product image 1 additional viewNational Instruments PXI-8433-2 product image 1 additional viewNational Instruments PXI-8433-2 product image 1 additional view
5 images: additional views below.Click to enlarge
National Instruments · PXI

PXI-8433/2

The NI PXI-8433/2 provides two isolated RS-422/RS-485 serial ports for PXI systems. It supports selectable two-wire and four-wire transceiver modes.

ManufacturerNational Instruments
ModelPXI-8433/2
Part Number779744-01
Product TypeIsolated RS-422/RS-485 serial interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8433/2

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Serial ports2
ProtocolsRS-422 and RS-485
IsolationPort-to-port and port-to-PC
ConnectorsDB-9 male
Maximum baud rate3 Mbaud; 2 Mbaud in two-wire automatic-control mode
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This module connects a PXI system to industrial RS-422 and RS-485 devices. NI identifies its bus connection as PXI Hybrid and provides isolation between ports and between the ports and PC.

The hardware guide lists DB-9 male connectors and a 128-byte FIFO. The maximum baud rate is mode-dependent: two-wire automatic RS-485 transceiver control is limited to 2 Mbaud rather than the overall 3 Mbaud maximum.

  • Two isolated RS-422/RS-485 serial channels.
  • Selectable two-wire and four-wire modes for half-duplex and full-duplex communication.
  • DMA transfers, multithreading and multiprocessor support.
  • Serial interfaces appear as standard COM ports.
Verified specifications

Technical data

Verified product specifications.

Bus connectionPXI Hybrid
Serial channels2 ports
Serial protocolsRS-422; RS-485
Isolation typePort-to-port; port-to-PC
Maximum baud rate3 Mbaud
Maximum baud rate in two-wire automatic-control mode2 Mbaud
Connector typeDB-9 male
FIFO size128 bytes
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-8433/2

Two-port isolated serial interface

Driver reference

NI-Serial 21.3 lists the PXI-8433/2 among supported PXI interfaces.

Check the intended chassis slot and the NI-Serial release requirements for your operating system before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-8433/2 Official Product PageProduct Page · ni.com
Open →
NI Serial Hardware Specifications and Features GuideHardware Specifications Guide · docs-be.ni.com
Open →
NI-Serial 21.3 ReadmeDriver Readme · ni.com
Open →
Serial Hardware Specifications, Connectors and Baud-Rate LimitsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-8433/2 support RS-232?

NI lists RS-422 and RS-485 for this model, not RS-232.

How does the PXI-8433/2 differ from the PXI-8433/4?

The PXI-8433/2 has two ports with DB-9 male connectors. The PXI-8433/4 has four ports and uses 10P10C connectors.
