National Instruments · PXI

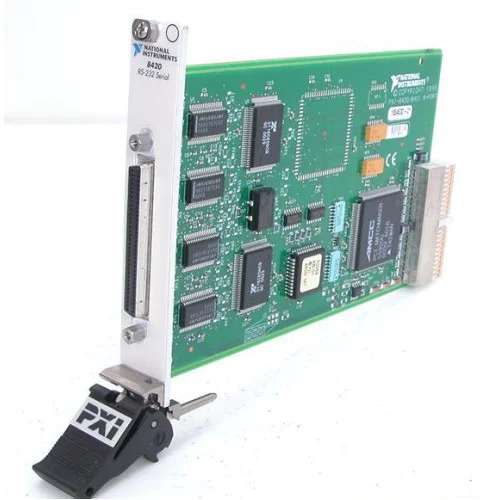

PXI-8420/8

The National Instruments PXI-8420/8 adds eight RS-232 serial ports to a PXI system. It uses a 68-pin SCSI-type connector and supports a maximum baud rate of 115.2 kbit/s.

ManufacturerNational Instruments

ModelPXI-8420/8

Part Number777733-08

Product TypeEight-port RS-232 serial interface module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8420/8

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Serial ports8 RS-232

Maximum baud rate115.2 kbit/s

I/O connector68-pin SCSI type

IsolationNon-isolated

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-8420/8 belongs to NI's PXI serial hardware family. Its 16550-compatible UART architecture supports standard PC COM-port operation, while FIFO buffering reduces susceptibility to interrupt latency.

Software selection is important for this legacy interface: NI documents that NI-Serial 17.0 removed support for the PXI-8420 family. Verify the intended driver and operating-system combination before integration.

Eight RS-232 ports on one PXI interface.
16550-compatible UARTs for standard PC COM-port compatibility.
FIFO buffering helps accommodate interrupt latency.
Plug-and-Play architecture supports switchless configuration.

Verified specifications

Technical data

Verified product specifications.

Platform	PXI
Serial standard	RS-232
Port count	8 ports
Maximum baud rate	115.2 kbit/s
I/O connector	68-pin SCSI type
Isolation	No
FIFO size	64 bytes
Board dimensions	100 × 160 mm

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

PXI-8420/8

RS-232 interface

Device-side connections

A breakout cable converts the module's 68-pin connector to eight male DB-9 connectors.

Confirm legacy driver support and the required breakout cable before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI Serial Legacy Hardware Specifications and Features GuideSpecifications And Features Guide · docs-be.ni.com

Open →

Getting Started with Your PXI Serial Hardware and Software for Windows NTArchived Installation And User Guide · docs-be.ni.com

Open →

NI-Serial 21.3 ReadmeDriver Release Notes · ni.com

Open →

Legacy serial hardware specifications and connector informationTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-8420/8 provide RS-485 ports?

No. This model provides eight non-isolated RS-232 ports.

Does NI-Serial 17.0 support the PXI-8420/8?

No. NI lists the PXI-8420 family among the interfaces whose support was removed in NI-Serial 17.0. Check an earlier driver's documentation against your operating system.

Can applications access the interface as standard COM ports?

NI's PXI serial hardware guide documents standard PC COM-port compatibility through 16550-compatible UARTs.
