PXI-8320

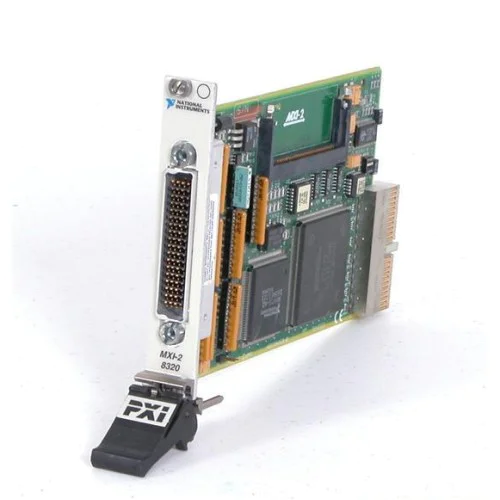

1 image: Click to enlarge
National Instruments · PXI / CompactPCI

PXI-8320

The NI PXI-8320 links a PXI or CompactPCI computer to MXIbus. This 3U, 32-bit module installs in a peripheral slot and can operate as an MXIbus system controller.

ManufacturerNational Instruments
ModelPXI-8320
Part Number777573-01
Product TypeMXI-2 bus interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8320

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Format3U, 32-bit PXI/CompactPCI
SlotOne peripheral slot
MXI transfer rate33 MB/s peak; 23 MB/s sustained
Optional DRAMUp to 16 MB
