PXI-8250

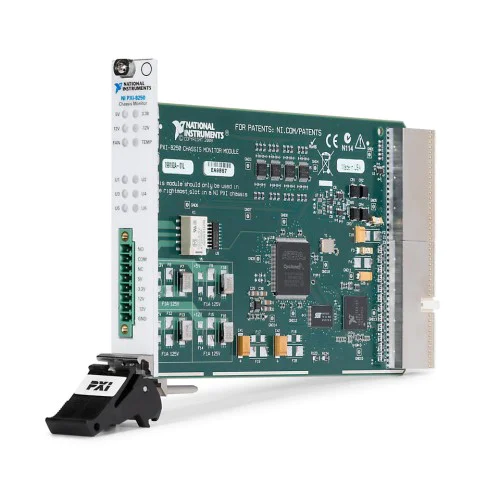

The NI PXI-8250 monitors chassis voltage, fan and temperature health, reporting status through six front-panel LEDs. A relay can toggle when monitored parameters fall outside chassis operating specifications.

ManufacturerNational Instruments

ModelPXI-8250

Part Number780316-01

Product TypePXI System Monitoring Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8250

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Part number780316-01

Status displaySix system status LEDs

Supported chassisNI PXI-1042, PXI-1042Q and PXI-1045
