NI (National Instruments) · PXI Hybrid

PXI-8232

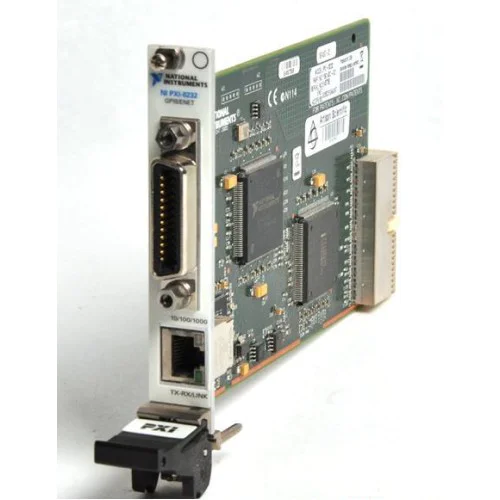

The NI PXI-8232 is a single-slot PXI instrument-control module that combines an IEEE 488 GPIB controller with a Gigabit Ethernet port.

ManufacturerNI (National Instruments)

ModelPXI-8232

Part Number781753-01

Product TypeGigabit Ethernet, IEEE 488 PXI GPIB Instrument Control Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8232

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Supported Operating SystemWindows, Real-Time OS

Has Ethernet PortYes

Bus ConnectionPXI Hybrid

Operating Temperature Range0 °C to 55 °C

Maximum Baud Rate7885 kB/s

Driver Development kitNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-8232 brings GPIB instrument control and Gigabit Ethernet connectivity into one PXI slot. Its front-panel GPIB and RJ45 connections support integrating external instruments into a PXI-based system.

The module uses an Intel 82540EM Gigabit Ethernet controller and is bus powered. The preserved NI product data lists a PXI Hybrid bus connection and Windows and Real-Time OS support; confirm the required driver and operating-system versions for the intended host before integration.

Combines GPIB control and a Gigabit Ethernet port in a single-slot module.
Provides front-panel GPIB (IEEE 488) and RJ45 connections.
Uses the Intel 82540EM Gigabit Ethernet controller.
Provides a nominal Gigabit Ethernet link rate of 1,000 Mbit/s.
Operates from PXI bus power.

Verified specifications

Technical data

Verified product specifications.

Driver Development kit	No
Supported Operating System	Windows, Real-Time OS
Has Ethernet Port	Yes
Bus Connection	PXI Hybrid
Operating Temperature Range	0 °C to 55 °C
Maximum Baud Rate	7885 kB/s
Front Connection Type	GPIB (IEEE 488), RJ45
Supported Power Input	Bus Powered
NI part numbers	781753-01
