National Instruments · PXI

PXI-8156B

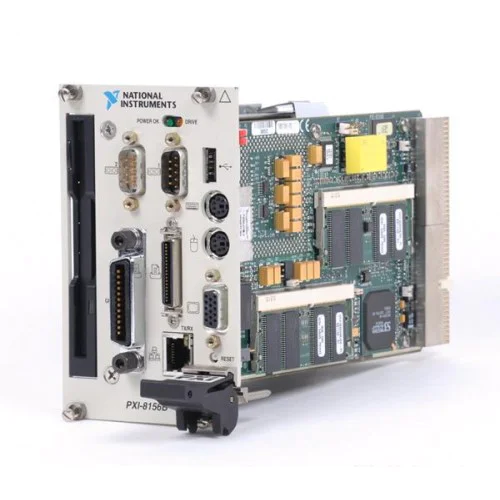

The National Instruments PXI-8156B is an embedded PXI system controller. NI documents its use with the PXI-1011 chassis and lists software support for appropriately configured Phar Lap ETS real-time systems.

ManufacturerNational Instruments

ModelPXI-8156B

Product TypeEmbedded PXI controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8156B

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product roleEmbedded PXI system controller

Documented processor configuration333 MHz AMD K6-2

Documented chassisPXI-1011
