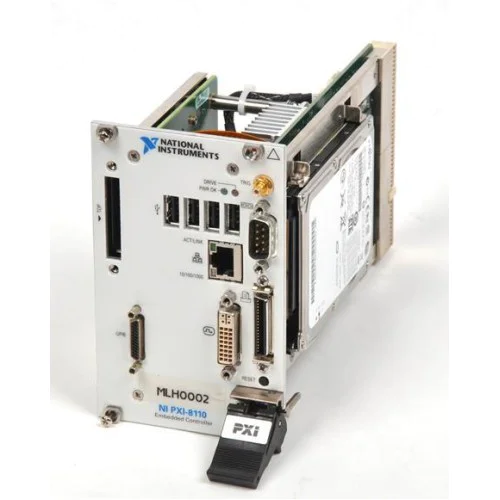

The NI PXI-8110 is a 2.26 GHz Intel Core 2 Quad embedded controller for PXI and CompactPCI systems, intended for modular instrumentation and data acquisition.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-8110 provides embedded computing for PXI and CompactPCI instrumentation systems. Its four processing cores support test, measurement and control workloads.
Integrated storage, Ethernet, USB and serial connectivity support peripheral connections within an instrument system.
Verified product specifications.
| CPU | Intel Core 2 Quad Q9100 |
|---|---|
| CPU frequency | 2.26 GHz |
| Memory type | DDR2 SDRAM, 800 MHz |
| Standard memory configuration | 2 GB |
| Maximum memory | 4 GB |
| Ethernet | One 10/100/1000BASE-TX port |
| USB | Four Hi-Speed USB 2.0 ports |
| Slot requirements | One system slot plus three controller expansion slots |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Instrumentation platform
Embedded controller
System controller slot, slot 1.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI identifies the PXI-8110 as an embedded controller for PXI and CompactPCI systems.
NI specifies 2 GB of standard DDR2 memory and a maximum of 4 GB. The installed capacity must be checked separately.
NI maintains a dedicated PXI-8110 Firmware and Additional Drivers download page. Check its release-specific operating-system requirements before installation.
