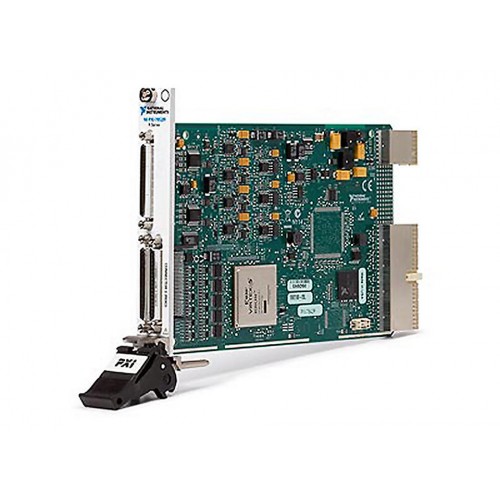

PXI-7853

Name: PXI-7853
Brand: NI (National Instruments)

The NI PXI-7853 is a multifunction reconfigurable PXI I/O module with a Virtex-5 LX85 FPGA. It provides 8 analog inputs, 8 analog outputs, 96 bidirectional digital channels, and a maximum analog input sample rate of 750 kS/s.

ManufacturerNI (National Instruments)

ModelPXI-7853

Part Number780341-01

Product TypeVirtex-5 LX85 FPGA, 750 kS/s PXI Multifunction Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7853

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate750 kS/s

Bus ConnectorPXI Hybrid

Maximum Clock Rate40 MHz

Bidirectional Digital Channels96

Digital I/O Logic Levels3.3 V, 5 V

Dynamic RAM (DRAM)0 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7853 combines analog input, analog output, and bidirectional digital I/O with a user-programmable Virtex-5 LX85 FPGA. The supplied structured record identifies part number 780341-01 as the PXI-7853R R Series Multifunction RIO Device; this card retains the catalog model name PXI-7853.

The FPGA provides onboard processing and direct control of I/O signals, with customization through the LabVIEW FPGA Module. A dedicated analog-to-digital converter per input channel supports simultaneous sampling and independent channel timing and triggering, including multirate sampling.

User-programmable Virtex-5 LX85 FPGA for onboard processing and direct I/O control.
Eight analog inputs and eight analog outputs, both with 16-bit resolution and -10 V to 10 V ranges.
Dedicated analog-to-digital conversion per input channel supports simultaneous sampling and independent timing and triggering.
Maximum analog input sample rate of 750 kS/s and maximum analog output update rate of 1 MS/s.
96 bidirectional digital channels with listed 3.3 V and 5 V logic levels.
PXI Hybrid bus connector and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	750 kS/s
Bus Connector	PXI Hybrid
Maximum Clock Rate	40 MHz
Number of Bidirectional Digital Channels	96
Digital I/O Logic Levels	3.3 V, 5 V
Dynamic RAM (DRAM)	0 MB
FPGA	Virtex-5 LX85
Analog Input Voltage Range	-10 V to 10 V
Supports Peer To Peer Streaming	No
Number of Analog Input Channels	8
Number of Analog Output Channels	8
Supported Hardware Platform	PXI
Reconfigurable	Yes
Maximum Digital Update Rate	25 ns
Maximum Analog Update Rate	1 MS/s
Analog Output Voltage Range	-10 V to 10 V
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	3.97 mV
Conformal Coated	No
Output Voltage Range	0 V to 3.3 V
Enclosed	Yes
Front Connection Type	VHDCI
Signaling Type	Single-Ended
Maximum Number of Single-Ended Analog Input Channels	8
Maximum Number of Differential Analog Input Channels	8
Analog Input Resolution	16 bits
Number of Voltage Output Channels	8
Analog Output Resolution	16 bits
Operating Temperature Range	0 °C to 55 °C
Electrical Signal Measured	Voltage
Supported Power Input	Bus Powered
NI part numbers	780341-01
