PXI-7852

Name: PXI-7852
Brand: NI (National Instruments)

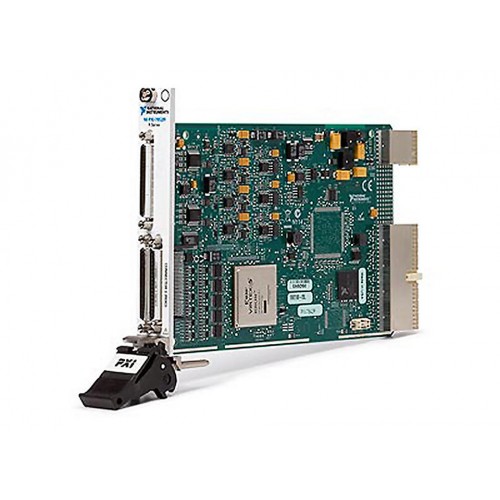

The NI PXI-7852 is a reconfigurable PXI multifunction I/O module with a Virtex-5 LX50 FPGA, 8 analog inputs, 8 analog outputs and 96 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelPXI-7852

Part Number780340-01

Product TypeVirtex-5 LX50 FPGA, 750 kS/s PXI Multifunction Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7852

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate750 kS/s

Bus ConnectorPXI Hybrid

Maximum Clock Rate40 MHz

Bidirectional Digital Channels96

Digital I/O Logic Levels3.3 V, 5 V

Dynamic RAM (DRAM)0 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7852 combines analog input, analog output and digital I/O with a user-programmable Virtex-5 LX50 FPGA for onboard processing and direct control of I/O signals. The listed maximum clock rate is 40 MHz, with analog input sampling up to 750 kS/s.

Its analog inputs and outputs provide 16-bit resolution and -10 V to 10 V ranges. Simultaneous sampling supports multichannel acquisition, while VHDCI front connections provide access to the module's I/O.

Reconfigurable Virtex-5 LX50 FPGA for user-defined onboard processing and I/O control.
Eight 16-bit analog input channels with a -10 V to 10 V range and simultaneous sampling.
Eight 16-bit analog output channels with a -10 V to 10 V range and maximum update rate of 1 MS/s.
Ninety-six bidirectional digital channels with listed 3.3 V and 5 V logic levels.
PXI Hybrid bus connector and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	750 kS/s
Bus Connector	PXI Hybrid
Maximum Clock Rate	40 MHz
Number of Bidirectional Digital Channels	96
Digital I/O Logic Levels	3.3 V, 5 V
Dynamic RAM (DRAM)	0 MB
FPGA	Virtex-5 LX50
Analog Input Voltage Range	-10 V to 10 V
Supports Peer To Peer Streaming	No
Number of Analog Input Channels	8
Number of Analog Output Channels	8
Supported Hardware Platform	PXI
Reconfigurable	Yes
Maximum Digital Update Rate	25 ns
Maximum Analog Update Rate	1 MS/s
Analog Output Voltage Range	-10 V to 10 V
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	3.97 mV
Conformal Coated	No
Output Voltage Range	0 V to 3.3 V
Enclosed	Yes
Front Connection Type	VHDCI
Signaling Type	Single-Ended
Maximum Number of Single-Ended Analog Input Channels	8
Maximum Number of Differential Analog Input Channels	8
Analog Input Resolution	16 bits
Number of Voltage Output Channels	8
Analog Output Resolution	16 bits
Operating Temperature Range	0 °C to 55 °C
Electrical Signal Measured	Voltage
Supported Power Input	Bus Powered
NI part numbers	780340-01
