PXI-7842

Name: PXI-7842
Brand: NI (National Instruments)

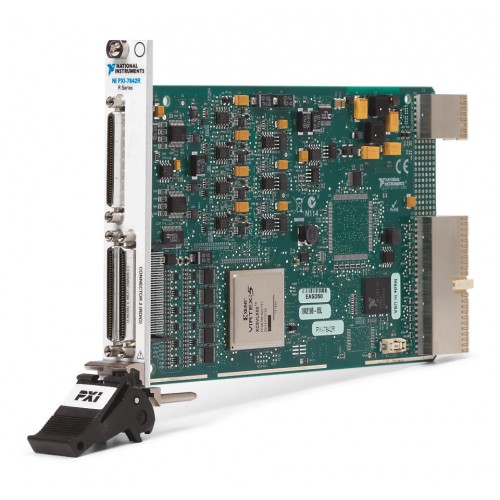

The NI PXI-7842, part number 780338-01, is a PXI multifunction reconfigurable I/O module with a Virtex-5 LX50 FPGA, 8 analog inputs, 8 analog outputs and 96 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelPXI-7842

Part Number780338-01

Product TypeVirtex-5 LX50 FPGA, 200 kS/s PXI Multifunction Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7842

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate200 kS/s

Bus ConnectorPXI Hybrid

Maximum Clock Rate40 MHz

Bidirectional Digital Channels96

Digital I/O Logic Levels3.3 V, 5 V

Dynamic RAM (DRAM)0 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7842 combines analog acquisition, analog generation and digital I/O with a user-programmable FPGA in a PXI module. Its Virtex-5 LX50 FPGA supports onboard processing and direct control of I/O signals, with LabVIEW FPGA Module customization for timing and control.

The analog section provides 16-bit input and output resolution with -10 V to 10 V ranges. Analog inputs support simultaneous sampling at a maximum sample rate of 200 kS/s, while the maximum analog output update rate is 1 MS/s. The module also provides 96 bidirectional digital channels and VHDCI front connections.

Virtex-5 LX50 FPGA with reconfigurable operation.
Eight 16-bit analog inputs with simultaneous sampling and a -10 V to 10 V input range.
Eight 16-bit analog outputs with a -10 V to 10 V output range and a maximum update rate of 1 MS/s.
96 bidirectional digital channels with listed 3.3 V and 5 V logic levels.
PXI Hybrid bus connector, VHDCI front connections and bus-powered operation.
Operating temperature range of 0 °C to 55 °C.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	200 kS/s
Bus Connector	PXI Hybrid
Maximum Clock Rate	40 MHz
Number of Bidirectional Digital Channels	96
Digital I/O Logic Levels	3.3 V, 5 V
Dynamic RAM (DRAM)	0 MB
FPGA	Virtex-5 LX50
Analog Input Voltage Range	-10 V to 10 V
Supports Peer To Peer Streaming	No
Number of Analog Input Channels	8
Number of Analog Output Channels	8
Supported Hardware Platform	PXI
Reconfigurable	Yes
Maximum Digital Update Rate	25 ns
Maximum Analog Update Rate	1 MS/s
Analog Output Voltage Range	-10 V to 10 V
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	3.97 mV
Conformal Coated	No
Output Voltage Range	0 V to 3.3 V
Enclosed	Yes
Front Connection Type	VHDCI
Signaling Type	Single-Ended
Maximum Number of Single-Ended Analog Input Channels	8
Maximum Number of Differential Analog Input Channels	8
Analog Input Resolution	16 bits
Number of Voltage Output Channels	8
Analog Output Resolution	16 bits
Operating Temperature Range	0 °C to 55 °C
Electrical Signal Measured	Voltage
Supported Power Input	Bus Powered
NI part numbers	780338-01
