NI (National Instruments) · PXI

PXI-7813

Name: PXI-7813
Brand: NI (National Instruments)

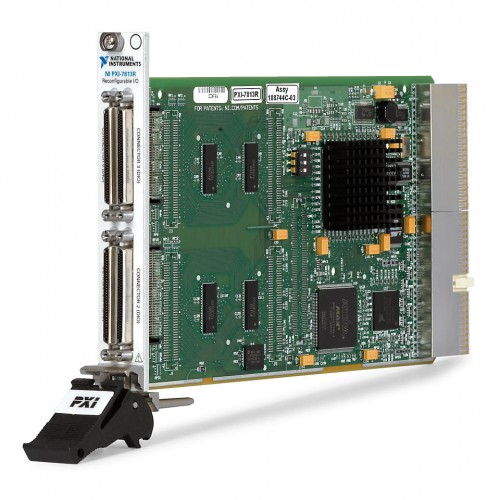

The NI PXI-7813, part number 779362-01, is a reconfigurable PXI digital RIO module with a Virtex-II 3M gate FPGA and 160 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelPXI-7813

Part Number779362-01

Product TypeVirtex-II 3M Gate FPGA, 160 DIO, PXI Digital Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7813

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectorPXI

Maximum Clock Rate40 MHz

Bidirectional Digital Channels160

Digital I/O Logic Levels3.3 V, 5 V

Dynamic RAM (DRAM)0 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7813 provides a user-programmable FPGA for onboard processing and flexible digital I/O operation. With LabVIEW FPGA, its digital lines can be configured for inputs, outputs, counter/timers, PWM, encoder inputs or specialized communication protocols.

The module combines a PXI bus interface with VHDCI front connectivity and single-ended signaling. Its reconfigurable architecture supports custom onboard decision making and hardware-timed operation.

Virtex-II 3M FPGA for reconfigurable digital I/O operation.
160 bidirectional digital channels.
Maximum acquisition and generation rates of 40 MHz.
Single-ended digital signaling through VHDCI front connections.
Listed output voltage range of 0 V to 3.3 V.

Verified specifications

Technical data

Verified product specifications.

Bus Connector	PXI
Maximum Clock Rate	40 MHz
Number of Bidirectional Digital Channels	160
Digital I/O Logic Levels	3.3 V, 5 V
Dynamic RAM (DRAM)	0 MB
FPGA	Virtex-II 3M
Supports Peer To Peer Streaming	No
Reconfigurable	Yes
Bus Connection	PXI
Front Connection Type	VHDCI
Signaling Type	Single-Ended
Supported Hardware Platform	PXI
Digital I/O Termination	0 Ohm
Output Voltage Range	0 V to 3.3 V
Maximum Acquisition Rate	40 MHz
Maximum Generation Rate	40 MHz
Maximum Active Load	40
Maximum Data Rate	40 MHz
Module Width	1
Onboard Memory	0 MB
Supports Hardware Compare	No
NI part numbers	779362-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-7813

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the part number for the PXI-7813?

The listed NI part number is 779362-01. The supplied structured record describes this part as the PXI-7813R 3M gate digital RIO module with 160 DIO.

How many digital channels does the PXI-7813 have?

It has 160 bidirectional digital channels with single-ended signaling.

What FPGA does the PXI-7813 use?

It uses a Virtex-II 3M FPGA for reconfigurable digital I/O operation.

What are the maximum acquisition and generation rates?

The listed maximum acquisition rate and maximum generation rate are each 40 MHz.

Does the listed 5 V logic level mean the module outputs 5 V?

No. The preserved specifications list digital I/O logic levels of 3.3 V and 5 V, but the output voltage range is listed separately as 0 V to 3.3 V. Consult NI's electrical specifications before connecting signals.
