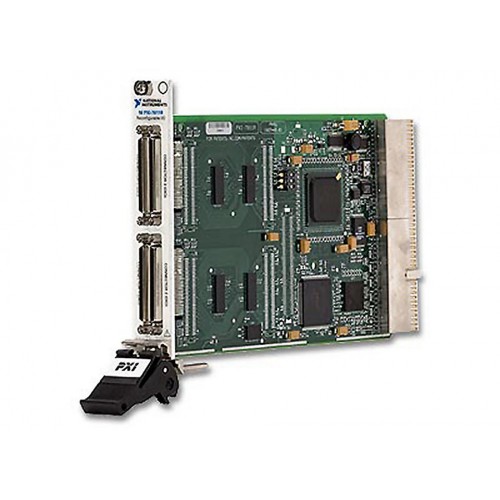

The National Instruments PXI-7811 is an R Series digital reconfigurable I/O module with 160 bidirectional digital lines and a user-programmable Virtex-II XC2V1000 FPGA.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-7811 combines digital I/O with onboard FPGA logic rather than a fixed-function analog acquisition architecture. Its 160 bidirectional lines and Virtex-II XC2V1000 FPGA provide the hardware foundation for user-defined digital behavior.
NI identifies this module within its R Series ecosystem, whose onboard FPGA is programmed using the LabVIEW FPGA Module. NI also provides model-specific cable and connector-block guidance for wiring the digital interfaces.
Verified product specifications.
| Bidirectional digital I/O lines | 160 lines |
|---|---|
| FPGA | Virtex-II XC2V1000 |
| Digital compatibility | TTL |
| I/O connectors | Four 68-pin female high-density VHDCI connectors |
| Operating temperature | 0 to 55 °C |
| Dimensions excluding connectors | 16 × 10 cm |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular reconfigurable I/O platform
Digital reconfigurable I/O module
LabVIEW FPGA Module
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It provides 160 bidirectional digital I/O lines and a Virtex-II XC2V1000 FPGA.
NI lists the SHC68-68-RDIO cable with SCB-68 or SCB-68A connector blocks for the PXI-7811. Follow the model-specific pinout when wiring either block.
Both provide 160 digital I/O lines. The PXI-7811 uses a Virtex-II XC2V1000 FPGA, while the PXI-7813 uses a Virtex-II XC2V3000 FPGA.
