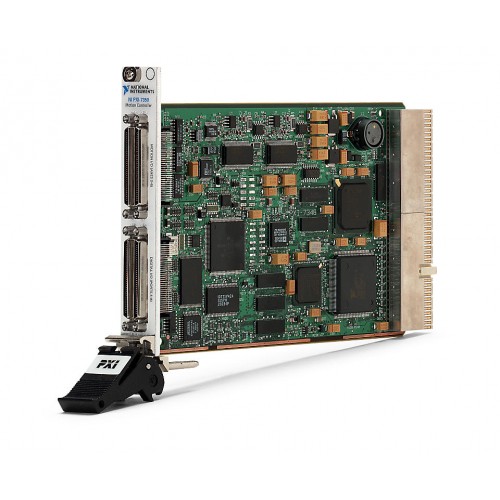

National Instruments PXI-7356 6-axis stepper/servo motion controller module
1 image: Click to enlarge
National Instruments · PXI

PXI-7356

The NI PXI-7356 is a six-axis PXI motion controller for stepper, brushed servo and brushless servo motors. It combines coordinated motion control with onboard analog acquisition and digital I/O.

ManufacturerNational Instruments
ModelPXI-7356
Part Number778540-06
Product Type6-axis stepper/servo motion controller module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7356

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Controlled axes6
Motor typesStepper, brushed servo and brushless servo
Analog input resolution16 bits
Digital I/O64 channels
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-7356 supports blended trajectories and coordinated circular, linear, point-to-point, gearing and vector-space control. NI describes operation in both embedded real-time and host-centric programming environments.

NI-Motion driver software supports simultaneous axis starts with individually defined acceleration and velocity profiles. Sinusoidal commutation provides brushless motor control.

  • Six-axis stepper and servo motion control.
  • Blended trajectories with coordinated linear and circular motion.
  • Eight onboard 16-bit analog-to-digital converters.
  • Sinusoidal commutation for brushless motor control.
Verified specifications

Technical data

Verified product specifications.

Number of axes6 axes
Supported axis typesStepper; brushed servo; brushless servo
Analog input resolution16 bits
Onboard analog-to-digital converters8 converters
Digital I/O channels64 channels
CommutationSinusoidal
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

PXI-7356

Six-axis motion controller

Driver

NI-Motion

Check the NI 7350 manual for drive interfaces and wiring before integrating the controller.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-7356 Product PageOfficial Product Page · ni.com
Open →
NI 7350 User Manual and SpecificationsArchived Family Manual And Specifications · docs-be.ni.com
Open →
NI 7350 User Manual and SpecificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which motor types does the PXI-7356 support?

It supports stepper, brushed servo and brushless servo axes.

Can the axes start together?

NI-Motion supports starting all axes simultaneously while each follows its defined acceleration and velocity profile.

Which manual covers this controller?

The NI 7350 User Manual and Specifications covers the PXI/PCI-7350 controller family.
