NI (National Instruments) · PXI Hybrid

PXI-6723

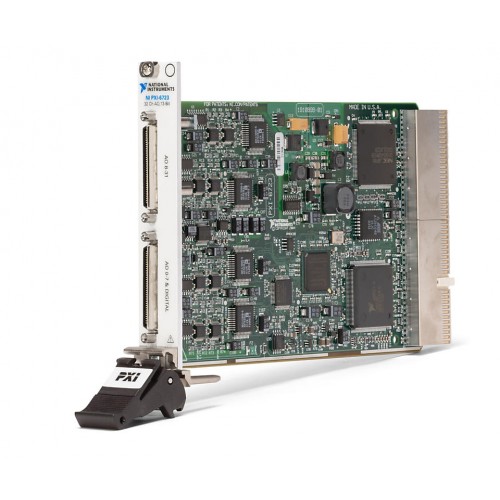

The NI PXI-6723, part number 778998-01, is a 32-channel PXI analog output module with 13-bit resolution and a maximum analog update rate of 800 kS/s. Its analog output voltage range is -10 V to 10 V.

ManufacturerNI (National Instruments)
ModelPXI-6723
Part Number778998-01
Product Type13-Bit, 32-Channel, 800 kS/s PXI Analog Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6723

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Output Channels32
Analog Output Resolution13 bits
Maximum Analog Update Rate800 kS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Hybrid
Bus ConnectionPXI Hybrid
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6723 provides 32 analog voltage output channels with 13-bit resolution and a -10 V to 10 V output range. Its specified maximum analog update rate is 800 kS/s.

Alongside its analog outputs, the module includes eight bidirectional digital I/O channels with 5 V TTL logic levels and two counters/timers. Digital triggering and external clocking capabilities support integration into timed measurement and control systems.

  • 32 analog output channels with 13-bit resolution.
  • Maximum analog update rate of 800 kS/s.
  • Analog output voltage range of -10 V to 10 V.
  • Eight bidirectional digital I/O channels with 5 V TTL logic levels.
  • Two counters/timers, plus digital triggering and external clocking capabilities.
  • VHDCI front connection and a maximum current drive of 5 mA.
Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels32
Analog Output Resolution13 bits
Maximum Analog Update Rate800 kS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Hybrid
Bus ConnectionPXI Hybrid
Analog Output IsolationNone
Number of Bidirectional Digital Channels8
Digital I/O Logic Levels5 V TTL
Operating Temperature Range0 °C to 55 °C
Number of Counters/Timers2
Front Connection TypeVHDCI
Maximum Current Drive5 mA
NI part numbers778998-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Hybrid

Bus Connector

PXI-6723

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXI-6723?

The listed NI part number is 778998-01.

How many analog outputs does the PXI-6723 provide?

It provides 32 analog output channels with 13-bit resolution and a specified maximum analog update rate of 800 kS/s.

What is the analog output voltage range?

The analog output voltage range is -10 V to 10 V. The outputs are not isolated.

Does the PXI-6723 include digital I/O and counters?

Yes. It includes eight bidirectional digital channels with 5 V TTL logic levels and two counters/timers.
