NI (National Instruments) PXI-6624 Isolated 48 VDC, 8-Channel PXI Counter/Timer Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXI-6624

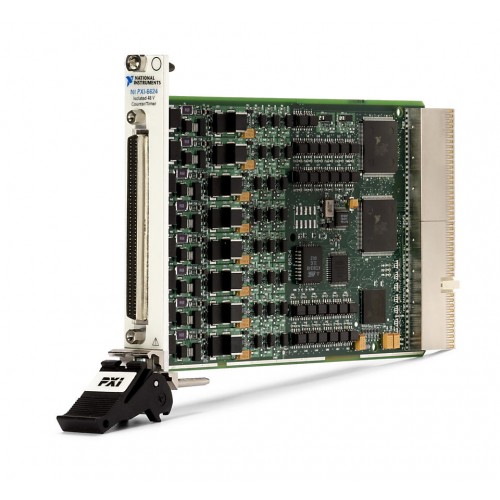

The NI PXI-6624 is an isolated 48 VDC, 8-channel PXI counter/timer module with 26 digital inputs and eight digital outputs. It supports counting, timing, encoder position measurement and pulse generation.

ManufacturerNI (National Instruments)
ModelPXI-6624
Part Number778975-01
Product TypeIsolated 48 VDC, 8-Channel PXI Counter/Timer Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6624

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Hybrid
Digital I/O Isolation60 V Ch-Ch Isolation
Number of Counters/Timers8
Measure Frequency400 kHz
Bus ConnectionPXI Hybrid
Onboard High-Precision OscillatorNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6624 performs event counting, time period and frequency measurement, quadrature encoder position measurement, and pulse-width measurement. It also supports pulse and pulse-train generation.

The module combines eight counter/timers with 26 digital inputs and eight digital outputs. Its isolated 48 VDC I/O provides an interface for counting and timing signals within a PXI system, using a PXI Hybrid bus connection and SCSI Type front connection.

  • Eight counter/timers with frequency measurement up to 400 kHz.
  • 48 V digital I/O logic levels with 60 V channel-to-channel isolation.
  • Supports retriggerable pulse generation and two-signal edge separation measurements.
  • Supports continuous buffered event counting and continuous buffered pulse-train measurements.
  • PXI Hybrid bus connection and SCSI Type front connection.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Hybrid
Onboard High-Precision OscillatorNo
Digital I/O Isolation60 V Ch-Ch Isolation
Number of Counters/Timers8
Measure Frequency400 kHz
Bus ConnectionPXI Hybrid
Front Connection TypeSCSI Type
Digital I/O Logic Levels48 V
Operating Temperature Range0 °C to 55 °C
Supported Hardware PlatformPXI
NI part numbers778975-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-6624

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many counter/timers does the PXI-6624 provide?

The PXI-6624 provides eight counter/timers, with frequency measurement up to 400 kHz.

What digital I/O does the PXI-6624 provide?

It provides 26 digital inputs and eight digital outputs, with 48 V digital I/O logic levels and 60 V channel-to-channel isolation.

What measurements and generation tasks does it support?

It supports event counting, time period and frequency measurement, quadrature encoder position measurement, pulse-width measurement, pulse generation and pulse-train generation.

Does the PXI-6624 include an onboard high-precision oscillator?

No. The supplied verified specifications list no onboard high-precision oscillator.

What is the operating temperature range?

The operating temperature range is 0 °C to 55 °C.
