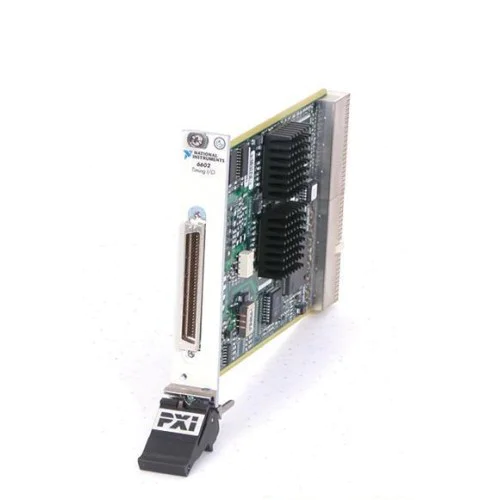

The National Instruments PXI-6602 is a PXI timing and digital I/O module with eight 32-bit counter/timers and 32 TTL/CMOS-compatible digital lines.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Part of the NI 660x family, the PXI-6602 provides counter-based measurement and signal generation in a modular PXI system. Its functions include event counting, time and frequency measurement, encoder position measurement, and pulse or square-wave generation.
Digital I/O transfers are static, without handshaking. The maximum source-frequency specification describes counter input capability, not a digital I/O sampling rate.
Verified product specifications.
| Counter/timer channels | 8 up/down |
|---|---|
| Counter resolution | 32 bits |
| Digital I/O channels | 32 |
| Digital I/O transfer | Static; no handshaking |
| Maximum source frequency without prescaling | 80 MHz |
| Maximum source frequency with prescaling | 125 MHz |
| Counter data transfers | DMA, up to 3 channels; interrupts |
| I/O connector | 68-pin female SCSI-II type |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular chassis platform
Timing and digital I/O module
NI 660x counter/timer devices
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It has eight 32-bit counter/timers. The four-counter configuration belongs to the NI 6601, not the PXI-6602.
Supported functions include event counting, time and frequency measurement, encoder position measurement, and pulse or square-wave generation.
The PXI-6608 is a related counter/timer module with an oven-controlled crystal oscillator. NI describes using it in PXI slot 2 to improve the backplane clock reference used by a PXI-6602.
