PXI-6515

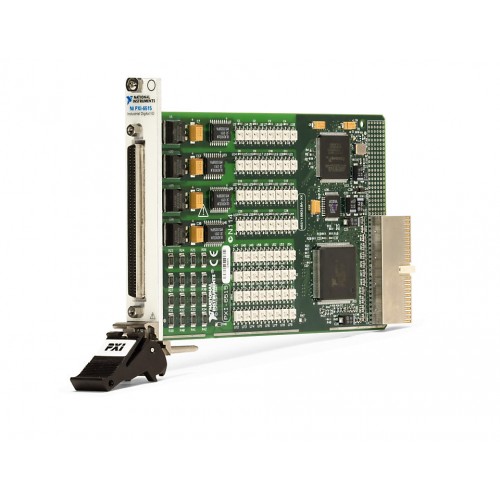

The NI PXI-6515, part number 778964-01, is a bank-isolated PXI digital I/O module with 32 sink/source inputs and 32 sink outputs. It provides programmable input filters, power-up states, and digital I/O watchdogs.

ManufacturerNI (National Instruments)
ModelPXI-6515
Part Number778964-01
Product Type64-Channel, ±30 VDC, 32 Sink/Source Inputs, 32 Sink Outputs, Bank-Isolated PXI Digital I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6515

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Hybrid
Single-Ended Digital I/O Channel Current Drive500 mA
Digital I/O Logic Levels24 V
Digital Input Only Channels32
Digital Output Only Channels32
Digital Input Voltage Range-30 V to 30 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6515 is an industrial digital I/O interface for PXI systems. Its 64 channels are divided into 32 input-only and 32 output-only channels, with eight banks of isolated channels and single-ended signaling.

Each input bank can be wired in a source or sink configuration. Software-selectable input filters support glitch reduction and switch or relay debouncing, while programmable power-up states and digital I/O watchdogs provide configurable output behavior during startup and fault conditions.

  • 32 sink/source digital inputs and 32 sinking digital outputs.
  • Bank-isolated architecture with eight banks of channels.
  • 24 V digital I/O logic levels with single-ended signaling.
  • Programmable input filters for glitches, spikes, and switch or relay debouncing.
  • Software-configurable power-up output states.
  • Digital I/O watchdogs can switch outputs to a configurable safe state following a computer or application fault.
  • PXI Hybrid bus connection and SCSI-type front connection.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Hybrid
Single-Ended Digital I/O Channel Current Drive500 mA
Digital I/O Logic Levels24 V
Number of Digital Input Only Channels32
Number of Digital Output Only Channels32
Digital Input Voltage Range-30 V to 30 V
Output Voltage Range-30 V to 30 V
Signaling TypeSingle-Ended
Bus ConnectionPXI Hybrid
Front Connection TypeSCSI Type
Supported Hardware PlatformPXI
Module Width1
NI part numbers778964-01
