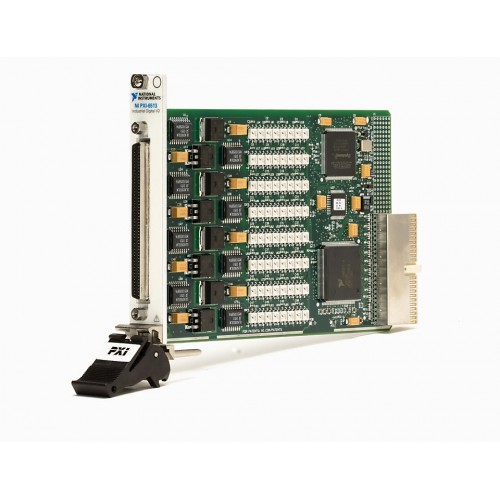

PXI-6513

The NI PXI-6513 is a PXI digital output module with 64 bank-isolated sink outputs and a 0 V to 30 V output range. Programmable power-up states and digital watchdog functionality support defined output behavior during startup or computer and application faults.

ManufacturerNI (National Instruments)
ModelPXI-6513
Part Number778971-01
Product Type64-Channel, ±30 VDC, Sink Outputs, Bank-Isolated PXI Digital I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6513

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Hybrid
Single-Ended Digital I/O Channel Current Drive500 mA
Digital I/O Logic Levels24 V
Digital Output Only Channels64
Output Voltage Range0 V to 30 V
Signaling TypeSingle-Ended
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6513, NI part number 778971-01, is an industrial digital output interface with 64 output-only channels arranged in eight isolated banks. Its sink-output design uses single-ended signaling and 24 V digital logic levels.

The module connects through a PXI Hybrid bus interface and uses a SCSI Type front connection. Programmable power-up states allow initial output states to be configured in software, while digital watchdogs can switch outputs to a configurable safe state after a computer or application fault.

  • 64 digital output-only channels with bank-isolated sink outputs.
  • Output voltage range of 0 V to 30 V with 24 V digital logic levels.
  • 500 mA single-ended digital I/O channel current drive.
  • Programmable power-up states for software-configured initial output behavior.
  • Digital watchdog functionality can switch outputs to a configurable safe state following a computer or application fault.
  • PXI Hybrid bus connection in a one-module-width format.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Hybrid
Single-Ended Digital I/O Channel Current Drive500 mA
Digital I/O Logic Levels24 V
Number of Digital Output Only Channels64
Output Voltage Range0 V to 30 V
Signaling TypeSingle-Ended
Bus ConnectionPXI Hybrid
Front Connection TypeSCSI Type
Supported Hardware PlatformPXI
Module Width1
NI part numbers778971-01
