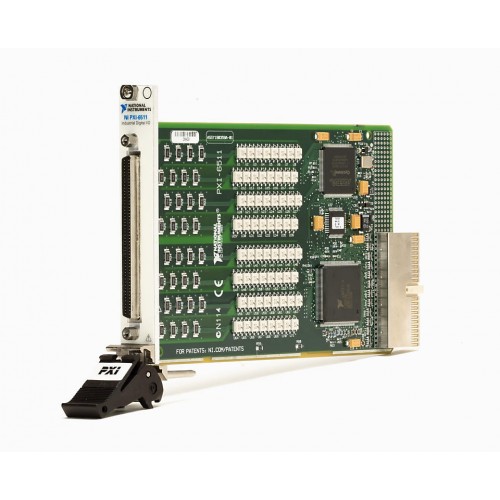

PXI-6511, front view
PXI-6511, front view additional viewPXI-6511, front view additional viewPXI-6511, front view additional view
4 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXI-6511

The NI PXI-6511 is a PXI digital input module with 64 bank-isolated sink/source inputs and a -30 V to 30 V input range. Its eight isolated banks and software-selectable input filters support industrial digital signal monitoring.

ManufacturerNI (National Instruments)
ModelPXI-6511
Part Number778967-01
Product Type64-Channel, ±30 VDC, Sink/Source Inputs, Bank-Isolated PXI Digital I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6511

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Hybrid
Digital I/O Logic Levels24 V
Digital Input Only Channels64
Digital Input Voltage Range-30 V to 30 V
Signaling TypeSingle-Ended
Bus ConnectionPXI Hybrid
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6511 provides an industrial digital input interface for PXI systems. Its 64 single-ended sink/source inputs are arranged in eight isolated banks, with 24 V logic levels and an input voltage range of -30 V to 30 V.

Software-selectable digital input filters help reject glitches and spikes and provide debouncing for digital switches and relays. The module uses a PXI Hybrid bus connection and a SCSI-type front connection.

  • 64 digital input-only channels with sink/source inputs.
  • Eight banks of isolated channels.
  • Digital input voltage range of -30 V to 30 V.
  • Software-selectable digital input filtering for glitch rejection and switch or relay debouncing.
  • PXI Hybrid bus connection with a SCSI-type front connection.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Hybrid
Digital I/O Logic Levels24 V
Number of Digital Input Only Channels64
Digital Input Voltage Range-30 V to 30 V
Signaling TypeSingle-Ended
Bus ConnectionPXI Hybrid
Front Connection TypeSCSI Type
Supported Hardware PlatformPXI
Module Width1
NI part numbers778967-01
