Home / Shop / PXI-6509

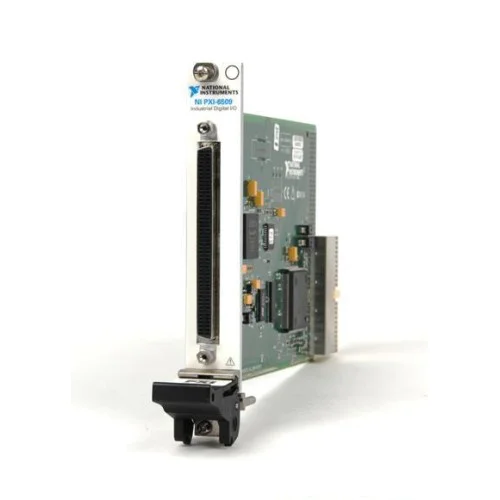

National Instruments PXI-6509 product image 1
National Instruments PXI-6509 product image 1 additional viewNational Instruments PXI-6509 product image 1 additional viewNational Instruments PXI-6509 product image 1 additional view
4 images: additional views below.Click to enlarge
National Instruments · PXI

PXI-6509

The National Instruments PXI-6509 provides 96 TTL/CMOS digital I/O channels for PXI systems.

ManufacturerNational Instruments
ModelPXI-6509
Product TypeDigital I/O module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6509

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels96 digital I/O
LogicTTL/CMOS
Connector100-pin female SCSI
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The module combines digital I/O with programmable power-up states, input filtering, change detection, and a watchdog timer.

  • Programmable power-up states.
  • Digital input filtering and change detection.
  • Watchdog-controlled output states.
Verified specifications

Technical data

Verified product specifications.

Digital I/O channels96 channels
Signal compatibilityTTL/CMOS, single-ended GND referenced
I/O connector100-pin female 0.050 series SCSI
Output currentSource: 24; sink: 24; total per port must not exceed 100 mA
Default power-on stateHigh-impedance input
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Platform

PXI-6509

Digital I/O module

Compatibility

NI's cable and accessory guide lists the SH100M-100M Flex shielded cable with the SCB-100A terminal block for the 6509.

Confirm chassis slot suitability and software support before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI/PXI/PCIe-6509 User Guide and SpecificationsUser Guide And Specifications · docs-be.ni.com
Open →
PXI-6509 Dimensional DrawingsDimensional Drawings And CAD Resources · ni.com
Open →
NI 650x/651x/652x Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which driver does the PXI-6509 use?

NI documents NI-DAQmx 7.1 or later. Verify the chosen release against your operating system.

Which shielded connection accessories does NI list?

NI lists the SH100M-100M Flex cable and SCB-100A terminal block for the 6509. The cable was formerly named SH100-100F.
