PXI-5922
1 image: Click to enlarge
National Instruments · PXI

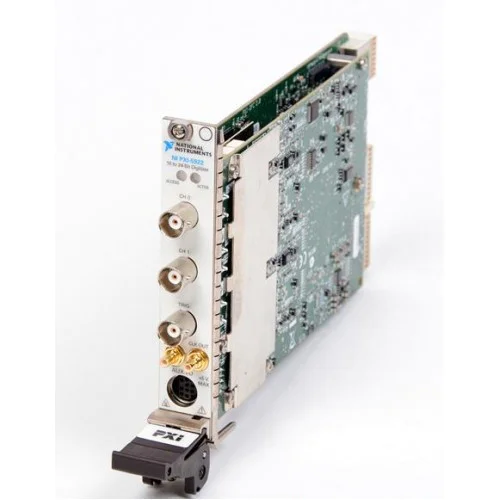

PXI-5922

The NI PXI-5922 is a two-channel flexible-resolution PXI digitizer. Its resolution varies with acquisition rate, from 24 bits at 500 kS/s to 16 bits at 15 MS/s.

ManufacturerNational Instruments
ModelPXI-5922
Part Number779153-01 · 779153-02
Product TypeFlexible-resolution digitizer / oscilloscope
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5922

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputsTwo simultaneously sampling channels
Resolution24 bits at 500 kS/s; 16 bits at 15 MS/s
Input ranges±1 V and ±5 V
Input impedanceSoftware-selectable 50 Ω or 1 MΩ
