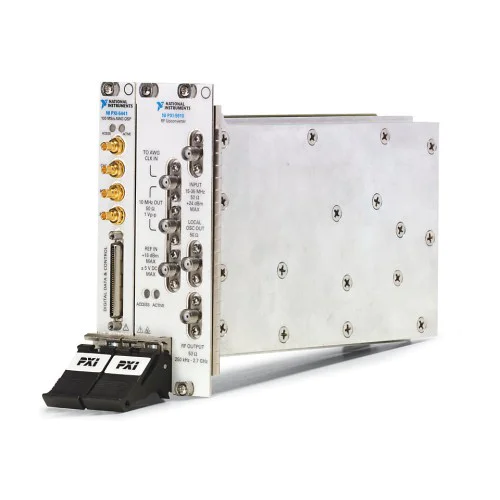

The NI PXI-5671 is a PXI RF vector signal generator covering 250 kHz to 2.7 GHz with 20 MHz instantaneous bandwidth. NI lists the complete instrument as occupying three PXI slots.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This is a multi-module RF instrument. NI identifies the PXI-5441 as the PXI-5671 submodule that exports and receives PXI backplane trigger signals. Software support must be checked against the specific NI-RFSG release used by the host system.
Verified product specifications.
| RF frequency range | 250 kHz to 2.7 GHz |
|---|---|
| Instantaneous bandwidth | 20 MHz |
| Modulation capability | Vector modulation |
| PXI slots occupied | 3 slots |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
Three-slot RF vector signal generator
PXI-5441
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI specifies a frequency range of 250 kHz to 2.7 GHz and an instantaneous bandwidth of 20 MHz.
The complete PXI-5671 instrument occupies three PXI slots.
NI identifies the PXI-5441 as the trigger-source submodule for importing and exporting PXI backplane trigger signals in the PXI-5671.
Yes. The NI-RFSG 20.5.4 readme explicitly lists the PXI-5671 as supported by the driver and Soft Front Panel. Check the readme for the release you intend to use for operating-system and development-environment requirements.
