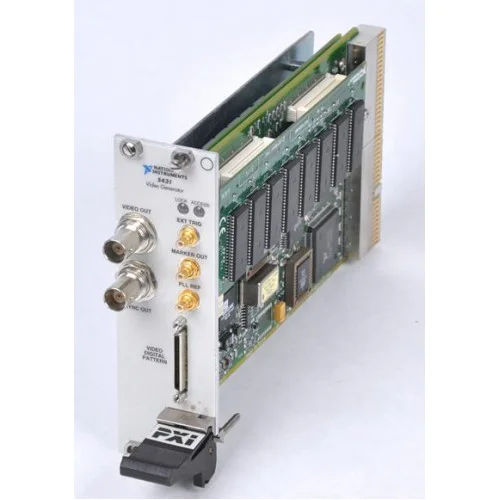

The National Instruments PXI-5431 is a single-channel, 12-bit PXI video waveform generator with 40 MS/s arbitrary waveform generation.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-5431 supports arbitrary waveforms and NTSC, PAL, and SECAM video generation.
Software support is version-specific. NI-FGEN 15.0 lists the PXI-5431 as supported under Windows XP, but not Windows Vista, 7, 8.0, or 8.1.
Verified product specifications.
| Analog output channels | 1 channel |
|---|---|
| Analog output resolution | 12 bits |
| Arbitrary waveform sample rate | 40 MS/s |
| NTSC/PAL-M sample rate | 40.02797 MS/s |
| DDS accumulator | 32 bits |
| Arbitrary waveform memory | 8,000,000 16-bit samples |
| Voltage output range | ±5 V into 50 Ω; ±10 V into high impedance |
| SYNC duty cycle | 20–80, software controllable % |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Instrument platform
Video waveform generator
NI-FGEN 17.1 lists no PXI-5431 support under Windows 7, 8.1, or 10, in either 32-bit or 64-bit editions.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies the PXI-5431 as a video waveform generator and the PXI-5411 as a high-speed arbitrary waveform generator.
No. Its hardware support table marks the PXI/PCI-5431 unsupported on both 32-bit and 64-bit Windows 10.
