PXI-5153

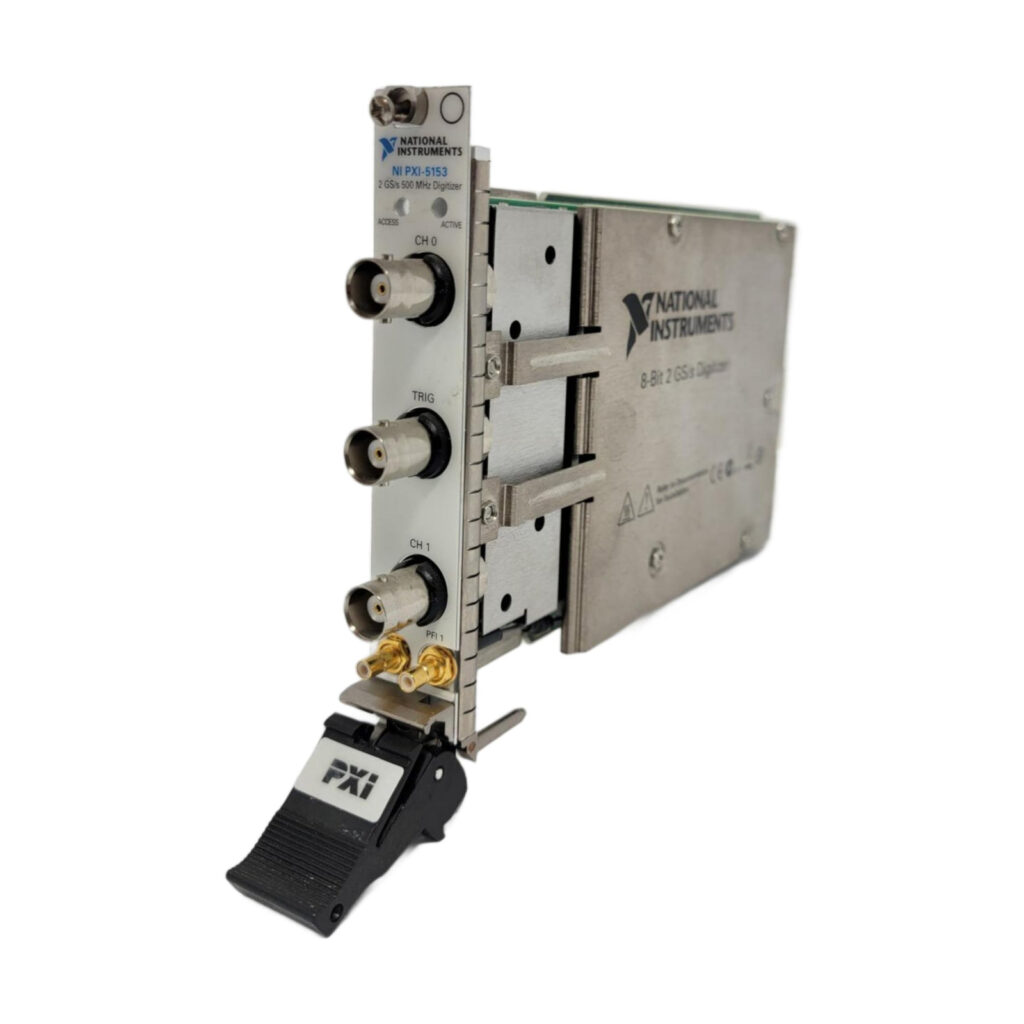

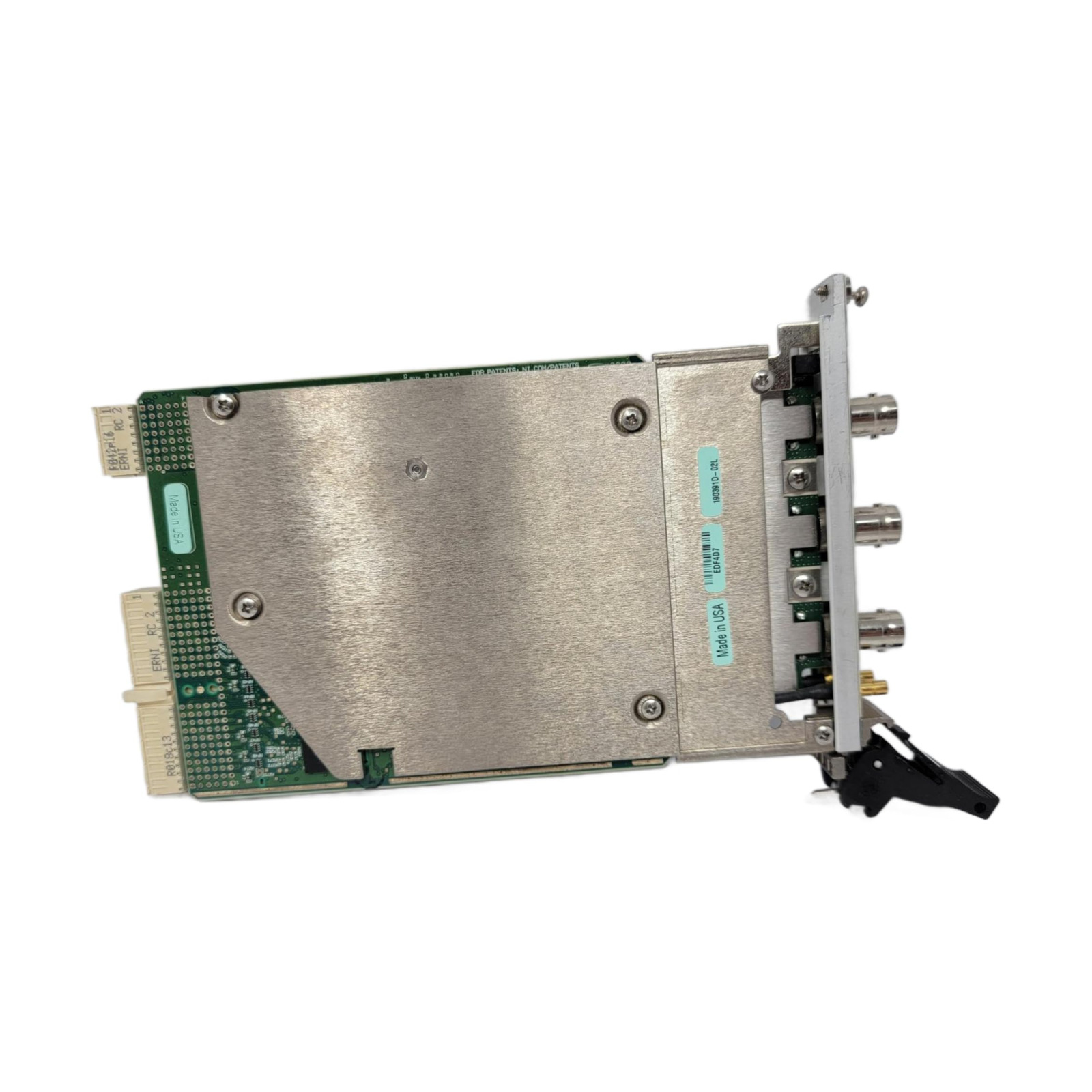

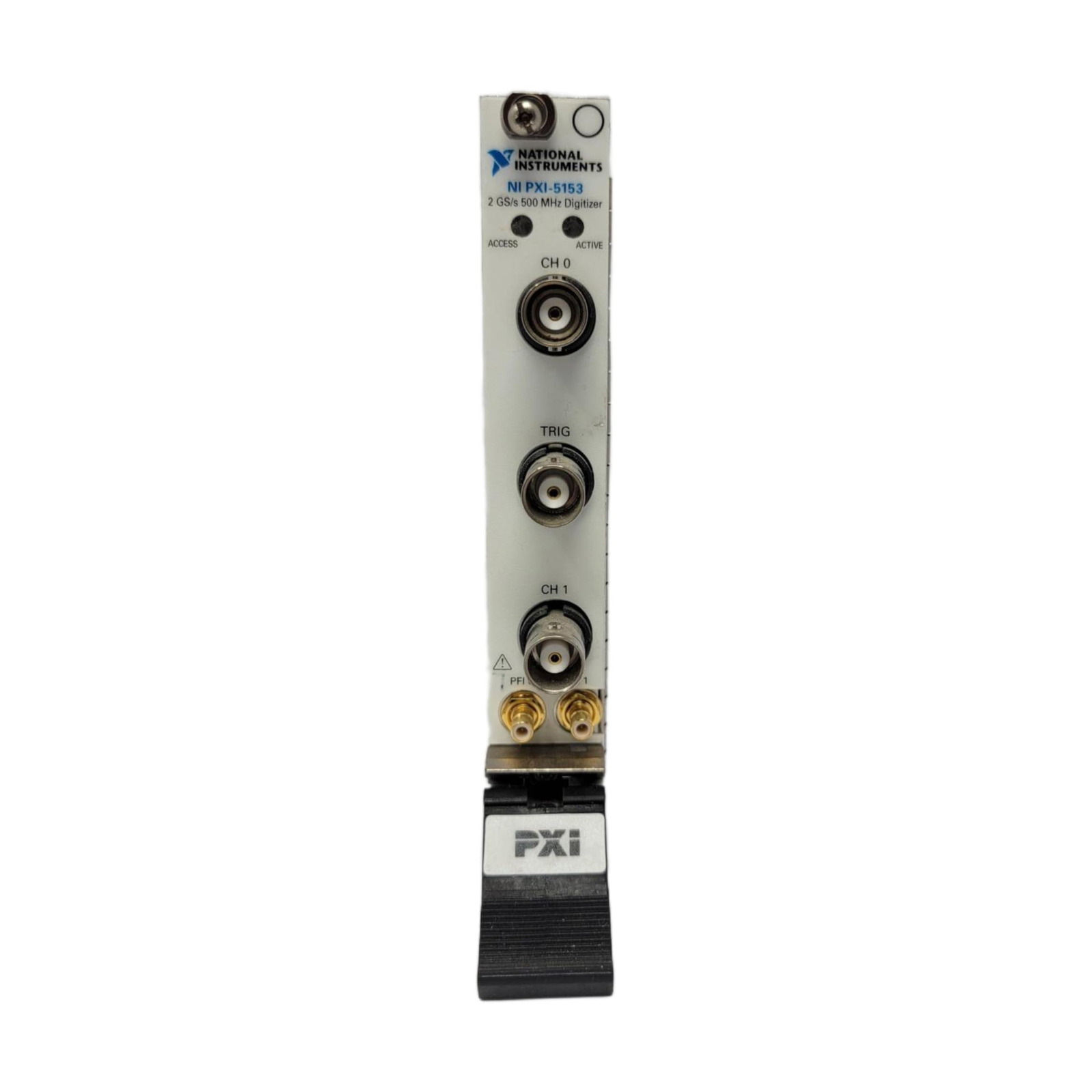

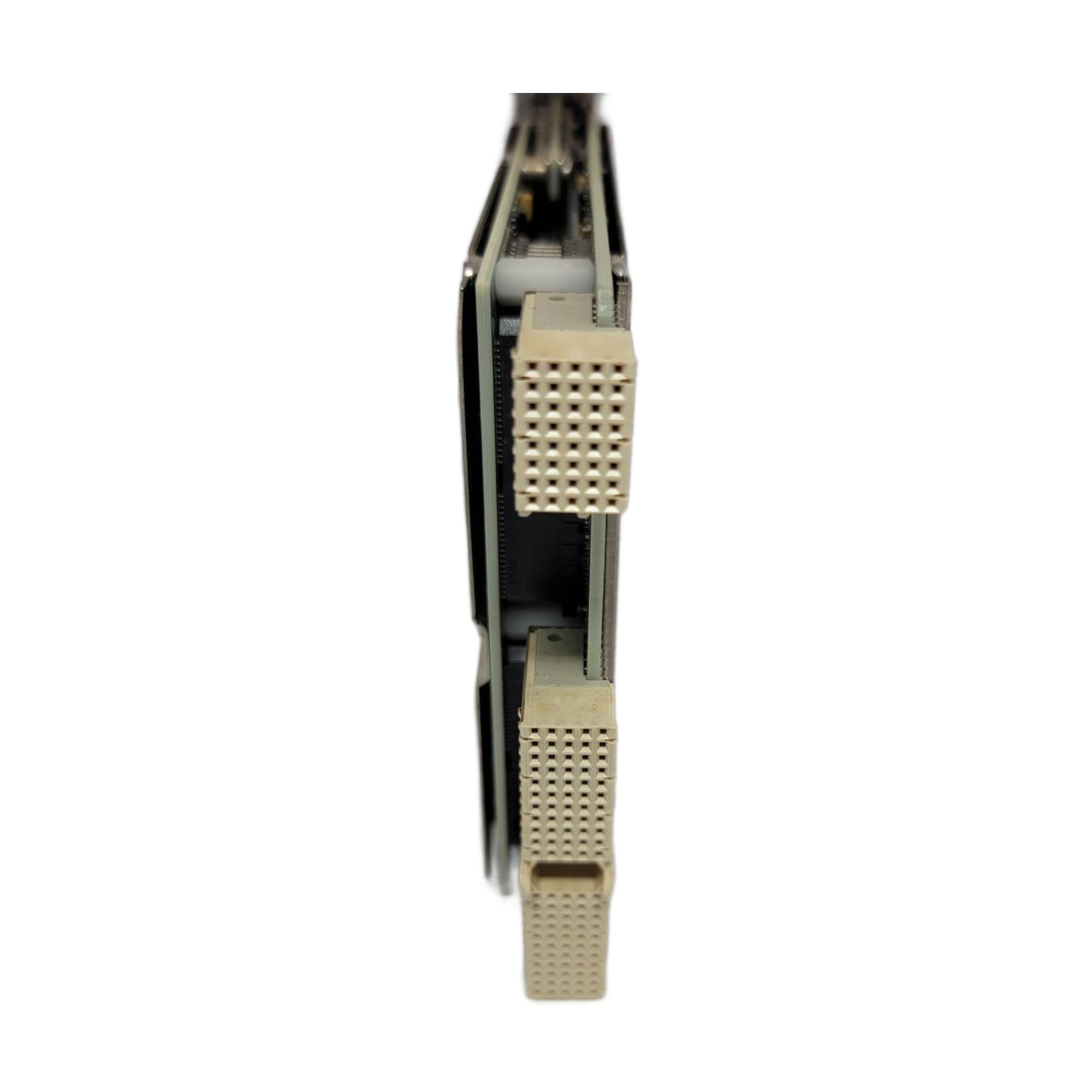

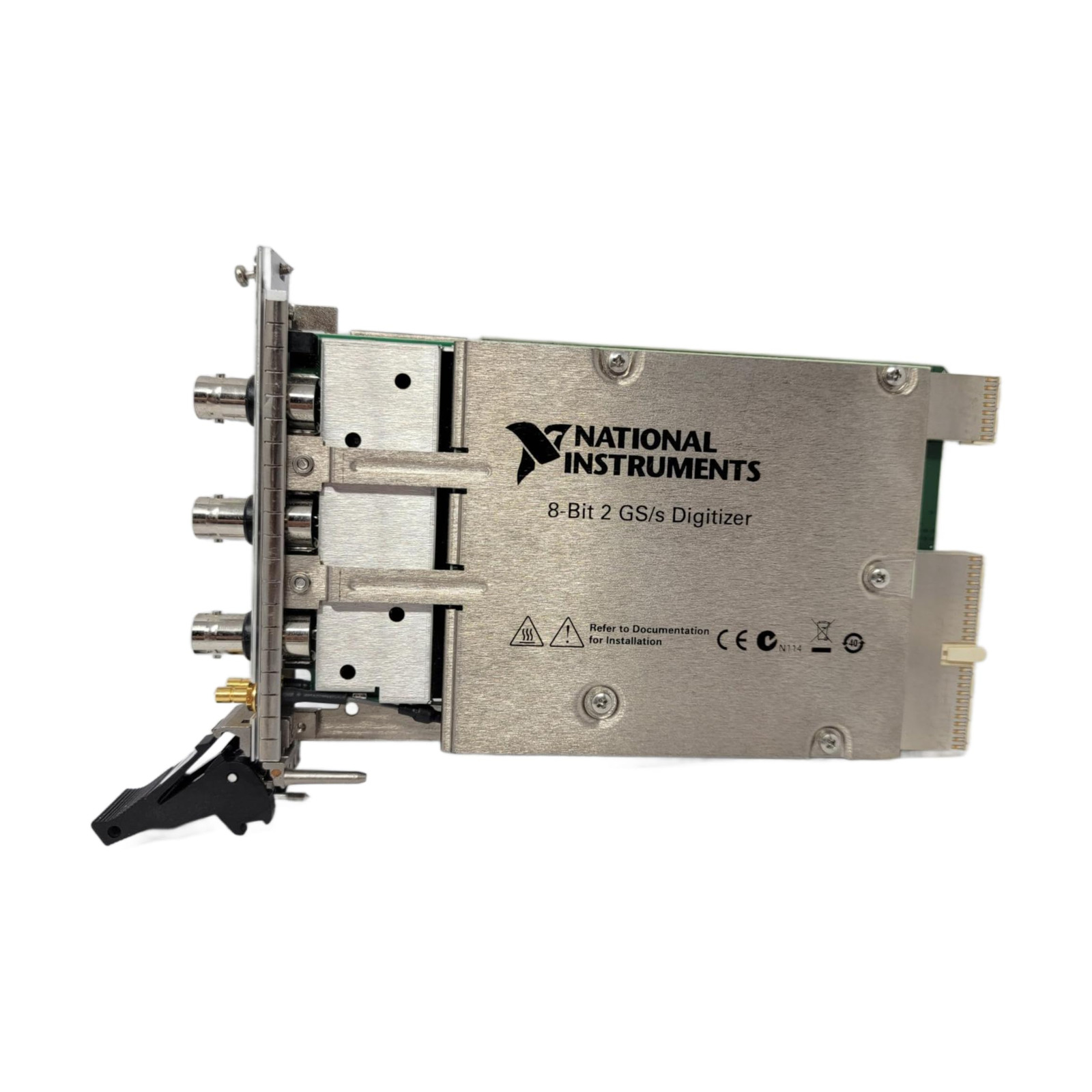

The NI PXI-5153 is a two-channel PXI oscilloscope with 500 MHz maximum bandwidth, a 2 GS/s maximum sample rate and 8-bit resolution. Listed memory configurations range from 8 MB to 256 MB per channel, depending on the part number.

ManufacturerNI (National Instruments)
ModelPXI-5153
Part Number780317-01 · 780317-02
Product Type500 MHz, 2 GS/s, 8-Bit PXI Oscilloscope
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5153

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Hybrid
Analog Input Impedance50 Ohm
Oscilloscope Maximum Bandwidth500 MHz
Voltage Input Channels2
Maximum Sample Rate2 GS/s
Analog Input Voltage Range-2.5 V to 2.5 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-5153 brings two-channel oscilloscope acquisition to the PXI platform. It combines 500 MHz maximum bandwidth and a 2 GS/s maximum sample rate with 8-bit analog input resolution and a PXI Hybrid bus connection.

The analog inputs provide 50 Ohm impedance, AC/DC coupling and a listed voltage range of -2.5 V to 2.5 V. Memory depends on the hardware configuration: 780317-01 provides 8 MB per channel, 780317-02 provides 64 MB per channel and 780317-03 provides 256 MB per channel. Confirm the part number when selecting a memory configuration.

  • 500 MHz maximum bandwidth and 2 GS/s maximum sample rate.
  • Two voltage input channels with 8-bit analog input resolution.
  • 50 Ohm analog inputs with AC/DC coupling and a listed -2.5 V to 2.5 V input range.
  • Three listed memory configurations: 8 MB, 64 MB or 256 MB per channel.
  • Enclosed PXI instrument with a PXI Hybrid bus connection.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Hybrid
Analog Input Impedance50 Ohm
Oscilloscope Maximum Bandwidth500 MHz
Number of Voltage Input Channels2
Maximum Sample Rate2 GS/s
Analog Input Voltage Range-2.5 V to 2.5 V
Analog Input Resolution8 bits
CableSense™No
Supported Hardware PlatformPXI
ReconfigurableNo
Supports Peer To Peer StreamingNo
Analog Input CouplingAC/DC
EnclosedYes
Onboard Digital DownconverterNo
NI part numbers780317-01, 780317-02, 780317-03
