PXI-5142

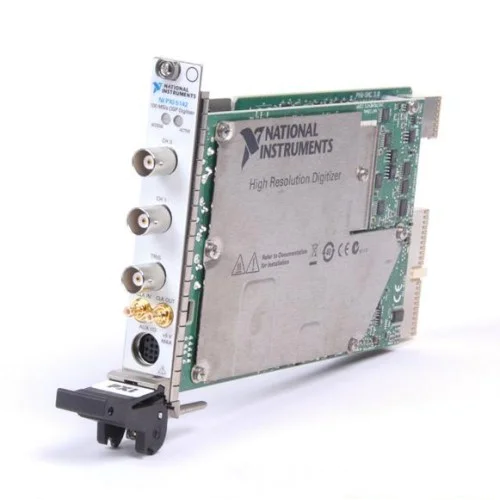

National Instruments PCI-5142 / PXI-5142 14-Bit 100 MS/s Digitizer
Features

• 100 MS/s Real-Time Sample Rate, Up To 2.0 GS/s Equivalent-Time Sample Rate
• 14-Bit Resolution on Two Simultaneously Sampled Channels
• 100 MHz Analog Bandwidth with Noise and Antialias Filters
• Quadrature Digital Downconversion (DDC) with Up To 40 MHz IF Bandwidth
• Baseband I/Q Decimation with Alias Protection
• General-Purpose Alias-Protected Decimation for All Sample Rates
• 64 or 256 MB of memory per channel

The National Instruments PCI-5142 and PXI-5142 are 100 MS/s digitizers with onboard signal processing (OSP). OSP functions include quadrature digital downconversion (DDC), real digital downconversion, and antialiasing filtering for baseband I/Q decimation and general-purpose applications. NI 5142 devices are ideal for communications applications, but they are also suited for a wide variety of applications in automotive, scientific research, military/aerospace, and consumer electronics. With the large dynamic range, software-selectable 50 O or 1 MO input, ranges from 200 mV to 20 V, and the ability to acquire more than a half million waveforms in onboard memory, an NI 5142 is ideal for both time- and frequency-domain analysis.
Part Numbers: 195003E-01L, 779587-01
