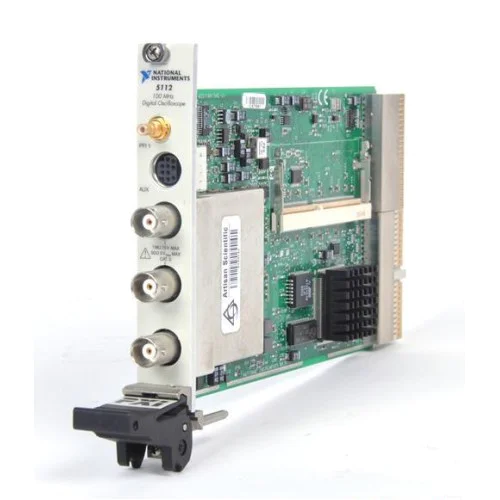

National Instruments PXI-5112 product image 1

National Instruments PXI-5112 product image 1 additional view

4 images: additional views below.Click to enlarge

National Instruments · PXI

PXI-5112

The PXI-5112 is a two-channel, 8-bit PXI digitizer with 100 MHz bandwidth.

ManufacturerNational Instruments

ModelPXI-5112

Product TypeDigitizer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5112

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2, simultaneously sampled

Resolution8 bits

Real-time sampling100 MS/s maximum

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Real-time acquisition supports transient and repetitive signals; random interleaved sampling (RIS) supports repetitive signals only.

Software-selectable AC/DC coupling.
Selectable 50 Ω or 1 MΩ input impedance.
Edge, hysteresis, window and digital triggering.

Verified specifications

Technical data

Verified product specifications.

Bandwidth, −3 dB	100 maximum MHz
Maximum RIS rate	2.5; repetitive signals only GS/s
Onboard memory	16 or 32 per channel; option-dependent MB
Vertical ranges	±25 mV to ±25 V
Analog input connectors	BNC female

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Platform

PXI-5112

Digitizer

Confirm the installed memory option before system integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI/PCI-5112 SpecificationsSpecifications PDF · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is 2.5 GS/s the real-time sampling rate?

No. Real-time sampling reaches 100 MS/s; 2.5 GS/s requires RIS and repetitive signals.
