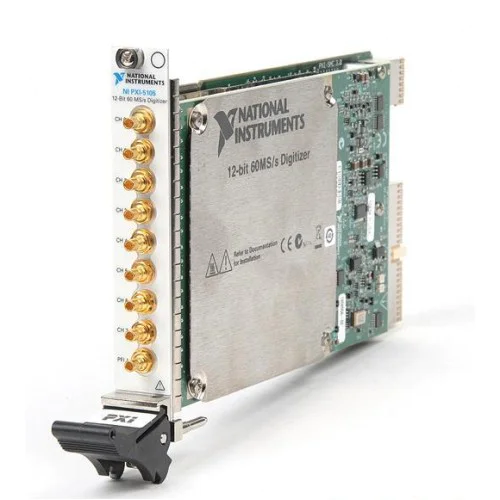

The NI PXI-5105 is an eight-channel PXI oscilloscope with 12-bit resolution and up to 60 MS/s sampling.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-5105 fits modular, high-channel-count measurement systems. NI identifies this model as an eight-channel instrument with 60 MHz maximum bandwidth.
NI-SCOPE provides programmatic acquisition and interactive waveform control. Installation requires a supported chassis and controller; NI's getting-started guide covers hardware installation and configuration in Measurement & Automation Explorer.
Verified product specifications.
| Analog input channels | 8, simultaneously sampled |
|---|---|
| ADC resolution | 12 bits |
| Maximum sampling rate | 60 MS/s |
| Analog bandwidth | 60 maximum; 50 mV range: 55 at 50 Ω, 35 at 1 MΩ MHz |
| Full-scale input ranges | 0.05, 0.2, 1, 6; 30 at 1 MΩ only Vpp |
| Bandwidth-limiting filter | 24 MHz |
| Onboard memory options | 16, 128, or 512; shared across enabled channels MB |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
Oscilloscope module
NI-SCOPE
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI-SCOPE supports programmatic acquisition and interactive control through its soft front panel. MAX provides hardware configuration.
No. The model offers 16, 128, and 512 MB options, but this unit's configuration requires confirmation.
CH 0 through CH 7 use SMB jacks. PFI 1 also uses an SMB jack.
