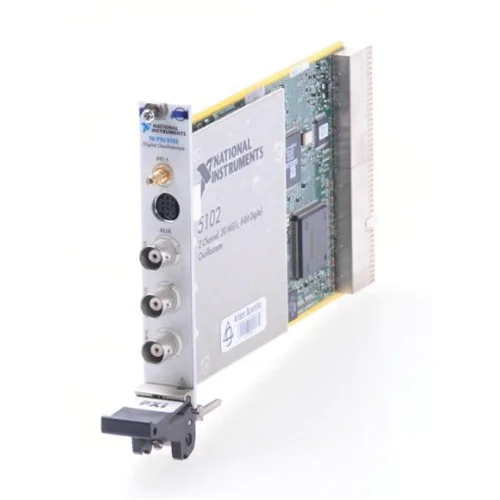

The NI PXI-5102 is a dual-channel, 8-bit PXI digitizer with 15 MHz bandwidth and 20 MS/s real-time sampling per channel.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This single-slot 3U module provides single-ended acquisition with software-selectable AC/DC coupling.
NI-SCOPE programs the PXI-5102 through a legacy Traditional NI-DAQ dependency. Check the complete driver and operating-system combination before integration; NI does not support this model on 64-bit operating systems.
Verified product specifications.
| Analog inputs | 2 single-ended, simultaneous |
|---|---|
| ADC resolution | 8 bits |
| Maximum real-time sample rate | 20 per channel MS/s |
| Small-signal bandwidth | 15 typical, −3 dB MHz |
| Input ranges without attenuation | ±50 mV, ±0.25 V, ±1 V, ±5 V |
| Input impedance | 1 MΩ ±1% parallel with 25 pF ±10 pF |
| Onboard FIFO | 663000 per channel samples |
| Maximum host waveform buffer | Up to 16 million samples/channel via bus mastering; host-memory dependent |
| Maximum RIS sample rate | 1 GS/s |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module interface
Digitizer
NI-SCOPE with Traditional NI-DAQ dependency
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies the PXI-5102 as unsupported on 64-bit operating systems because its driver depends on Traditional NI-DAQ. NI documents 32-bit support; verify the specific NI-SCOPE release and its dependencies.
No. Real-time sampling reaches 20 MS/s per channel; 1 GS/s applies to random-interleaved sampling (RIS).
