PXI-4498

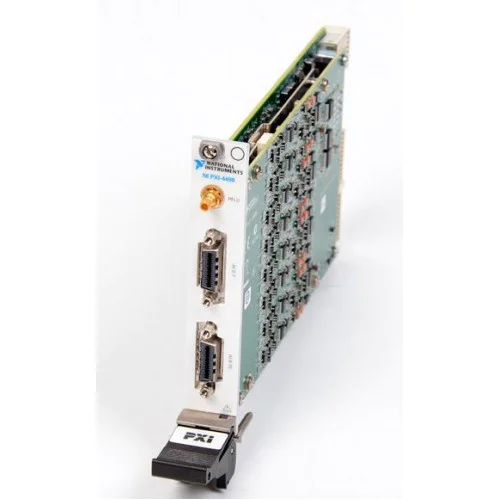

1 image: Click to enlarge
National Instruments · PXI

PXI-4498

The NI PXI-4498 is a 16-input PXI sound and vibration module with simultaneous 24-bit acquisition at up to 204.8 kS/s per channel. It includes IEPE signal conditioning and TEDS sensor support.

ManufacturerNational Instruments
ModelPXI-4498
Part Number779747-01
Product TypeSound and vibration data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4498

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16, simultaneously sampled
Resolution24-bit
Maximum sample rate204.8 kS/s per channel
Input gains0, 10, 20, 30 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for high-channel-count acoustic and vibration measurements, the PXI-4498 works with microphones, accelerometers, and other dynamic transducers. Its built-in antialiasing filters track the selected sampling rate.

Analog signals connect through InfiniBand 4x connectors, while an SMB connector provides the PFI 0 digital trigger connection. NI documents BNC connectivity through the BNC-2144 or an InfiniBand 4x-to-8-BNC cable assembly.

  • Independent software selection of gain for each input channel.
  • Per-channel IEPE excitation with sensor open- and short-circuit detection.
  • TEDS support for smart sensor setup.
  • Per-channel digital overload detection and external digital triggering.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 channels
ADC resolution24 bit
Maximum simultaneous sample rate204.8 kS/s per channel
Input gain settings0, 10, 20, 30 dB
Input ranges by gain0 dB: ±10.0 V; 10 dB: ±3.16 V; 20 dB: ±1.00 V; 30 dB: ±0.316 V
Input couplingAC only
Analog input connector typeInfiniBand 4x
Digital trigger connectorSMB, PFI 0
Dimensions excluding connectors16 × 10 cm
Weight326 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Module bus and platform

PXI-4498

Sound and vibration acquisition module

Compatibility

Supports IEPE sensor excitation and TEDS-enabled sensors.

Verify the chassis slot supports PXI; do not substitute PXIe-4498 specifications for this model.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-4498 Product PageProduct Page · ni.com
Open →
NI 449x SpecificationsSpecifications · docs-be.ni.com
Open →
NI Dynamic Signal Acquisition User ManualUser Manual · docs-be.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-4498 sample all inputs simultaneously?

Yes. All 16 inputs support simultaneous sampling at up to 204.8 kS/s per channel.

Can the PXI-4498 measure DC signals?

Its inputs are AC-coupled only; it is not a DC-coupled acquisition module.

Which manufacturer part number identifies this model?

NI lists 779747-01 for the PXI-4498.
